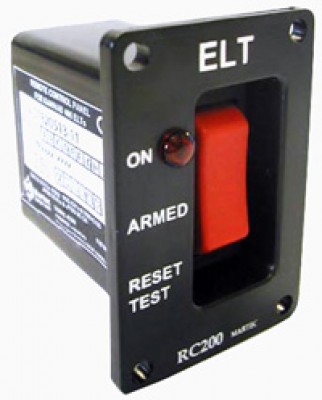

Kannad RC200 - Remote Control Panel Kit

$183.70/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-06302
MFR Model# S1820513-18

Overview

Main Features:
  • Weight: Approx 0.088 lbs (40 g)
  • Outline Dimensions: 1.3 x 1.97 x 1.69 in (33 x 50 x 43 mm)
  • 3-position red switch (ON, ARMED, TEST/RESET)
  • D-SUB 9 pin connector with threaded locking device (UNC 4-40)
  • Output to drive an external buzzer
  • Output to control an external horn or annunciator (up to 1A)
  • The Kit includes mating SUB-D9 connector for easier installation.


Applications:
  • AF- Compact, AF, AF-H, AP, AP-H
  • Straight replacement for ARTEX RCPs to ensure easy replacement of your old two frequency ELT


CAUTION: Switch is not waterproof. Cannot be installed flat.

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is there an internal battery in the Kannad RC200 - Remote Control Panel Kit?

Per Kannad, there is no internal battery within the Remote Control Panel RC200 Kit.
