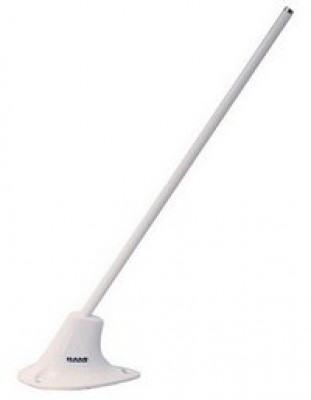

RAMI AV-300 3 Hole Footprint Antenna TSO

$347.60/Each
Price Includes GST
Part# 11-07995
MFR Model# AV-300
DescriptionPart Number
RAMI AV-300 3 HOLE FOOTPRINT ANTENNA11-07995

Overview

This antenna is intended for use with an ELT (Emergency Locator Transmitter) for general aviation. It is a passive three frequency fiberglass rod whip antenna, designed for low speed aircraft (up to 350 knots).

  • Application: Airbone ELT
  • Frequency: 121.5, 243 & 406 MHz
  • Impedance: 50 ohms nominal
  • VSWR: 2.0:1 max at 121.5 MHz,2.0:1 max at 243 MHz, 1.5:1 Max. at 406 MHz
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • RF Power Capacity: 10 Watts CW
  • Connector: BNC Female
  • Max Weight: 9 oz max
  • Max Height: 14.00 Inches max

Reviews

Excellent device. Used with Kannad ELT

Philip C
October 7, 2020
