RAMI AV-74 Dme Transponder Ant TSO
MFR Model# AV-74
Overview

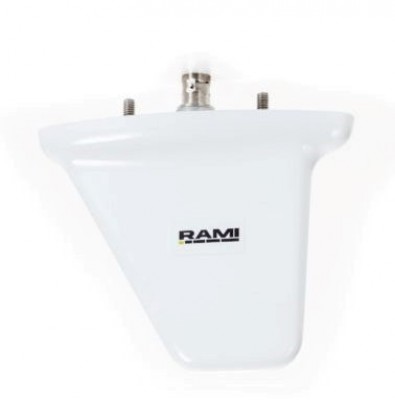

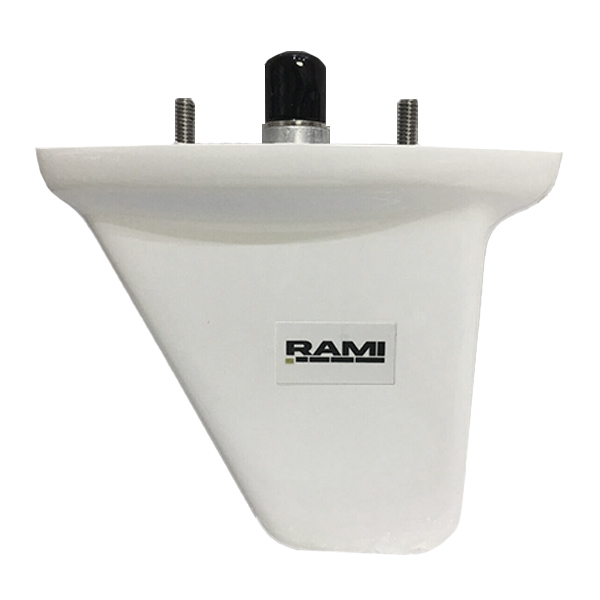

The AV-74 (.425 Stud Length) & the AV-74-1 (.800 Stud Length) are a broadband blade type antenna for transponders or DME application. The antenna housing is constructed of an acrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.09 lbs @ 250 mph. This antenna is a direct replacement for the CI-105.
|
Documents
Reviews
Arrived in good condition. Install wont come until later this fall.
Verified Purchase
RAMI AV-74 Dme Transponder Ant TSO
These parts are easy to fit up. Thanks!
Verified Purchase
RAMI AV-74 Dme Transponder Ant TSO
Great easy to install antenna….. use 90 degree BNC connectors
Verified Purchase
RAMI AV-74 Dme Transponder Ant TSO
Nice antenna for the money.
Verified Purchase
RAMI AV-74 Dme Transponder Ant TSO
Great antenna.
Verified Purchase
RAMI AV-74 Dme Transponder Ant TSO
Called Rami tech support for advice on mounting location and they were awesome. I like this also comes with a gasket where the comant does not. Awesome antenna.
Verified Purchase
RAMI AV-74 Dme Transponder Ant TSO
OK
Verified Purchase
RAMI AV-74 Dme Transponder Ant TSO
Fast delivery, easy installation and economically priced.
provided as advertised , shipped quickly , came with nuts, lock washers and a gasket.
Keep up the great service.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Please visit our webpage again and under the documents tab there is an updated pdf with mounting stud sizes and mounting details.
Both versions of the AV-74 support ADS-B. The AV-74-1 is slightly larger and is available under part number 11-13996.
This antenna may work but it has not been tested by Garmin for the GDL 82. Please view P/N: 11-17965 CI-105 which is the same style antenna. You can also view the installation manual for the GDL 82 for more acceptable tested antennas.
All antennas require a groundplane of some sort. In the case of a composite airframe, you must install a metal groundplane meeting the fabrication requirements set forth in ac 43.13-1b
We have a PDF version of the manual/footprint for the antenna. Please review this document to ensure the measurements.
Yes. This antenna can work with the ESG transponder.
We recommend the RG400 Coax Cable.
Yes, part # 11-05846 will work with the GNX 375.
Yes, this antenna will work with that unit.
Yes, this will work with a compatible ADS-B transponder.
