RAMI AV-12 Nav Antenna TSO
MFR Model# AV-12
| DESCRIPTION | PART NO. |
|---|---|

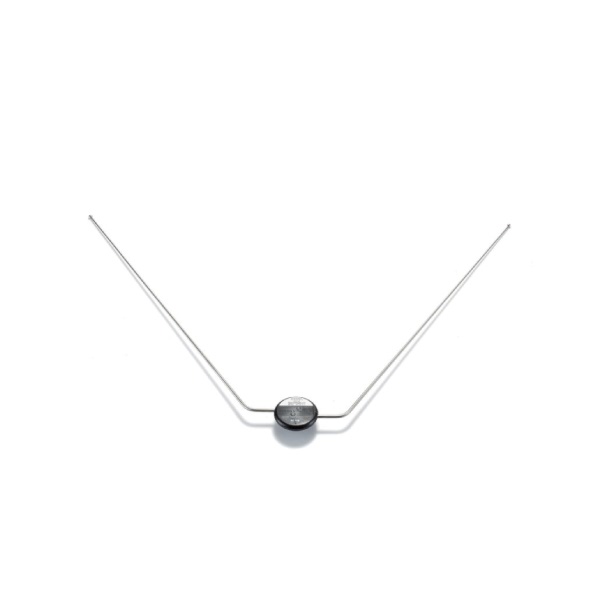

| RA MILLER ANTENNA AV-12 | 11-02368 |
Overview
|

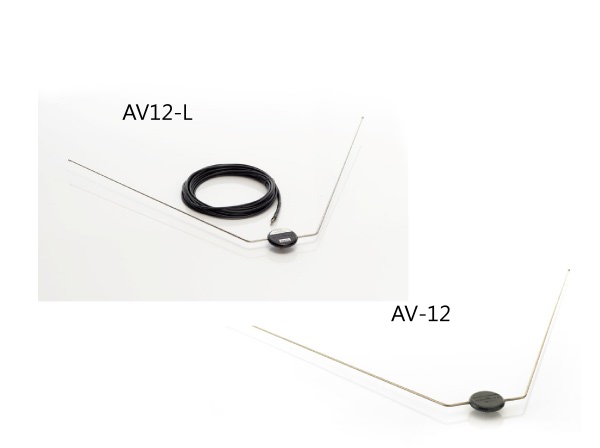

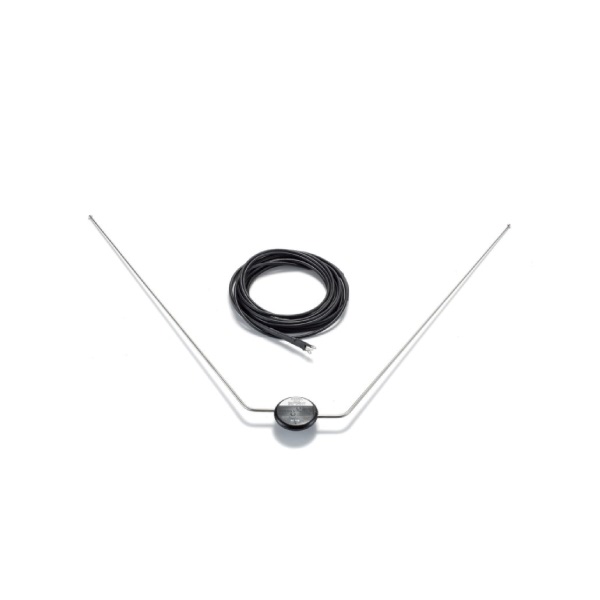

P/N AV-12L The AV-12 is a VOR/LOC receive only antenna which uses a highly efficient technique of molding the elements directly into a high-impact thermo-setting bakelite center insulator. The stainless steel elements are ground to close tolerances to provide a low profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.92 lb @ 250 mph. The AV-12L includes all of the same features as the AV-12 and a 25 ft cable with integral balun is also supplied. Order P/N 11-03992 for male BNC connector.Click here to download Outline Drawing in PDF format. |
Specifications
- Application: VOR Receive Only
- Frequency: 108 to 118 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 2.2 to 1 Maximum
- Connector: N/A
- Max Weight: 5.5 oz (14 oz with cable)
- Width Across Tips: 29-1/2"
- RF Power Capacity: Receive only
Reviews
I was looking everywhere for a direct replacement for VRP-37. This is a direct replacement. The holes arent drilled so it will fit a variety of orientations. That would have also been beneficial information. Drill the holes and go. Thank you Josh for your feedback it helped.
The listing information is incorrect. This is a VOR/Loc/Glide slope antenna. It was an exact replacement for the one in my 1978 Piper. It works fine for VOR and ILS.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The AV 12 and AV 12L are certified (TSO'd) antennas so you can install in a certified aircraft.
Yes it can but will only give you VOR NAV not VOR with glideslope.
The measurement from the top to the bottom is .5 inches.
