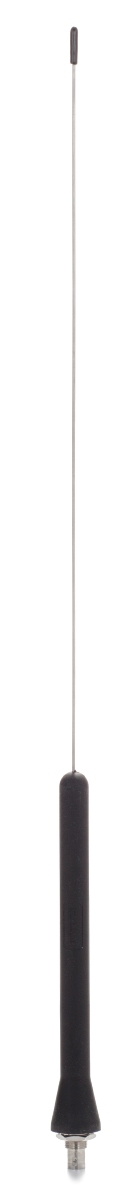

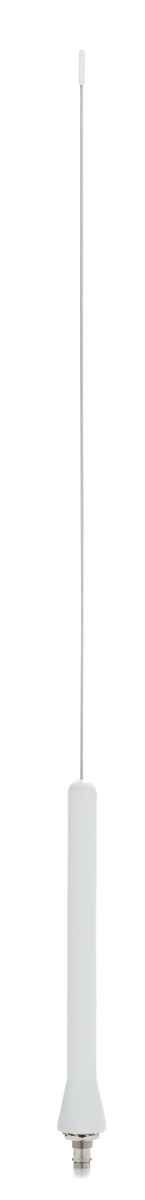

RAMI AV-200 Whip Antenna TSO

6 Reviews 13 Answered Questions
$147.12/Each
Price Includes GST
Quantity
Add to Wishlist View More In This Series →
Part# 11-12892
MFR Model# AV-200

Overview

The AV-200 ELT antenna is: Whip type, 121.5 and 406 MHz and intended for use with an ELT (Emergency Locator Transmitter) for General Aviation. It is a passive two frequency wire whip, designed for low speed aircraft (up to 250 knots).

Specifications

  • Application: Airborne ELT
  • Frequency: 121.5 & 406 MHz
  • Impedance: 50 ohms nominal
  • VSWR: 2.0:1 Max at 121.5 MHz 1.5:1 Max. at 406 MHz
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: BNC Female
  • Max Weight: 3 ounces
  • Max Height: 24 inches
  • RF Power Capacity: 10 watts CW

Reviews

Submit a Review

Nice antenna, appears well made and easy to install.

Tim W Verified Purchase

RAMI AV-200 Whip Antenna TSO
September 27, 2022

The RAMI antenna is great, please note the AV-200 coax cable connection needed is Male BNC. Depending on the connection to the ELT- most being a Male BNC, you may need to purchase replacement coax cable (BNC Male to BNC Male- keep in mind the length and Ohm requirements in your aircraft)

J-air L Verified Purchase

RAMI AV-200 Whip Antenna TSO
May 3, 2022

good product

Soframo
February 22, 2021

Top Quality product.

John Y
September 29, 2020

ok

Lester D
June 22, 2020

Great looking antenna with a lifetime warranty from RAMI. Easy install! Looks great on the Bonanza!

Christopher N
October 29, 2019

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this RAMI Whip antenna AV-200 work with a ACK model E-01?

Per RAMI: Yes, this will work with the E-01 ELT.

Q: You recommended this antenna for the Kannad AP ELT, which also transmits 243MHz - will this antenna work with 243MHz properly?

No, use the RAMI AV-300 part number 11-07995 which has all three frequencies.

Q: Can the base of this antenna be painted?

We do not recommend painting any part of the antenna.

Q: Will this RAMI Whip antenna AV-200 work with a Artex ME406 ELT?

No, ELTs are certified as kits with a specific antenna. You unfortunately cannot interchange antennas.

Q: Can the 11-14040 antenna work with a Ameri-King model AK-451?

The AV-200b will physically function with an AK-451, however, it is not on the TSO for that ELT unit.

Q: Will this RAMI AV-200 antenna work with Artex ME 406 ELT?

No, ELT's are certified as kits with specific antennas. Unfortunately you cannot interchange antennas.

Q: Is this the same Rami antenna that is supplied with the Artex 345 ELT kit (Artex PN A3-06-2892-1 RAMI Whip Ant (black)?

Yes, the Artex 345 uses this same antenna.

Q: Is this whip antenna compatible with Kannad 406AF compact?

Yes, this antenna is compatible per the installation manual.

Q: Is the Rami AV-200 on the Tso for an AK-451 ELT?

The AK-451 does not have any certification as that ELT has been discontinued.

Q: Will this RAMI AV-200 or 200B Work with ACK Model E-04 ELT ?

Please use 11-10465 for the ACK ELT.
