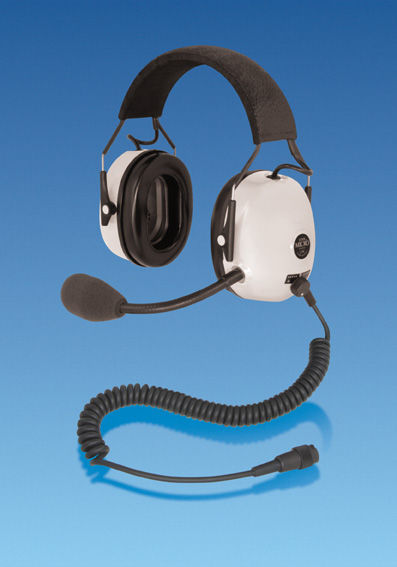

Lynx Micro System Headset
Overview
|
The Micro System headset is a new generation of headset which forms the basis for an intercom system designed specifically for use in very high noise environments where wind noise may also be a problem. Each headset contains a specially developed electret noise canceling microphone. an electronic speech processor and a rechargeable battery located in the headband. Connecting two or more headsets together forms an intercom providing communication for a minimum of fifty hours. Micro System headsets can be connected to a radio via a range of interface units and are fully compatible with all available radio transceivers. The headset is noise attenuating and provides hearing protection in noise levels up to 11OdB(A). The microphone is mounted in a rubber anti-shock holder and is protected by a foam wind shield that can be removed easily for cleaning or replacement. The headset speakers are housed in acoustically balanced enclosures which seal the headset against moisture and also allow the ear-cups to be cleaned hygienically. Each headset battery can be recharged up to one thousand times, and does not suffer from Memory effect. All Lynx headsets are fitted with Silicone Gel ear seals and are fully adjustable. Attention: Chargers are sold separately. |
Schematics

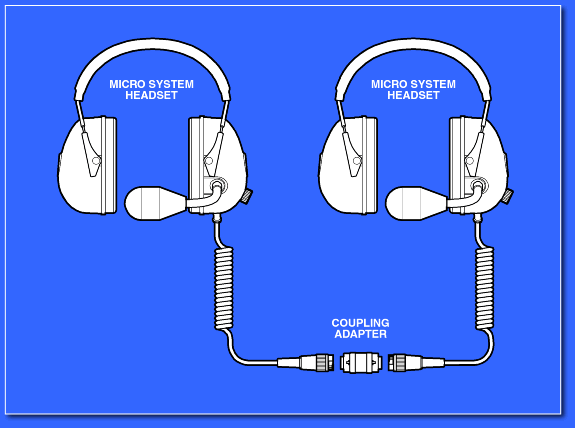

- Click here for the Dual Headset Intercom system schematic: Two Micro System headsets which connect together to form a self contained portable intercom.

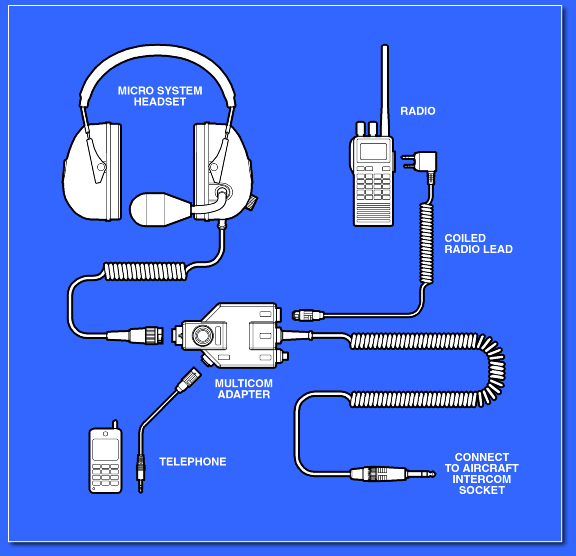

- Click here for the Ground Support Headset system schematic: A single Micro System headset and Multicom Adapter for airfield ground support applications.

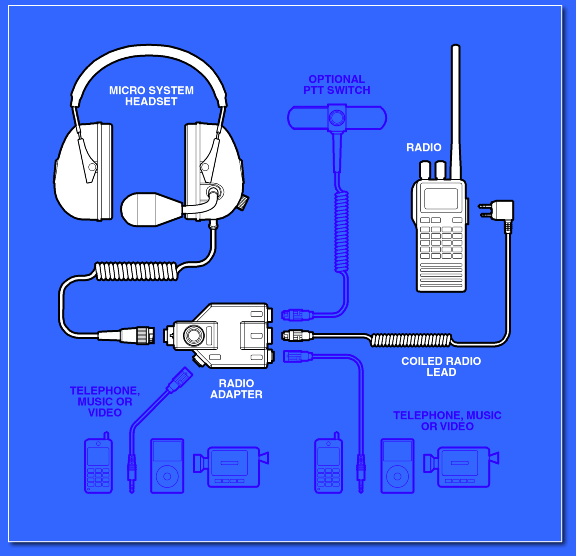

- Click here for the Single Headset with radio system schematic: A single Micro System headset and radio adapter which provide a portable radio communication system for solo applications.

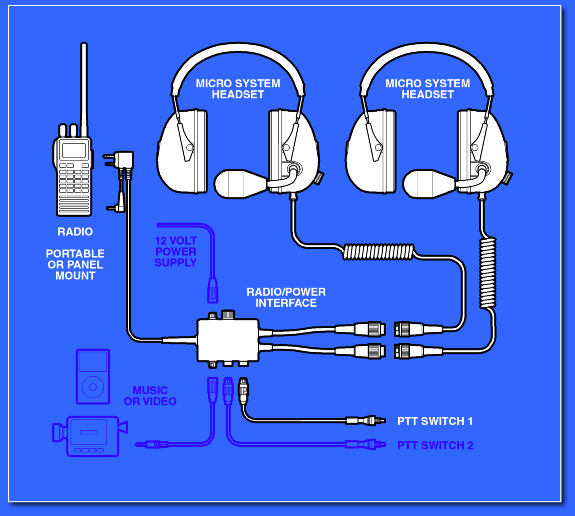

- Click here for the Dual Headsets with Radio/Power Interface system schematic: Two Micro System headsets and a radio/power interface which provide an installed intercom and radio system.

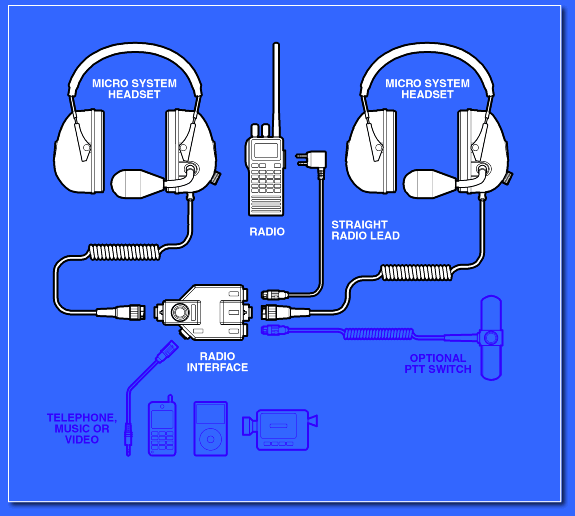

- Click here for the Dual Headsets with Radio Interface system schematic: Two Micro System headsets and a radio interface which provide a portable intercom and radio system.
Reviews
It was a Desaster Wouldn’t fit any aircraft I know and wouldn’t fit the leather helmets I had to send back
Verified Purchase
Lynx G3 Passive Micro System White Headset
I have left some feed back already. Curious if anyone these days if they even care will call me back. What do you think? I will say probably not!
Verified Purchase
Lynx Micro System Red Headset
After trying other systems and improving headsets and mics along with other improvements, I finally broke down and spent the money for a Lynx system. Although they are proud of their equipment, the quality is there. I am now able to communicate with my passenger clearly and seldom get asked to repeat over the radio. Well worth the money.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, it is.
