MGL IEFIS Challenger 10.4 Inch Touchscreen
MFR Model# IEFIS-CHALLENGR
Overview
|
The iEFIS is a comprehensive flight, engine and navigation instrument designed for Experimental and Light Sport aircraft. It is the next generation EFIS system utilizing a custom developed, pressure sensitive, sunlight readable touchscreen that can also be operated using gloves. iEFIS combines the undeniable advantages of simplified operation that a touchscreen can offer with rich traditional controls that are equally indispensable in the cockpit environment. The pressure sensitive touchscreen operates much like a tactile button preventing false activation when touching the screen in turbulent conditions. A simple but highly effective solution... As an EFIS hardware platform, the iEFIS breaks the tasks it conducts down into separate modular multi-processor units that all communicate on a reliable CAN bus network (similar to the automotive industry). This results in a robust system in which each device on the network has very specific tasks to handle. This is coupled with intense low power design methods to further maximize overall system application and reliability. The large amount of flexibility built into the base system allows the adaptation of the iEFIS to almost any mission and aircraft. The iEFIS screens can be completely edited by the user using a simple PC program to create any display the user desires. This makes the system absolutely the most customizable EFIS on the market today! Due to low system cost, the iEFIS is equally suited to light aircraft, gliders and rotorcraft, while providing enough flexibility to be utilized by multi-engine aircraft with up to 4 engines monitored, and by turbine aircraft and even spacecraft. The principle guidance during the iEFIS development was “complete, one stop, any function, any aircraft”. Flexibility

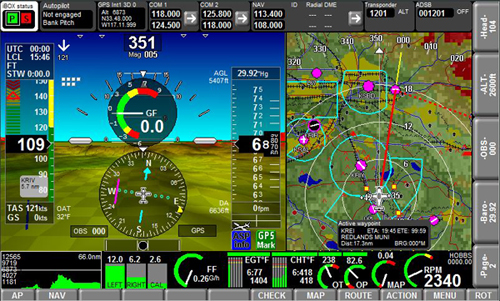

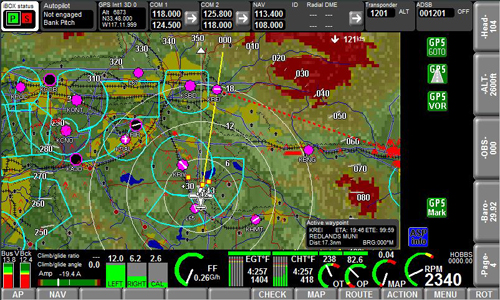

Here are some examples of the standard screens that ship with the EFIS, that show you what is possible: Examples Standard Split-Screen with PFD, Navigator and Engine/Fuel
Here are some examples of the standard screens that ship with the EFIS, that show you what is possible:

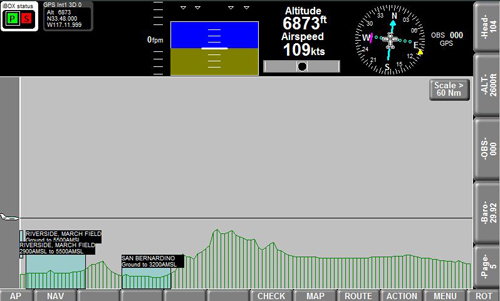

Airspace Look-Ahead

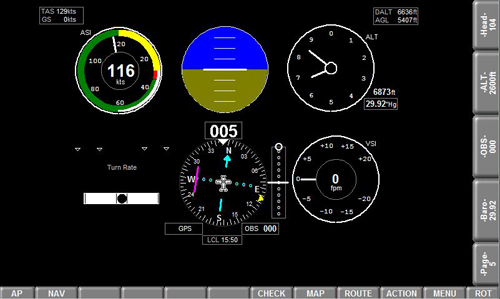

Standard ‘6-pack’ display

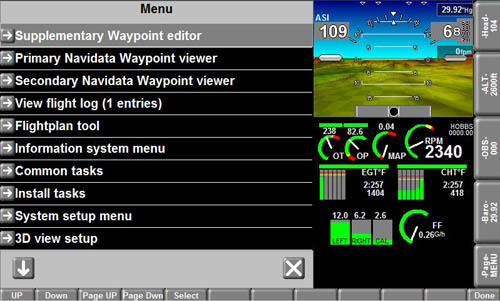

When Menu is activated, PFD and Engine info (and any other info you would like!) is still visible
|

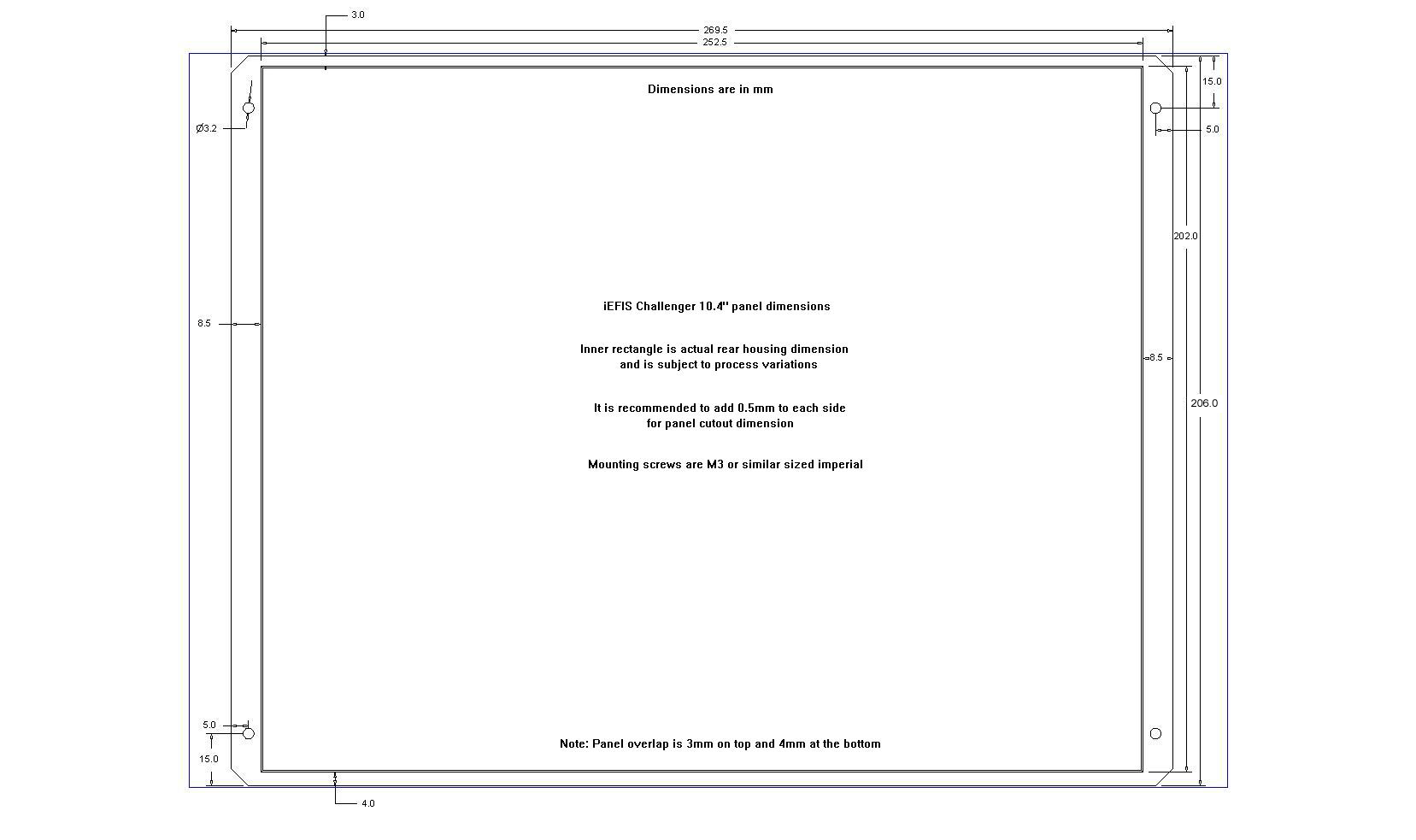

Dimensions
Click to Enlarge
In The Box
- Single iEFIS
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
For part number 11-12044 it comes with single iEFIS, LAN cable (to connect to required iBox (iBox not included)), microSD Card, nuts and bolts kit and power connector. The SP 6 and 7 as well as the RDAC and probes must be purchased separately.
The MGL iEfis Challenger 10.4 in touchscreen is 1.25 inches deep.
Please refer to the dimensions tab on this page for this information.
