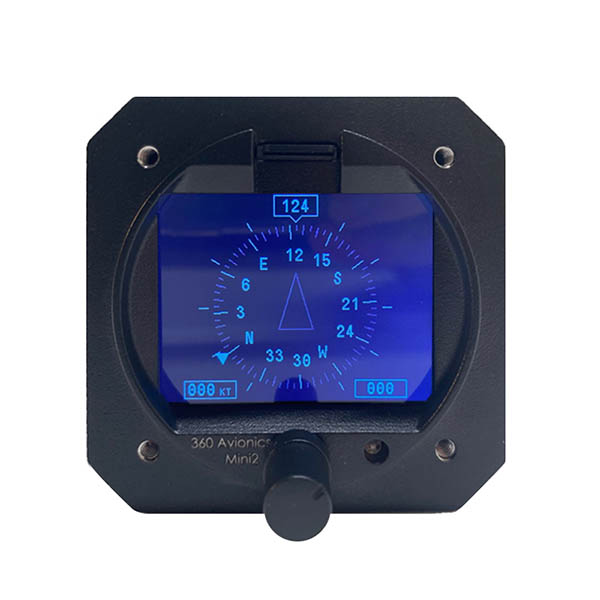

Overview

Features

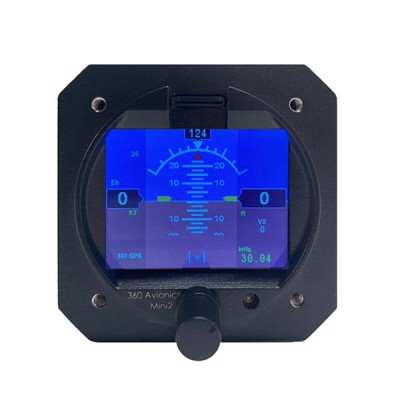

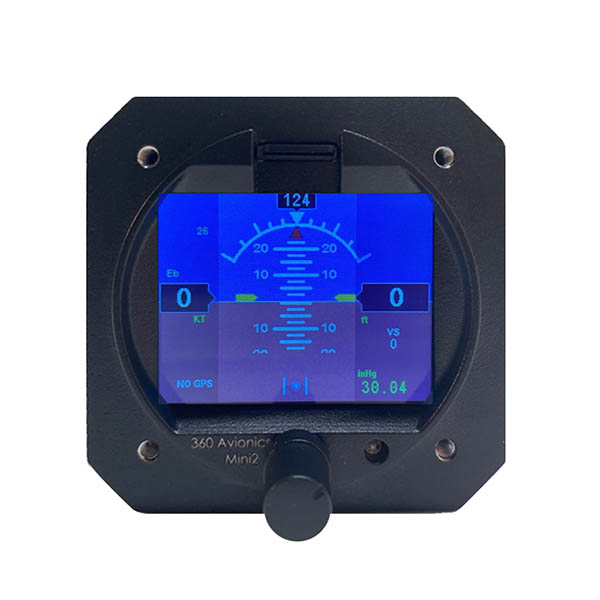

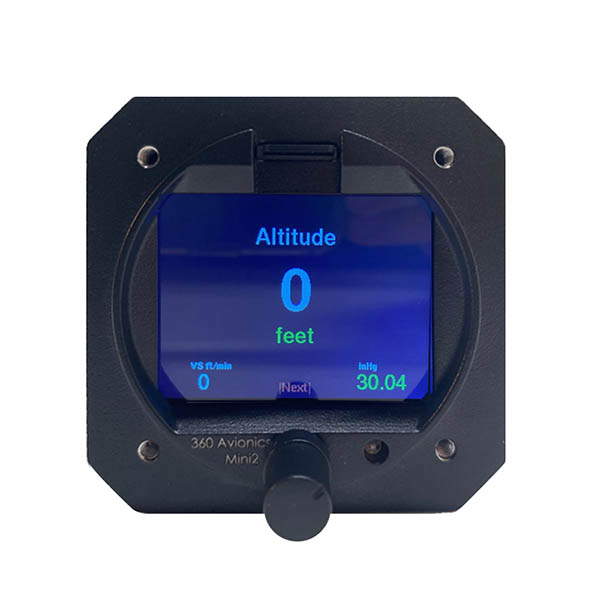

• Precise altitude pressure, airspeed, gyroscope and accelerometer sensors
• -speed vertical reference strip provides speed warnings at all times during the flight based on V-speeds pre-defined by user.
• GPS based track and ground speed formation is available on the display for additional situational awareness.
• Outside Air Temperature (OAT) sensor is optional and, if purchased, the instrument will display outside air temperature, as well as True Airspeed Speed (TAS).
• Instrument can be connected to an external compass module to provide GPS independent heading indication for these cases where GPS signal may be unavailable.
• Sunlight readable transflective technology 2.25” display is easily readable under various light conditions, including direct sunlight.
• Built-in rotary knob is used for all unit operation including easy adjustment of barometric pressure, heading bug adjustment, unit configuration via built-in settings menu. Post-flight analysis features:
• Built-in flight data recorder allows to record various flight parameters every predefined time interval. Flight data later can be exported using Mini SD Card to PC computer for further review.
• Google Earth file format for export is also available. This format allows to review complete airplane flightpath and altitude on the Google Earth maps.

Specifications

• Input voltage: +10V to +28V DC

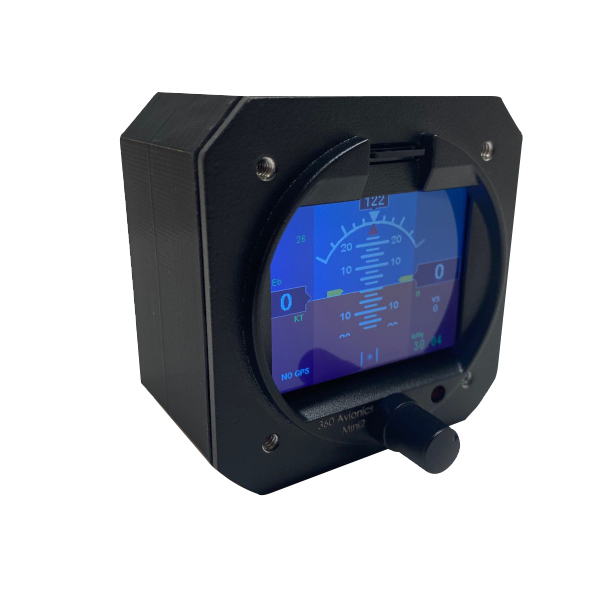

• Unit size: 68mm x 68mm x 81mm
• Weight: 150g
• Display size: 2.25” diagonal
• Display resolution: 320x240 pixels (Sun readable transflective technology)
• Receiver: GPS receiver high sensitive Ublox
• Maximum IAS: 250 Knots
• Altitude range: -1000ft to +32000ft
• Vertical speed range: 10000ft up or down
• Pitot/Roll range: 360 degrees
• SD Card: 4Gb FAT formatted (supported up to 16Gb)
• Antenna: mag mount GPS with male SMA connector
• Pitot/Static lines: 1/8”-27 NPT
• Manufacturer: 360 Avionics Corp.
