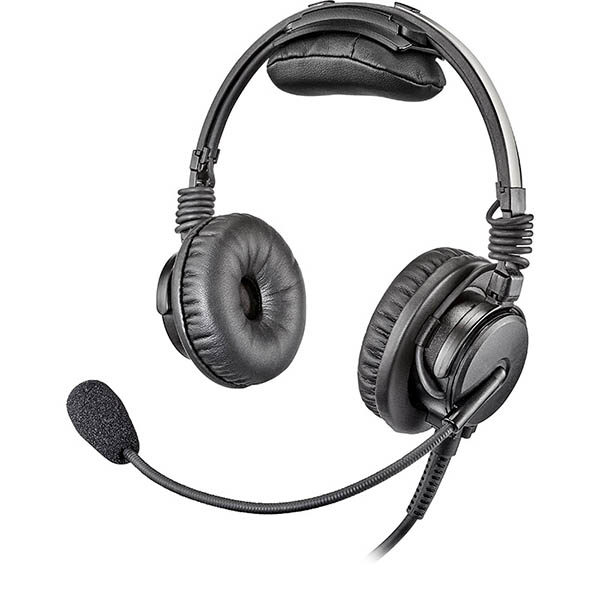

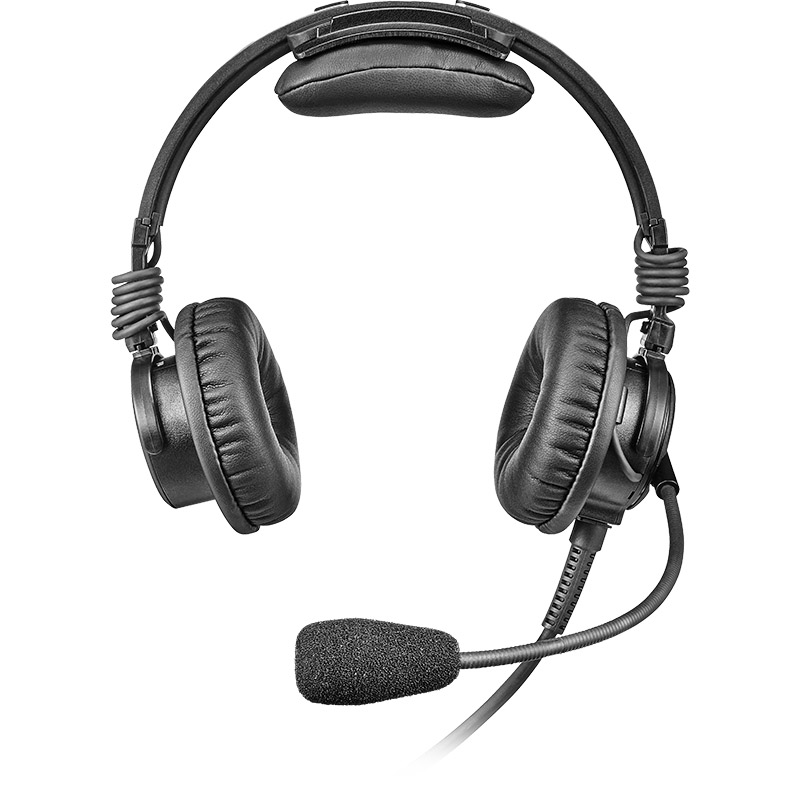

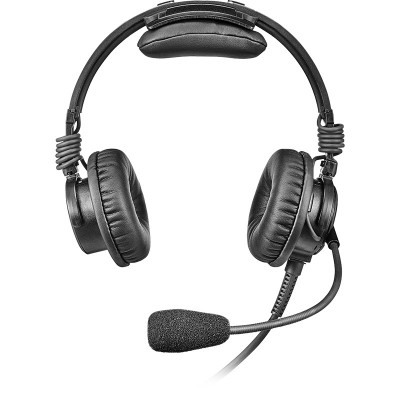

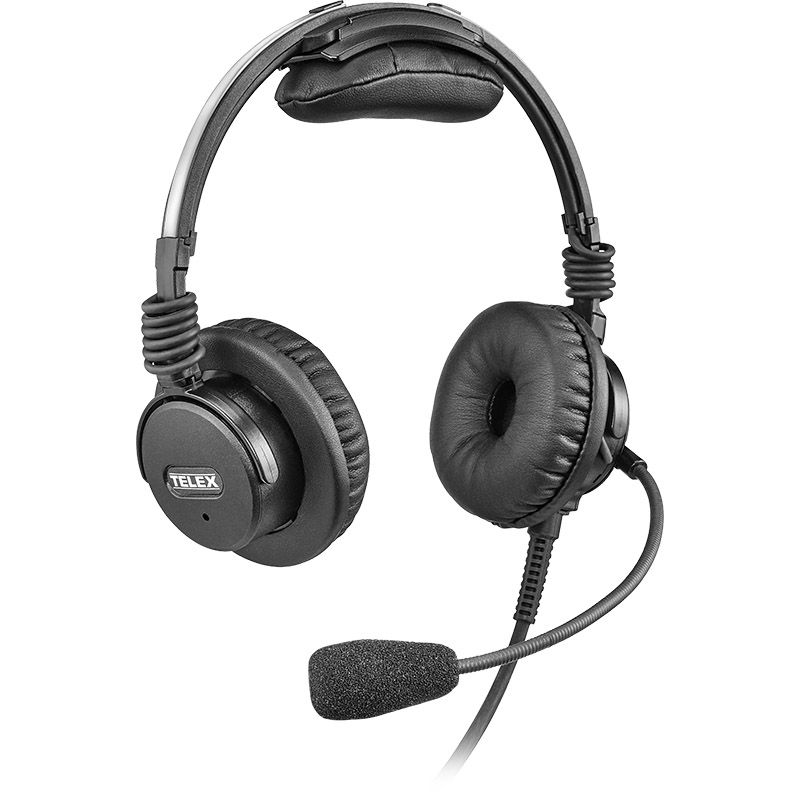

Telex Airman Aviation 7+ Double Side Passive Headset

0 Reviews 0 Answered Questions
Select Plug Style:
Dual GA PlugsAirbus 5-Pin XLR Plug
Price Includes GST
Quantity
Add to Wishlist

Overview

The Airman 7+ ultra-lightweight passive noise reduction headset from Telex is a non-ANR version of the Airman 8+, designed for commercial and business pilots. It offers enhanced passive noise reduction, reducing fatigue-inducing background noise while keeping engines and conversations audible for a less isolated cockpit experience.

The Airman 7+ features large ear cushions, a durable stainless steel headband, and a flexible boom-mounted microphone for clear communication. With FAA and EASA compliance, it ensures exceptional comfort, sound quality, and reliability. Available with 2PJ or XLR5 plugs.

Features

  • On-the-ear design with large soft, pliable leatherette ear cushions and headband pads.
  • Flexible boom-mounted, noise-reducing microphone that can be positioned for right or left-side use.
  • Stainless steel headband and pivot points for superior durability.
  • FAA TSO C-139a approved

Specifications

Headphones:
  • Type: Dynamic
  • Nominal Impedance (Ω): 600 Ω ±20% @ 1 kHz
  • Frequency Response (Hz): 315 Hz – 3,150 Hz <15 dB max. to min. over the range
  • Speaker Sensitivity (dB SPL): 92 dB SPL ±5 dB
Microphone and Amplifier:
  • Microphone Element Type: Electret condenser; Noise cancelling
  • Sensitivity @ 1 kHz (dBV/Pa): -28 dBV/PA ±3 dB, 8V
  • -28 dBV/PA ±3 dB, 8V: 8 VDC – 16 VDC (470 Ω TSO load circuit)
Connector Type:
  • Dual PJ connector
  • Microphone - PJ-068 (equivalent)<
  • Headphones - PJ-055 (equivalent)
Physical:
Headset Weight with Cord:
  • Weight (oz) 6.77 oz
  • Weight (g) 192 g
Headset Weight Without Cord:
  • Weight (oz): 4.4 oz
  • Weight (g): 125 g
  • Cable Length (ft): 6 ft ±4 in
  • Cable Length (m): 1.80 m ±10 cm
  • Color: Black
