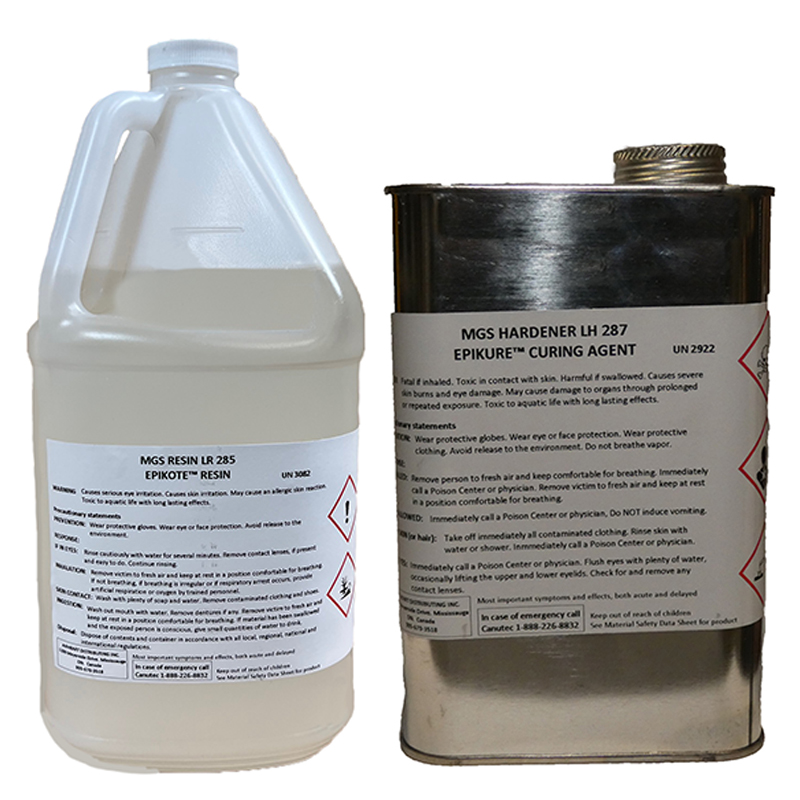

- Photo may represent series and not specific product
- SHARE
Overview
|
MGS epoxy resins are approved for the production of certificated aircraft parts. The 335 and 285 systems are especially suited for homebuilders because of their long shelf lives, excellent workability, physiological friendliness, adjustable cure rates and excellent static and dynamic strength characteristics. Both systems are available with fast and slow hardeners which can be blended with each other in any proportion to provide the desired working life and cure cycle. Pot lives and working times can be adjusted from fifteen minutes, using the fast hardeners, to six hours, when the slow hardeners are employed. Once the hardeners have been blended, the specified resin to hardener mixing ratio must be maintained. Components of the 335 system should not be mixed with those of the 285 system. With both systems, if only the slowest hardener is used, the cure times should be extended to a few days, otherwise some brittleness may be noted. While room temperature curing results in good properties when the faster hardener combinations are used, some curing at elevated temperatures or post curing will result in the highest achievable strength and Tg, with the slower blends. Even unfavorable low temperature and high humidity conditions in the work environment will not effect the quality of the product and high gloss, uncontaminated, tack free surfaces are achievable every time. The resins do not contain any unreactive dilutants which with many systems result in de-gassing and bubbling of the painted finish. The MGS resins do NOT contain aromatic amines. While proper processing practices should be maintained, the physiological friendliness of these systems have been demonstrated by many years of production experience. The 285 system has slightly higher physicals than the 335 and will also achieve a higher maximum Tg after post curing. While the 335 is more viscous than the 285, after mixing with the appropriate hardeners, their viscosities are comparable. These systems are used in the construction of the Cozy, Diamond, Cirrus and other aircraft. *Important Shipping Information- H287S Hardener can be shipped UPS ground only. A $25 hazardous fee, and a $45 box fee applies (per quart). Can also be shipped truck collect. |
Specifications
| | ||
| | 40 : 60 2 hours | |
| | ||
50 : 50 1.5 hours 20 : 80 4 hours | | |
Documents
- MGS 285 Tech Data Sheet (PDF)
- MGS 335 Tech Data Sheet (PDF)
- 285 Resin SDS
- 285 Curing Agent SDS
- 287 SDS
- 335 MSDS (PDF)
- 340 MSDS (PDF)
Reviews
I love MGS for my model airplane fiberglass work. It penetrates the fabric nicely.
Verified Purchase
L285 MGS Epoxy Resin 1 Ga
Verified Purchase
H335F MGS Hardener Quart Fast
Verified Purchase
L335 MGS Epoxy Resin 1 Ga
Verified Purchase
H285F MGS Hardener Quart Fast
Verified Purchase
L285 MGS Epoxy Resin 1 Ga
Quick shipping, but I haven’t used it yet.
Verified Purchase
H335F MGS Hardener Quart Fast
Great product’! Excellent flow and penetration into carbon fiber and tradition fiberglass cloth. Almost no odor and easy cleanup. I purchased the both the fast and slow set hardener. So far I have only used the fast set as I am working on small pieces, Plenty of time to get everything aligned before it sets up.
Verified Purchase
L285 MGS Epoxy Resin 1 Ga
Was O.K.
Verified Purchase
H285F MGS Hardener Quart Fast
Needed 1 Pint, had to buy 1 Gallon, not in stock local, was told it is good for about 2 years. Got Epoxy with a 2 week expiration date, added TCP to qualify for free shipping, got denied. Not good !
Verified Purchase
L285 MGS Epoxy Resin 1 Ga
Needed more Product
Verified Purchase
H335F MGS Hardener Quart Fast
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, we can ship this product by air freight although it is considerably more costly than ground shipment due to hazardous charges. Yes, we can allow your freight forwarder to pick up your package from our warehouse. When checking out online, please mention in special instructions that you would like to use your freight forwarder. We will need the forwarder's name and phone number and we will call them when the order is ready to be picked up at one of our facilities. You can also call in your order to 877-477-7823 and they can set up the order for forwarder pickup.
Part number 01-41000 is sold in a 1 gallon container. 1 gallon = 3.79 Liters.
Yes, we have added the MSDS for all the products listed on this page to the "Documents" tab. Please review them there.
We do offer two adjustable ratio pumps that can be used. P/N's 01-16010 and 01-40000. We also have digital scales that are commonly used for epoxies, p/n's 12-02585 & 12-01580.
Yes, H287 is the same as H287S for a slow hardener and it is linked with L285.
