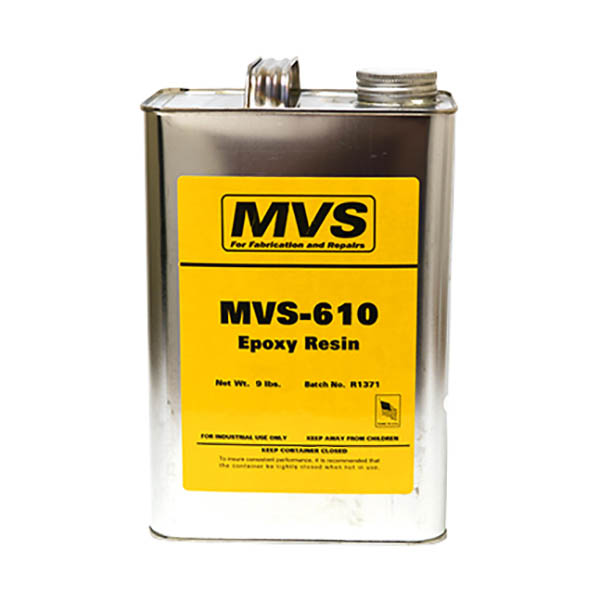

Mvs-610 Epoxy Resin Low Viscosity Infusion System
| Description | Quantity | Pot Life | Part Number | Price | Buy |
|---|---|---|---|---|---|
| MVS-610 Resin | Gallon | -- | 01-01654 | $95.43 | |
| MVS-615 Hardener | Quart | 30 mins | 01-01655 | $50.05 | |
| MVS-620 Hardener | Gallon | 2 hour | 01-01656 | $50.05 | |
| MVS-610 Resin & MVS-615 Hardener Kit | Gallon | -- / 30 mins | 01-01657 | $183.43 | |
| MVS-610 Resin & MVS-620 Hardener Kit | Gallon | -- / 2 hour | 01-01658 | $185.63 |
Overview
| MVS-610 is a very low viscosity epoxy resin intended for the vacuum-assisted resin infusion process. Two hardeners are listed here with different gel times for a variety of part sizes. The mixed viscosities of these two systems are very low, and result in rapid infusion in even the most dense fiber stacks. This feature is very desirable in production applications, allowing quick turnaround for increased production. The MVS-610 System is ideal for quickly producing a variety of parts and shapes that offer very good cured properties and long term stability. |
Handing & Curing
- MVS-610 is a very low viscosity epoxy resin intended for the vacuum-assisted resin infusion process. Two hardeners are listed here with different gel times for a variety of part sizes. The mixed viscosities of these two systems are very low, and result in rapid infusion in even the most dense fiber stacks. This feature is very desirable in production applications, allowing quick turnaround for increased production. The MVS-610 System is ideal for quickly producing a variety of parts and shapes that offer very good cured properties and long term stability.
Specifications
| MVS-610 | MVS-615 | MVS-620 | ASTM Method | |
|---|---|---|---|---|
| Color | Clear | Light Amber | Light Amber | Visual |
| Viscosity | 800 cps | 17 cps | 9 cps | D2392 |
| Specific Gravity, gms / cc | 1.11 | 0.96 | 0.94 | D1475 |
| Mix Ratio | 100 : 18 By Weight | 100 : 18 By Weight | PTM&W | |
| Pot Life, 4 fl oz. Mass @ 77°F | 30 min | 2 hours | D2471 |
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
MVS-610 is a resin only. It must be used with a hardener to have a pot life, or gel time. The web page shows the pot life when used with MVS-615 & MVS-620 hardeners. When used with the MVS-615 the material will have a 30 minute gel time/pot life, and when used with MVS-620 the material will have a 2 hour gel time/pot life.
