Vacuum Pump Kit

$685.30/Kit
Price Includes GST
Quantity
Add to Wishlist
Part# 01-00164

Overview

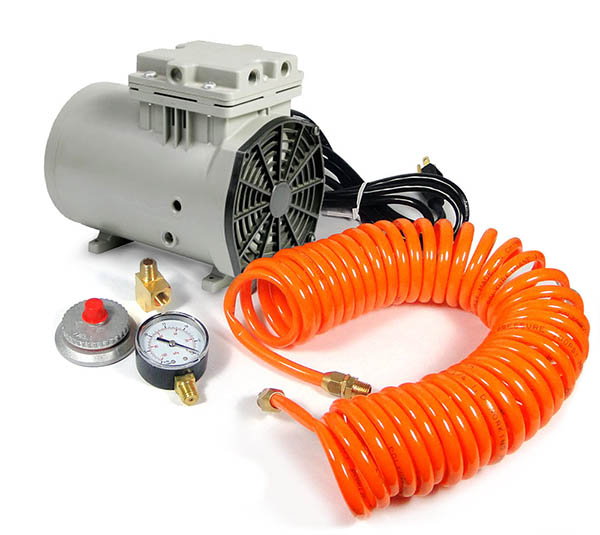

Includes vacuum pump, gauge, press,valve, fittings, hose. For shop vacuum bagging and composite operations.

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the spiral hose that comes with this vacuum bagging pump rated for higher temperature? i.e. 300 degrees?

Per tech: No, refer to part number 01-14860 for hi-temp applications.

Q: What voltage does the vacuum pump in this kit work off? Part# 01-00164.

The pump in this kit is VACUUM PUMP 5Z669 (part # 01-14891) has the following specs: 115V / 4.2 AMP / HZ 60 / PSI 100 / BAR 6.9

Q: Does this gauge in the vacuum pump kit require calibration?

Per supplier, this gauge does not require a calibration. This will have a 2%-3% accuracy rating.

Q: What is the max temp the hose can be used at?

We could not identify the max temp for this hose, but it is not designed to be used in an oven or autoclave curing.

Q: Does this pump require oil?

This is a dry running pump so no oil is needed.

Q: Can 01-14860 hose be attached to this vacuum pump?

Yes both the hose in the pump use 1/4 npt fittings.

Q: What is the CFM and max vacuum on this pump?

CFM: .78, Max Vacuum: 25.6
