Bagging Supplies Starter Kit

$194.65/Kit
Price Includes GST
Quantity
Add to Wishlist
Part# 01-14894

Overview

BAGGING SUPPLIES STARTER KIT INCLUDES THE FOLLOWING:

Sealing Tape
400* Resistant Sealant Tape 25 Foot Roll 25 yards on each roll.
P/N 01-14850

Kit Includes 1 Roll.


FULL WIDTH
PEEL PLY
1.8 oz x 64" Wide. Poly/Dacron blend is excellent as peel ply for composite lay-ups. Kit Includes 10 Yards.
P/N 09-00100


4.5 OZ. BREATHER/BLEEDER PLY #3450 is a 4.5 oz./sq. yd. non-woven polyester breather system used for even volatile evacuation from vacuum bags. It can be used at pressures up to 85 psi (5.8 bars). Multi-directional conformability make it a very efficient breather. This breather does not contain any binders which could seal the air flow. Width: 60".

Kit includes 10 Yards.


Vacuum Bagging Film
Vacuum Bagging Film #7400
P/N 01-14805

Kit Includes 10 Yards.

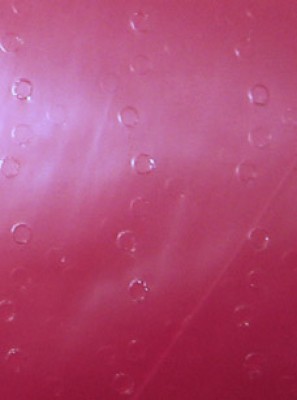

Vacuum Perforated Release Sheet
60 .002 Perforated Rel Sheet
P/N 01-01194
E 2760 is a red tinted, co-polymer, high elongation, low temperature release film with excellent conformability. E 2760 is an excellent release film for use on highly contoured parts for cure temperatures up to 250ºF. E 2760 offers good release properties in the curing temperature range of most polyesters, vinylesters, phenolic and some epoxy, as well as other applications where release films are required. The colored film provides for easy identification and removal from parts.
Tensile modulus, psi: < 2000
Elongation, %: > 800
Maximum use temperature, °F (°C): 250 (121)
Melt point (DSC), °F (°C): 318 (159)
60" width, .002 thickness

Kit Includes 10 Yards.

Reviews

This is an excellent kit. I got all the supplies that I needed to start vacuum bagging.

Lynn M
February 2, 2018

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I was wondering if your BAGGING SUPPLIES STARTER KIT comes with a valve?

No but we do sell one under part number 01-14855
