Divinycell Foam Pvc

From $11.65 to $924.00
Prices below incude GST
Foam
Type
Density Tkns. Sheet Size PN Price/Sheet Buy
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.1/8"32" x 48"
01-00158
$25.85
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.1/4"32" x 48"
01-12300
$42.41
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.3/8"32" x 48"
01-12400
$65.73
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.5/8"32" x 48"
01-12500
$96.53
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.3/4"15" x 26"
01-12600
$23.05
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.3/4"32" x 48"
01-12700
$92.13
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.3/4"32" x 24"
01-01197
$46.09
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.1"32" x 48"
01-12800
$133.93
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.1-3/4"32" x 48"
01-12900
$177.93
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.2"48" x 96"
01-12920
$707.30
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.2"24" x 48"
01-12910
$176.83
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.3"48" x 96"
01-12940
$1016.40
Quantity
Divinycell (PVC)
Type H45
3 Lb/Cu. Ft.3"24" x 48"
01-12930
$255.15
Quantity
Divinycell (PVC)
Type H100
6 Lb/Cu. Ft.1/4"42.1" x 42.5"
01-01310
$101.15
Quantity
Divinycell (PVC)
Type H100
6 Lb/Cu. Ft.1"6" x 10"
01-13100
$12.82
Quantity
Divinycell (PVC)
Type H100
6 Lb/Cu. Ft.1"10" x 12"
01-13200
$15.68
Quantity
Subtotal $0.00
Add to Wishlist

Overview

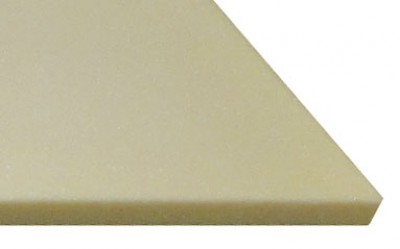

Divinycell:

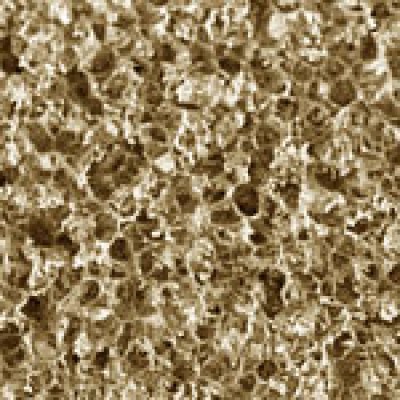

    A closed cell medium to high density foam which has high compression strength, durability, and excellent fire resistance. Divinycell can be vacuum formed to compound shapes and can be bent using heat. Compatible with polyester, vinylester, and epoxy resins.

Reviews

As advertised, flexible.

Robert W Verified Purchase

H45 Divinycell 1/8 X 32 X 48

August 13, 2024

Diviny cell foam is a great rigid core material, I just needed a small piece of 1/4, but only large sizes with expensive shipping were available in 1/4. So I bought an available small piece of 3/4 and cut thinner on a bandsaw. Also easily cuts with a sharp knife.

Ted L Verified Purchase

H45 Pvc Foam 3/4X 16X24

June 17, 2024

This foam is rigid and made for fiberglass if over, this needs to be written in the description

Larry A Verified Purchase

H45 Pvc Foam 1/4X32X48

November 21, 2023

Frank M Verified Purchase

H45 Pvc Foam 3/4X32X48

September 6, 2023

Product is good quality, well packaged with no damage. Origionally had problems but customer service fixed everything.

Barry B Verified Purchase

H45 Pvc Foam 3/4X32X48

August 9, 2023

Great product

Mathew C Verified Purchase

H45 Pvc Foam 3/4X 16X24

March 3, 2023

So far I have only worked with one sheet to form it for the body of a race car. The divinycell is a little tricky in thermoforming but not bad once you get a feel for it. It takes a little time to get enough heat into the material but you can burn the surface it you hold the heat gun on it too long. You can heat the material again if you need to adjust your bend. Highly recommend that you use a slurry of resin and micro balloons when applying the first layer of fabric as the part will be stronger and lighter.

Allen S Verified Purchase

H45 Pvc Foam 1/4X32X48

October 29, 2022

Very fast shipping’s to Germany, only four business days! ! Product like in description! Thank you very much!

Eugen P Verified Purchase

H100 Pvc Foam 1 X 10 X 12

July 30, 2022

Great foam, works with epoxy and fillers. Easy to cut and shape.

Michael F Verified Purchase

H45 Pvc Foam 3/4X 16X24

March 29, 2022

The foam was exactly what I ordered, PVC foam with is fuel resistant and the material specified for building the strakes/fuel tanks for the Cozy MK IV. The foam was packed extremely well with wood to prevent damage. Aircraft Spruce always does a good job packing items to prevent damage in shipment.

David S
May 10, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this foam good for building bulk heads and instrument panels on a long ez? The plans I have call for R-45 foam. Is this the same stuff?

H45 foam core can be used in place of R45 foam, but any changes of the plans should be reviewed with other builders.

Q: Is this Divinycell Foam PVC sandable?

Yes, Divinycell can be cut and sanded to shape.

Q: Can this foam be cut with a hot wire?

No, Divinycell is not to be cut with a hot wire. The only foam that we offer that can be cut with a hot wire is our styrofoam, small cell (example part # 01-09400) and large cell (example part # 01-37600).

Q: Can the Divinycell foam PVC be purchased in longer lengths above 48"?

The sizes we offer are stock sizes with max length of 48". We may be able to special order a custom size, but the minimum order may be 20 pieces or more. We would just need the exact material and size you need and we can submit a request for a quote. Please contact our sales department if you would like to look into a special order for custom sizes.

Q: Can Divinycell be vacuum bagged, or will the heat of the epoxy cure cause it to melt or deform?

Divinycell foam can be vacuum bagged. Polyester, vinyl-ester and epoxies can be used on this foam without any damage to the foam.

Q: Can divinycell foam be covered with prepreg carbon fiber, vacuum bagged and put in oven at 350 degrees?

The heat distortion temp is 250 degrees. 350 degrees is much higher and would most likely damage the foam.

Q: Can this Divinycell foam PVC be cut using a CNC machine?

Yes. It can be cut using a CNC.

Q: I purchased a sheet of H45 Divinycell. I wish to glue it together, what epoxy, adhesive do i use. Thank you

There is not a specific epoxy adhesive to be used on this material. All the epoxy adhesives we offer would work fine. You may want to consult with others with the same project to see what others have used with success. T-88, G-Flex, Aeropoxy adhesives, are just a few we offer.

Q: Can the H45 foam in 1/8 and 1/4 thickness be rolled for shipping?

No, these are rigid and will break if we try to roll them.

Q: Is Divinycell foam compatible with avgas and/or motor gas?

This has passed the test of being submerged in High Octane Petroleum Spirit for 14 days.
