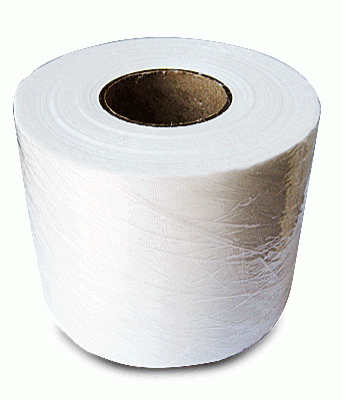

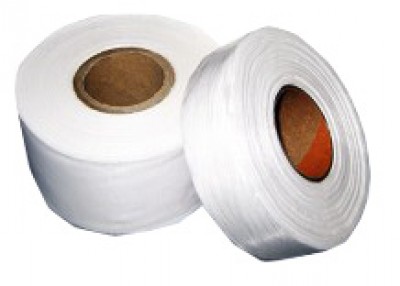

Note: All sizes and types sold in 50 yard rolls A layer of 2.7 oz. Dacron fabric strips or tape laminated into a layup as if it were an extra ply of glass. The peel coat wets out with epoxy like glass cloth and cures along with the rest of the layup. However, the Dacron does not adhere structurally to the glass and when peeled away it leaves a surface ready for glass-to-glass bonding without sanding. Poly/Dacron blend is excellent as peel ply for composite lay-ups. |
Quick shipping, received in perfect condition
Surface Tape Dacron 2 Smooth
No problems while ordering.Tape works fine
Surface Tape Dacron 2 Smooth
Surface Tape Dacron 3 Smooth
Convenient item for small layups.
Surface Tape Dacron 4 Pinked
It was what i expected.
Surface Tape Dacron 3 Pinked
Order sent and arrived quickly.
Surface Tape Dacron 2 Smooth
Release treated peel ply in rolls of various widths is the greatest thing since sliced bread. Better actually I am capable of slicing loaves of bread, cutting long strips pf peel ply to cover fiberglass or kevlar tape is a PITA. Scissor snip once and done.
Surface Tape Dacron 3 Smooth
Good product to use as last step in fiberglass lay up.
Surface Tape Dacron 4 Smooth
This is exactly what I wanted!
Surface Tape Dacron 3 Smooth
Just what was needed!
Surface Tape Dacron 2 Smooth
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

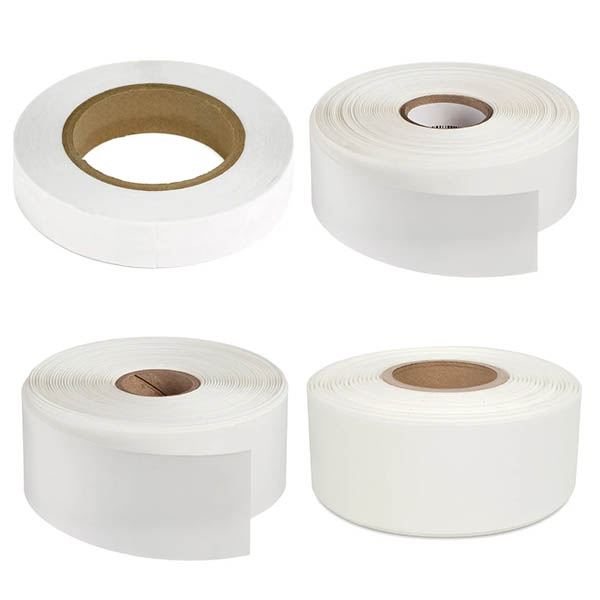

Pinked refers to the edge of the tape. There are straight edges and pinked edges. Pinked is a teeth-like pattern on the edge of the tape. "Pinked edges are used to increase the amount of surface that can actually adhere to the aircraft fabric when the tape is cemented in place. The actual edge area that will be cemented in place increases by over 41% when pinked edge tape is used versus straight edge tape." (credit: Ron Alexander) When working with composites, straight edge tape is primarily used. In fabric aircraft covering, pinked and straight tapes are used.
Per Vendor: We don't have one for this product because it is 100% polyester with no dye or finish (it is scoured to remove 99%+ of the processing chemicals used to weave it), but I will see what I can put together.
Yes, it is a polyester type like finishing tape used in fabric covering. It is used on experimental aircraft.
Yes, each size listed is sold in 50 yard rolls.
It is basically the 102 Dacron cut into a strip.
