Home / Electrical / Chargers, Battery / Schauer /Schauer 24V / 20 Amp Battery Charger Model JAC2024H-C
Main Image

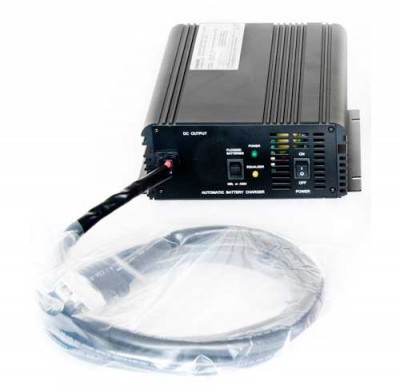

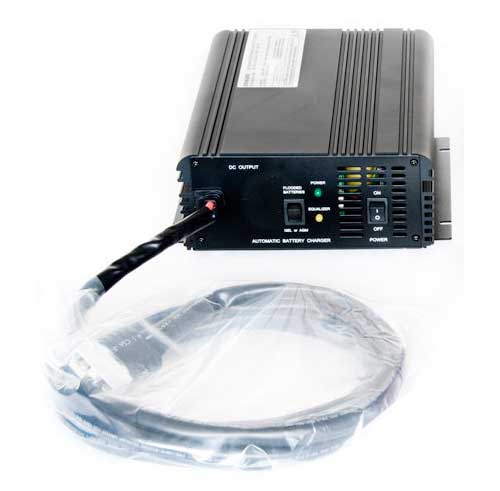

Schauer 24V / 20 Amp Battery Charger Model JAC2024H-C

1 Review 7 Answered Questions
$324.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-00891
MFR Model# JAC2024H-C

Overview

Intelligent chargers follow battery impedance to end of charge cycle for all battery types. Fully automatic. Green LED indicates AC power on, yellow LED indicates battery is charging, yellow LED off indicates float mode.

  • Charge control: constant current charge to a constant voltage, then to a float standby.
  • Current limiting.
  • Fully automatic 3 stage charger can be left on the battery in maintaining/float mode.
  • Can be set for any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
  • Cyclic voltage: FLOODED 2.5 volts/cell; GEL & AGM 2.4 volts/cell. 2.6 volts/cell for 36 & 48 volt batteries. May be preset to customer's specification for battery type.
  • Not intended for use as a DC power supply.
  • Continuous - 100% duty cycle.
  • Low voltage start: will start charging a deeply discharged battery with terminal voltage less than 4 volts.
  • Reverse polarity and short circuit proof.
  • Aluminum case.
  • AC Input 115/230 volts, 50 or 60Hz Input voltage autosensed.
  • 20 AMPS
  • 24 Volts
  • 10"W x 7.5"H x 3"D
  • 6.5 lbs
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Have not put this unit in service yet but was the best price for this unit on the internet. Got more for my money than I was expecting. Very quick delievery.

Senergy E Verified Purchase

Schauer 24V / 20 Amp Battery Charger with Battery Clips Model JAC2024H-C
May 31, 2022

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the part number 11-00891 Schauer charger work on a Gill 242 battery as an initial charger and a minder?

Per the supplier: Yes, it should.

Q: Will the part number 11-00891 Schauer charger work with Concorde RG24-11M or Concorde RG24-15M batteries?

Yes, P/N: 11-00891 Schauer Charger is compatible and will work with Concorde batteries RG24-11M and RG24-15M.

Q: Does this SCHAUER BATTERY CHARGER MODEL JAC2024H come with the clips and 3 pin plug or do those have to be purchased separately

This unit, part # 11-00891, only has the clips. You can purchase the unit with a 3-pin Cessna type connector, which is part number 11-05086. Be aware then using he 3-pin connector, the charger will only run the panel power, and not charge the battery. The battery can only be charged with the clips attached directly to the battery.

Q: Will this Schauer battery maintainer JAC2024H work on Concord RG-35 or Gill 25 batteries without harming them or voiding the warranty?

This is a multi-stage charger with a maintenance float mode. It will properly charge and maintain a 24 volt lead acid (flooded, AGM, VRLA) battery. There is a selection switch in unit to choose flooded or AGM batteries. Unit is set to charge to 28.8 VDC on AGM setting (recommended for aircraft) and 29.7 VDC on flooded setting. It will maintain at 26.7 VDC. It is always recommended to contact the manufacture first to see if a charger like this will be compatible with your battery.

Q: will this charger work with odysey batteries? (2) 12v connected in series

Yes it can.

Q: Will this charger work for RG41/53 battery?

Concorde recommends our part number 11-14352.

Q: Will this work for a Cirrus G1? If so, is the SB50 the appropriate plug?

Yes this will work with a Cirrus G1 and the SB50 is the most common plug. The 3-pin connector is needed for a Cirrus.
