Lamar Power Products Activator 282 24V Aircraft Battery Charger
MFR Model# 282
Overview
|

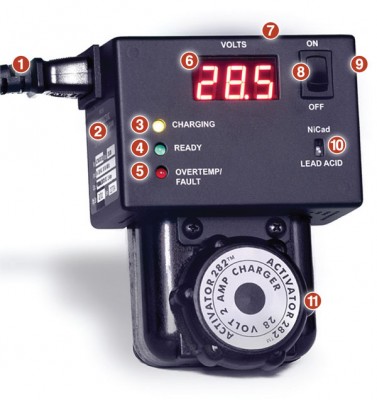

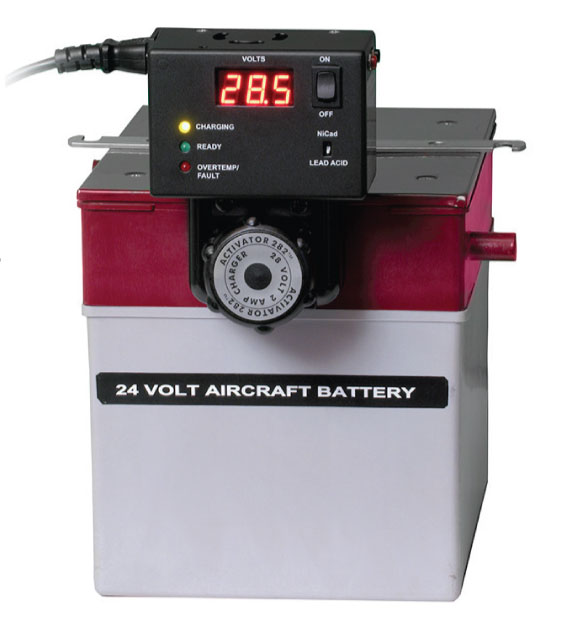

Direct connect and Fully automatic charger for 24 volt military and aviation batteries of all ratings Extends Battery Life The Activator 282 is a direct connect, fully automatic 2 Amp charger capable of charging a 24 volt military or aviation battery of any rating from zero to full capacity. It is also a standby maintenance unit without the use of “trickle” charging, thus extending the life and durability of the battery. There is no gassing, heat or other detrimental results of trickle or float charge. The digital voltmeter continuously displays battery voltage during charge and standby. |
Features
- Direct Connect Design - No charge cables.
- Microprocessor controlled, multistep charge algorithm.
- 8 Amp pulses bring a deeply discharged battery up from zero volts.
- Conditioning mode top charges NiCads and rejuvenates Lead Acid.
- Short cell/over-temp protection, non-responsive battery indication.
- Can be left on indefinitely - charges only when required.
Specifications
- AC Input: Worldwide 90 to 260 VAC
- DC Output: 8 Amp Pulse, 2.5 Amp Charge
- P/N: Activator 282 (& 282-300)
- NSN: 6130-01-465-2674
- Dimensions: 5.5” H x 4.5” W x 3.5” D
- Weight: 1.5 lbs

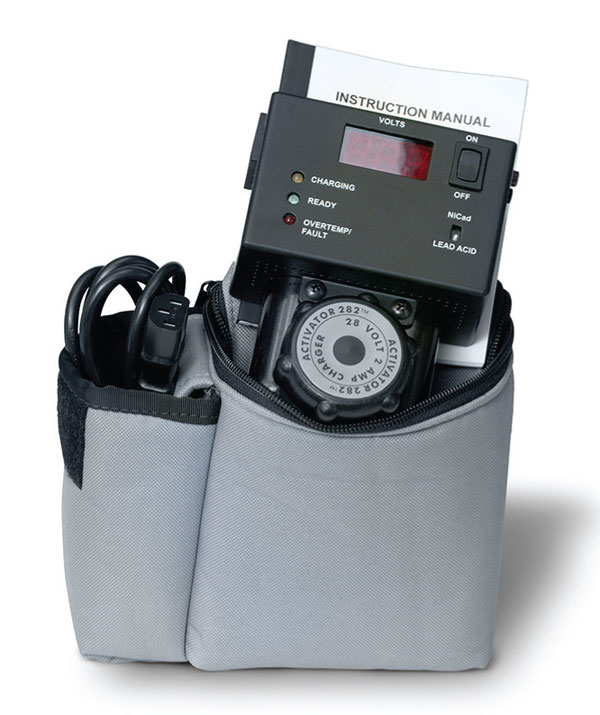

- Includes: Padded carrying case, technical manual, IEC line cord
Documents
- Instruction Manual (PDF)
Reviews
Verified Purchase
Power Products Activator 282 24V Aircraft Battery Charger
We only fly about 100 hrs. or so a year in the XLS+ and keeping the battery maintained is crucial since replacement batteries are extremely expensive. This charger is fantastic and the quality is superb. I highly recommend it!
Verified Purchase
Power Products Activator 282 24V Aircraft Battery Charger
Bought this unit to keep our battery charged up for the Phenom 300 I fly. Have had the charger for about two weeks now and it seems to be doing a great job keeping between 25.3v to 28.0v
Verified Purchase
Power Products Activator 282 24V Aircraft Battery Charger
Verified Purchase
Power Products Activator 282 24V Aircraft Battery Charger
Verified Purchase
Power Products Activator 282 24V Aircraft Battery Charger
Great product
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, this is not an auxiliary power unit. It is a charger only.
The manual does not mention this, but general practice is not to charge a battery while installed, due to possible damage to the aircraft if there happened to have any problems while charging. We have added the manual to the web page. Please review it to see if it will work for your application.
Lamar recommends the 282U (11-16338) for clearance issues.
