Bogert Aviation Battery Box Modification STC Kit

$118.80/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-02893
MFR Model# 08M-BBM

Overview

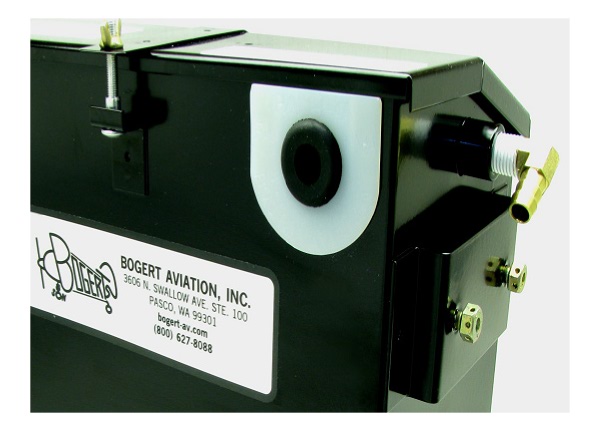

The STC Battery Box Mod greatly improves battery performance. It modifies Piper Metal Battery Boxes to eliminate the braided straps and ground connections known for heat generating, high resistance connection.

Hard starting and other electrical problems can often be tracked back to poor battery and group connections. Use this inexpensive mod with a new positive and negative cable if your battery box is still mechanically sound.

The Battery Box Mod comes with templates to make the cut outs so it’s very easy to do. The modification also includes the u-shaped flanges a cover plate to seal the old insulator hole and rivets. The flanges accommodate Bogert’s “Low Loss” Copper cables and the entire flange slides in and out of the slots making access to the battery quick and easy. Paperwork includes the FAA/PMA approved STC SA4008NM, AML, Instructions and a sample 337 form entry.

Features

  • Less expensive to modify the existing box than to replace it
  • Mod and Positive and Negative Cables are less costly than new braided straps
  • Compatible with our famous “Low Loss” Cable Kits
  • Nylon inserts guard against battery grounding or unwanted mishaps
  • Add positive and negative copper cables for additional charge

Application

Aircraft Make

Aircraft Model

Type Certificate Number

Certification Basis for Alteration

*FAA Drawing List

Number-Date

AML Revision Date

PIPER

PA-18, PA-18S, PA-18-”105”, PA-18S-”105”, PA-18A, PA-18-”125”, PA-18- “135”, PA-18A “135”, PA-18S “135”, PA-18 “150”, PA-18A “150”, PA-18S “150”, PA-18AS “150”

1A2

CAR 3 and TCDS 1A2

1-1

10/14/03

4/12/04

PIPER

PA-20 “115”, PA-20S “115”, PA-20 “135”, PA-20S- “135”

1A4

CAR 3 and TCDS 1A4

1-1

10/14/03

4/12/04

PIPER

PA-22-135, PA-22-108, PA-22S-135, PA-22-150, PA-22-160, PA-22S-160

1A6

CAR 3 and TCDS 1A6

1-1

10/14/03

4/12/04

PIPER

PA-23, PA-23-160, PA-23-235, PA-23-250

1A10

CAR 3 and TCDS 1A10

1-1

10/14/03

4/12/04

PIPER

PA-24, PA-24-250, PA-24-260, PA-24-260

1A15

CAR3 and TCDS 1A15

1-1

10/14/03

4/12/04

PIPER

PA-25, PA-25-235, PA-25-260

2A10

CAR 3 and TCDS 2A10

1-1

10/14/03

4/12/04

PIPER

PA-28-140, PA-28-150, PA-28-160, PA-28-161, PA-28-180, PA-28-235, PA-28R-180, PA-28R-200, PA-28RT-201

2A13

FAR 23 and TCDS A1EA

1-1

10/14/03

4/12/04

PIPER

PA-30, PA-39

A1EA

FAR 23 and TCDS A1EA

1-1

10/14/03

4/12/04

PIPER

PA-32-301, PA-32-260, PA-32-300, PA-32R-300

2A13

FAR 23 and TCDS 2A13

1-1

10/14/03

4/12/04



Benefits

  • Improve starting performance
  • Easier to remove and install the battery
  • May prolong life of battery and starter
  • Eliminate extra connection on outside of the battery box
  • STC FAA/PMA approved for many Piper Aircraft
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

This is a significant improvement over the old woven aluminum straps, allowing the battery cables to connect directly to the battery. I cant comment if they are worth it on their own as I replaced my cables at the same time, but the box looks better now and I dont have to worry about the 53 year old aluminum straps breaking.

John G
December 21, 2015

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does these come with the cables included?

No, these do not include the cables.

Q: What is in the box? Does this include + and - cables?

Per the supplier: The box contents are STC, Template, Flanges, Rivets, and Sealing Plate. No + and - cables.
