Aluminium Battery Boxes

From $251.95 to $257.00
Prices below incude GST
Part
No.
Model Application Height Width Length Price Buy
11-00125
HB-2525 Amp,
Horizontal Mount
8"5
3/16"
7 7/8"$282.70
Quantity
11-00130
VB-2525 Amp,
Vertical Mount
8"5
3/16"
7 7/8"$277.14
Quantity
11-00135
HB-3535 Amp,
Horizontal Mount
8"5
3/16"
9 7/8"$282.70
Quantity
11-00140
VB-3535 Amp,
Vertical Mount
8"5
3/16"
9 7/8"$277.14
Quantity
Subtotal $0.00
Add to Wishlist

Overview

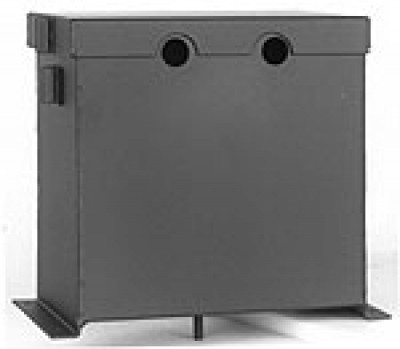

These top quality battery battery boxes are constructed from 5052 aluminum and are heli-arc welded. A corrosion resistant epoxy powder coating is applied using a electrostatic process and oven baked for a long lasting finish. Complete hold down hardware kits are provided with all boxes , and mount flange are pre-drilled for mounting ease using 3/16" diameter bolts. Use battery boxes when mounting battery in a confined area. where enclosed battery protection is required. Battery boxes include a 1/4" tube for venting and drainage. Specify make and model of battery and horizontal or vertical mount when ordering.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these battery boxes STC'd for Piper aircraft?

No, these are not FAA Approved. Please contact our sales staff with aircraft make, model and serial number so they can get a price and lead time on an STC'd box from Piper.

Q: What does side load or top load for the Aluminum battery boxes mean?

Top load or side load are different ways to mention either a horizontal or vertical mount for the Aluminum battery boxes.

Q: RE:Complete hold down hardware kits are provided with all boxes What does the kit consist of? Does it include HW to secure the battery in the box?

The hardware kit is nuts and bolts used to secure the box to the aircraft.

Q: How much does part # 11-00125 weigh?

Approx 2.5 lbs.

Q: Can you clarify is the Aluminum Battery box pictured a Horizontal mount or a Vertical mount? I need one that attaches to the floor like the picture shows but dont know which one to order.

It depends on your battery but you would want VB-25 or VB-35 for vertical mount.
