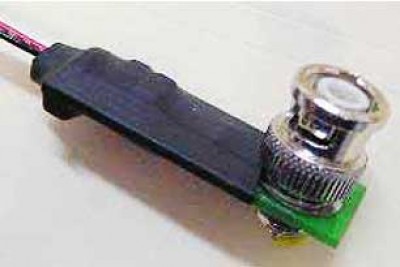

Dynon Capacitance To Voltage Converter

$68.20/Each
Price Includes GST
Part# 10-02159
MFR Model# 100654-000

Overview

Dynon Avionics’ capacitance-to-voltage converter is suitable for general use with most capacitive plate fuel level sensors. It accepts an input via a female BNC and outputs a dc voltage signal that can be read by the EMSD120. It requires 10 Vdc to 15 Vdc for power and draws minimal current. We recommend that you connect the capacitance-to-voltage converter to the EMS for power as shown in the table below, but it will also work properly when connected directly to standard 12 volt aircraft power. If your aircraft runs on 28 volt power, you must connect the capacitance-to-voltage converter to the EMS for its power source. Voltage inputs higher than 15 volts will damage the device.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Works well, easy to install

Sa M Verified Purchase

Dynon Capacitance To Voltage Converter

March 7, 2024

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the price per unit, so if I have 2 tanks (rv-8a) I would need to order 2 units?

You will need one per tank.

Q: Any problems running this to Garmin GEA 24? (RV7 to G3X)

No, this is intended to be used in the Dynon Skyview system.
