ACS Keyed Ignition Switch And Lock Sets

Select Model:
With Starter Position (FAA-PMA For Ignition Switch)Without Starter Position (Experimental Only)
Price Includes GST
Quantity
Add to Wishlist

Overview

Description
Model No.

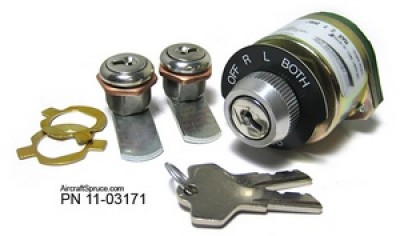

Includes ignition switch without starter position, two aircraft locks (one door and one baggage lock)* and two keys mated to ignition switch and locks. (Diode not required) A-510-5K 11-03171
Includes ignition switch with starter position, two aircraft locks (one door and one baggage lock)* two keys mated to ignition switch and locks . (diode included) A-510-2K 11-03172

Made in USA

These fine quality switches are being used in many aircraft. The switch housing is now machined from billet aluminum which makes this switch 25% lighter. A-510-2 Ignition Switch is PMA'd, door and baggage locks are not.

Multiple ignition switches & lock sets are available with the same key. This is a special order and extra charges & lead times will apply. Please call sales for a price & lead time.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

nice feature that the key goes in either way.

Ray H Verified Purchase

Ignition Switch & Lock Set A-510-2K

August 23, 2024

Have not installed yet but will do real soon at the next inspection. Im sure a great fit.

Jerome T Verified Purchase

Ignition Switch & Lock Set A-510-2K

April 24, 2024

Stinson S Verified Purchase

Ignition Switch & Lock Set A-510-5K

April 20, 2024

Just what I needed.

Plane C Verified Purchase

Ignition Switch & Lock Set A-510-5K

January 31, 2024

Excellent switch, easy fit just perfect for my C180, highly recommend. Aircraft Spruce dispatched my part immediately and I had it in hand in Australia 🇦🇺 within 4 days, what a brilliant service.

Glenn K Verified Purchase

Ignition Switch & Lock Set A-510-5K

December 20, 2023

Almost a plug and play swap out. Perfect fit.

Thomas W Verified Purchase

Ignition Switch & Lock Set A-510-2K

July 11, 2023

Vine A Verified Purchase

Ignition Switch & Lock Set A-510-2K

June 2, 2023

The keys are different from the ones in the photograph in a good way. The supplied keys are symmetrical that is you can insert the key in the mag switch either way. Also, the keys have a plastic cover.

Harvey S Verified Purchase

Ignition Switch & Lock Set A-510-2K

May 26, 2023

Works Great

Big R Verified Purchase

Ignition Switch & Lock Set A-510-2K

January 12, 2023

Works great

Gregory H Verified Purchase

Ignition Switch & Lock Set A-510-5K

November 15, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the faceplate With start (P/N 11-03667) included in A-510-2K kit?

Per the supplier: Yes, the faceplate is included.

Q: Is this STC'd for the Cessna 150 and 172 as well? Is the STC Copy available?

The A-510-2 ignition switch is PMA'd for the C-150 and C-172. The door and baggage locks are not. Please review the PMA pdf which is located in the "Documents" tab of the web page to verify your serial number is covered.

Q: What are the overall and grip lengths of the door and baggage lock bodies? Can a third lock be added for a second door?

Total length of the lock is approximately 15/16" length (not including screw and washer on end). Max diameter of threaded portion is approx. 3/4". Max diameter of visible portion is approx. 7/8". You would have to special order 11-03172 with 11-01600 keyed together. This would give you 4 total locks. A sales rep can help you with this order.

Q: What are the hole dimensions and keep-away dimensions for the ignition switch?

The thread OD is 7/8. There is a drawing showing how to cut the key way under part number 11-03170.
