ACS Keyed Ignition Switch A-510-5
MFR Model# A-510-5
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
|

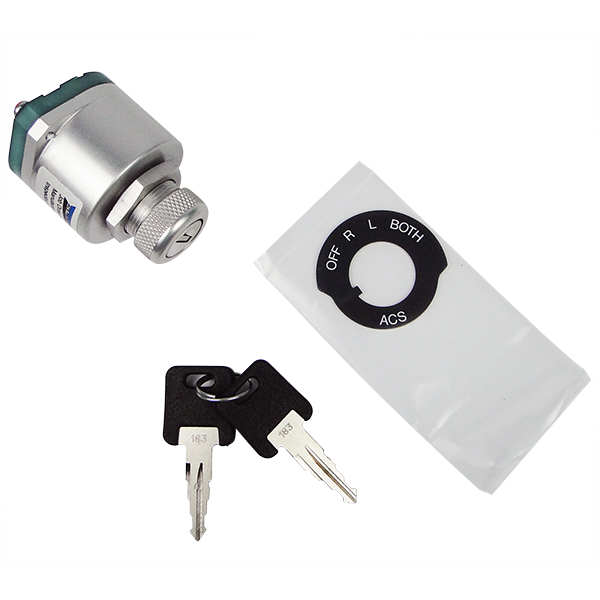

These fine quality switches are being used in many aircraft. The switch housing is now machined from billet aluminum which makes this switch 25% lighter. They provide “ON” and “OFF” electrical control of broth magnetos
on single engine aircraft. The key-operated switches mount from the rear of the panel in a 7/8” dia. hole. Available with or without starter position.
Experimental aircraft only or 337 Form required for Production aircraft. Without Starter Position., Supplied with switch plate & 2 keys. (diode not required) A-510-5. Made in USA Multiple ignition switches & lock sets are available with the same key. This is a special order and extra charges & lead times will apply. Please call sales for a price & lead time. |
Documents
- Installation Diagram (JPG)
Reviews
Jada old bendix switch in my Cessna 180 that went out, this worked great and fit perfect in the same spot, the wire diagram is wrong online, it’s just two mag poles and a ground, simple install. Worked great for me,
Verified Purchase
Ignition Switch A-510-5
Works as it should immediately after installation, the proof in the pudding can only be determined 5 years from now
Verified Purchase
Ignition Switch A-510-5
A wiring diagram would have been nice. Some kind of assurance that it was getting installed correctly.
Verified Purchase
Ignition Switch A-510-5
Form fit and function are exactly what I was looking for on my 68 year old airplane.
Great !! As order and on time
Nice switch. Works good. Love the keys and the fact that they are non-directional. However...this switch has lug-type connectors on the back, not threaded post type like on a Bendix. Little screws, tiny star lock-washers. If you have tight access for connecting P-leads and ground (like on my RV-4), trust me, you WILL say bad words when trying to get the leads connected with these tiny screws/washers. Threaded posts with nuts (like a Bendix) would be soooo much easier.
This product is fine for certified aircraft as it is FAA PMA approved. However if you are building an experimental stay away from it. Replacement keys are very expensive IF you have a key with a number stamped on it. I originally got 4 keys for 4 locks and only one had a number on it. The locks do not have any number on them. If you don’t have the original number you have to ship a lock to ACS to get a key. Find something that does not go in a certified aircraft. Some locks that go in cabinets would work fine.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manufacturer: No, this ignition switch, part number 11-03169 is only rated for 14V systems.
The screws are packaged in the same bag as the keys. Please check the bag, and if they are not there please contact our customer service department and they will ask the supplier to send them to you.
In the L position, the R terminal is ground and vice versa. Then the both position, neither are grounded.
No, this switch is not FAA PMA Approved.
2 amps inductive at 12 volts and 1 amp inductive at 24 volts.
We can source cut keys from ACS, we would just need the number from your key or lock. Please contact our sales department with this information.
