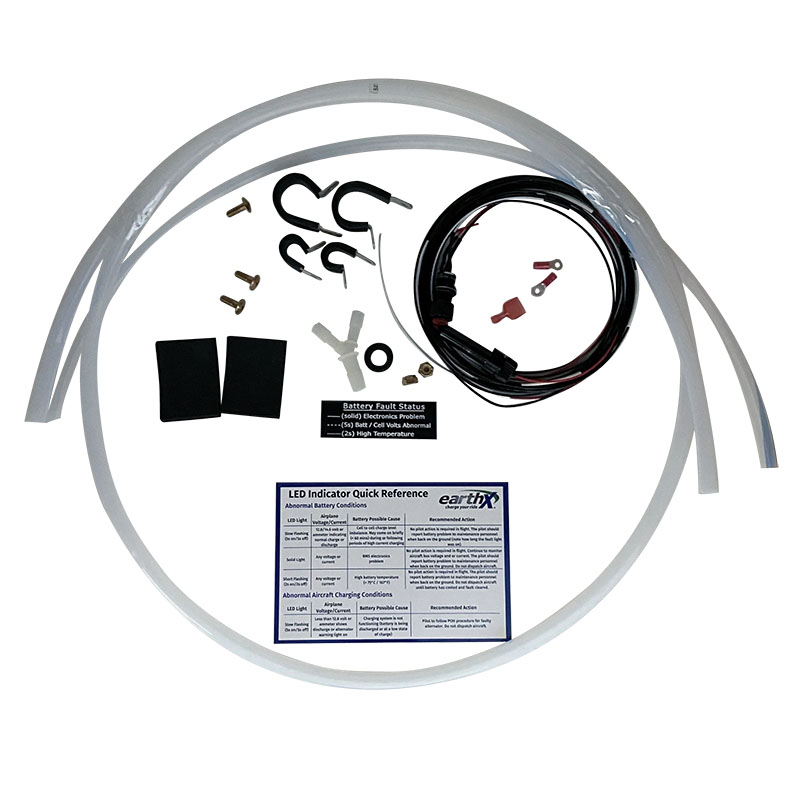

Approved STC installation kit to be used with corresponding STC Aircraft approval for CC18-180, CC18-180A, CC19-180 and CC19-215.
Kits are non-returnable. You may not use all the pieces in the kit; no parts can be returned. |
Item | Qty | Part Number | Part Description |
---|---|---|---|
1 | 1 | 11MM12 | MIL Spec Amber 12 Volt LED (MS25041-4) |
2 | 1 | 200208 | Fault Indicator Placard |
3 | 2ft | 5239K13 | 1/4” Teflon Tubing |
4 | 6ft | 5239K15 | 3/8” Teflon Tubing |
5 | 1 | 5463K722 | 3/8” Wye Tube Fitting |
6 | 1 | 9600K316 | 3/8”ID 9/16” OD, 1/16” Panel Grommet |
7 | 2 | MS21919-DG6 | Adel Clamp 3/8” |
8 | 2 | MS21919-DG12 | Adel Clamp 3/4” |
9 | 2 | AN365-1032A | 10-32 Lock Nut |
10 | 3 | AN525-10R9 | 10-32 Machine Screw |
11 | 2 | 230607 | EPDM Foam ¼”x1 ½”x2” |
12 | 1 | 220707 | Quick Reference Guide |
