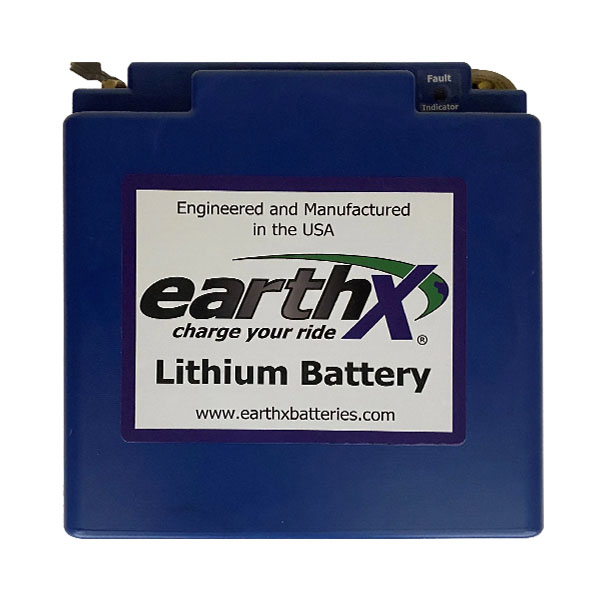

EarthX Lithium Batteries - Experimental Only

From $379.00 to $899.00
Prices below incude GST
Model Volts 1 Hr 1C Rate Crank Amps
(PCA/CCA)
Weight Case Size
L x W X H (In.)
PN Price Buy
ETX680 79MM13.212.4680/3204.1 lb6.5 x 3 x 6.6
11-13907
$416.90
Quantity
ETX680 76MM13.212.4680/3204.1 lb6.5 x 3 x 6.6
11-20169
$418.00
Quantity
ETX680C13.212.4680/3203.9 lb5.9 x 3.4 x 4.5
11-14292
$416.90
Quantity
ETX90013.216840/4004.9 lb6.5 x 3 x 6.6
11-13926
$493.90
Quantity
ETX900-2426.415.6840/4008.9 lb6.5 x 5.1 x 6.6
11-16601
$988.90
Quantity
ETX900-VNT13.216840/4005.4 lb6.5 x 3 x 6.6
11-16211
$603.90
Quantity
ETX120013.224.81200/6006.9 lb6.5 x 3 x 6.6
11-13930
$767.80
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Note: Not FAA Approved. Intended for use in experimental aircraft only.

When quality, performance, and safety matter, EarthX is the most trusted and used brand by experimental aircraft manufacturers and experimental aircraft owners, and endorsed by engine companies such as Rotax, Continental, ULS Power and Viking. Remove weight and increase power, all with one product!

These ETX Hundred series (ETX680C, ETX680, ETX900 and the ETX1200) batteries are recommended for your primary engine aircraft battery. These models are equipped with redundant electronic circuits on the BMS board and have an LED battery fault light indicator to alert you to cell health and state of charge. The battery management features include over discharge protection, over charge protection, short circuit protection up 1000 amps, excessive cranking protection (temperature sensing) in addition to integrated cell balancing technology.

With an EarthX lithium battery, you will gain a significant amount of cranking amps and drop a minimum of 11+ pounds instantly by switching from a lead acid battery.

Please view the Aircraft Application Flowchart under the documents tab for assistance in selecting the correct EarthX battery for your application.

Additional Specs
MODEL TERMINAL POLARITY CHARGING SYSTEM: ALTERNATOR/GENERATOR
ETX680C UNIVERSAL 60 or less
ETX680 UNIVERSAL 60 or less
ETX900 UNIVERSAL 80 or less
ETX1200 UNIVERSAL 120 or less

Features

  • The ETX Hundred series is fully protected by an integrated Battery Management System that protects the cell’s from over discharge, over charge, short circuit, thermal protection and built in cell balancing to ensure charge levels are equal (balanced) 100% of the time for optimal performance
  • and life.
  • The most trusted and used lithium battery on the market. Multiple experimental aircraft manufacturers and experimental engine manufacturers such as Rotax Engines, Continental Motors, UL Power Engines and Viking Engines approve the EarthX brand.
  • LiFePO4 chemistry, the most abuse tolerant of all lithium battery chemistries.
  • Higher voltage while cranking mean faster starts.
  • Extremely light weight, 70-80% lighter than your lead acid battery.
  • 4,000 charge cycle life versus 350 charge cycle life of a lead acid battery. Can last up to 8 years.
  • Environmentally friendly, no hazardous lead or acid, will not corrode or sulfate.
  • Wider operational temperature range than a lead acid battery. (-22° F to 140° F, -30 ° C to 60° C) . A lead acid’s operational range is(-40° F to 113° F or -40° C to 45° C).
  • Vibration tested to DD-311 FAA standard.
  • Low self discharge rate and fast charging.

Why Choose EarthX

  • You will instantly remove 11+ pounds compared to the lead acid battery in your experimental aircraft! Now that is a huge weight savings.
  • Significant increase in cranking power. If you have been using the PC680, you will increase your CCA’s from 170 to 320 and the PCA’s from 520 to 680! Now that’s power to crank your engine!
  • Now you can easily have a backup battery and not worry about the additional weight. In fact, if you switch from a lead acid battery and add a backup battery, so you have a primary and a backup, you still have decreased your overall weight by 50%! Note that only the ETX680C/680/900/1200 have the aircraft specific BMS.
  • Innovative and sophisticated BMS designed and engineered with redundancy for safety, reliability, and performance. These are EXCLUSIVE features!
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Donald L Verified Purchase

EtX680 Lithium Aircraft Battery 79Mm

October 3, 2024

Chemtrail C Verified Purchase

EarthX ETX680C Lithium Aircraft Battery

September 25, 2024

This battery is a must have replacement for original “type” battery. Weighs almost next to nothing compared to the original!

Alan E Verified Purchase

EarthX ETX680 Lithium Aircraft Battery 76MM

June 18, 2024

Love it worth the money

Mike W Verified Purchase

EarthX EtX900 Aircraft Lithium Battery

June 14, 2024

Excellent

Bruce J Verified Purchase

EtX680 Lithium Aircraft Battery 79Mm

June 12, 2024

One third the size and double the capacity for fraction of the weight.

Rudolph O Verified Purchase

EarthX ETX1200 Aircraft Lithium Battery 20ah

June 5, 2024

I use the battery as a portable, no onboard charging. It seems to need charging after a single start cycle. . First couple of charge cycles the battery seemed to topout and/or settle at low voltage. Presently it settles to around 13.55v. I find it cranks far faster than an LA Gill.

Steven C Verified Purchase

EarthX ETX680C Lithium Aircraft Battery

April 18, 2024

Battery is light weight. However the terminal connectors layout are flawed. They are located on the centerline of the battery, with the terminal bolts flush with the case top. Makes a strong back clamp down arrangement a challenge. Concord and PC680 battery connections are located off center line.

Mike G Verified Purchase

EarthX EtX900 Aircraft Lithium Battery

March 20, 2024

Wow this battery is light, cranks the engine much faster than my old battery.

Bruce W Verified Purchase

EtX680 Lithium Aircraft Battery 79Mm

December 12, 2023

Really got a charge out of this battery.....The amount of weight removed from the front of the plane is significant

Pugetsoundflyers, I Verified Purchase

EtX680 Lithium Aircraft Battery 79Mm

October 13, 2023

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are any of these approved for certificated aircraft?

The Earth X Lithium Batteries are not TSO'd and are not designed for certified aircraft.

Q: Can the Earth X Lithium batteries be mounted in any direction and do they have any limitations as far as aerobatics?

Per the supplier: These batteries do not have any limitations. You are able to mount these in any direction you would like including upside down.

Q: Since Earth X batteries have the on-board computer, can they be charged with any run-of-the-mill battery charger?

Per vendor, these batteries can be charged with any charger other than a desulfating charger.

Q: Which Earth X battery is recommended for a Rotax 912 without the external alternator?

Per Earth X: We recommend either the ETX680 or the ETX900 for the Rotax 912 without external alternator. The ETX 900 is the upgraded version of the 680 but both would work.

Q: I need 28V, can I connect two of these Earth X batteries in series to obtain 28V?

Yes, you can connect up to two batteries in series, however they would only be 24 volts, not 28 volts, as each battery is 12 volts.

Q: What doe the C stand for in ETX680C. In other words, other than case size and weight, what is the difference between ETX680 and ETX680C?

We believe the "C" stands for Compact. The ETX680C is a smaller battery than the ETX680, but has the same voltage and cranking amps. The case dimensions are listed on the web page.

Q: Can two Earth X batteries be connected parallel to increasing capacity?

Per Earth X: Yes, you can connect two Earth X batteries in parallel.

Q: Can I add a EarthX Lithium battery in parallel to a lead acid battery?

No. The voltages are not the same and you will over charge the lead acid battery and drain the lithium.

Q: What EarthX battery is recommended to start a Lycoming IO-360?

ETX680 for normal climate or the ETX900 if they are in a colder climate or just want extra cold cranking amps.

Q: Hi, I have an RV9a with a IO 320. I currently use a led acid battery. Does the EarthX battery require a special charger in the plane? Or will the current altenator charging rate and volts work? Will the current charging system in my RV9a work with the EarthX? Will it over charge it? Thanks

The ETX Lithium battery is compatible with most modern lead-acid battery chargers or 4cell LiFePO4 battery chargers. By modern we mean a charger that automatically turns off when the battery is fully charged, a charger with a micro-processor, or a charger with multiple mode charging.
