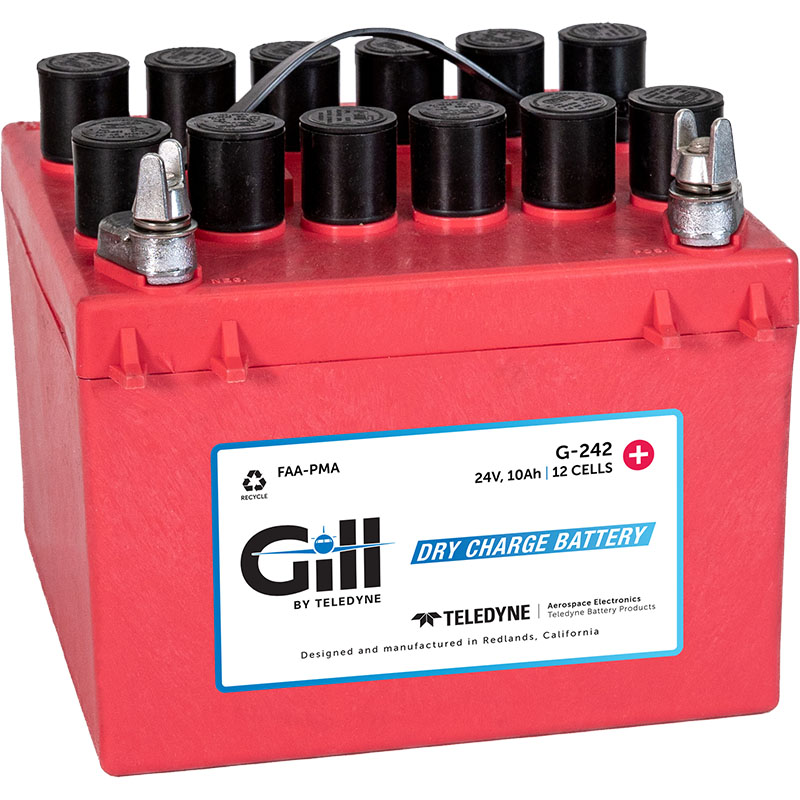

Gill G-242 Battery

Select Model:
with Acidwithout Acid
Price Includes GST
Quantity
Add to Wishlist

Overview

The Gill Electric Company was founded by Mr. Lawrence Gill in 1920, in Redlands, California, where the factory remains today. At that time, Gill Electric manufactured lead-acid batteries for the automotive industry. During the war years, Gill manufactured batteries for military ground vehicles and aircraft; some of these batteries are still in production today. Gill Electric improved the drycharged process which provides a fresh charged product when the electrolyte is added. Gill has become the OEM "original equipment battery" for Raytheon, Cessna, LearJet, Mooney, Piper, Ayres, Airtractor, Maule, Scheizer and others in the aviation industry and Gill continues to be the industry's choice for quality battery products.

Application Guide

Cessna models: 152, 172, 177, 182, 207, 210, 336, 337 Piper models: PA-23, PA-31, PA-36

Note: The data listed in this chart is intended as a suggested reference guide only. Some installations may vary and require airframe or battery box modification. Installations not shown on D.O.T. FAA/PMA listings will require field approval using FAA form 337 or FAA approved STC.

Warranty Info

Warranty Information

Specifications

  • Rate (Amps): 1 hr (C1) 8, 30 min (2C) 13, 60 sec/0 deg F (CCA) 106
    Model Weight Part No.

    G-242
    24 Volt
    With Acid

    27 Lbs. (full)
    Electrolyte (3 Qts.)
    11-01657

    G-242
    24 Volt

    W/O Acid

    27 Lbs. (full)
    Electrolyte (3 Qts.)
    11-01675
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Lindsay A Verified Purchase

Gill Battery G-242 With Acid

September 12, 2023

Battery arrived in just 5 days in perfect condition.

Ed R Verified Purchase

Gill Battery G-242 With Acid

August 31, 2023

Excelente servicio

Alejandro G Verified Purchase

Gill Battery Without Acid G-242

May 6, 2023

Customer very satisfied.

Caribbean A Verified Purchase

Gill Battery Without Acid G-242

January 26, 2023

Got my battery l am happe thank you frank

Frank E Verified Purchase

Gill Battery Without Acid G-242

July 16, 2022

Got my battery l am happe thank you frank

Frank E Verified Purchase

Gill Battery Without Acid G-242

July 16, 2022

Last gill 242 died after 14 months in service in my C210. Only $609.00 dollars and two months to replace it. Would get better service with two 12 volt lawnmower batteries.

Phil P Verified Purchase

Gill Battery G-242 With Acid

May 23, 2022

John W Verified Purchase

Gill Battery Without Acid G-242

December 9, 2021

Fast shipping! Excellent OEM battery for the Bo.

Keith B Verified Purchase

Gill Battery G-242 With Acid

July 27, 2021

Fine.

Storman
March 17, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the model with acid come with the acid already poured or on the side?

The model with acid will come with a dry battery (11-01675) and 3 qts of acid (11-00305) on the side.

Q: What is the capacity (A/H) for Gill G-242 battery?

Per the supplier: 10 amp/hour.

Q: What are the combined voltages for the cells?

24V 10 AMP.

Q: Are the Gill batteries with acid included shippable by air?

Yes, but only 1 qt per box and it is expensive.

Q: Are there any Battery Tenders that are safe with this battery?

Our part number 11-14350 is the recommended charger.
