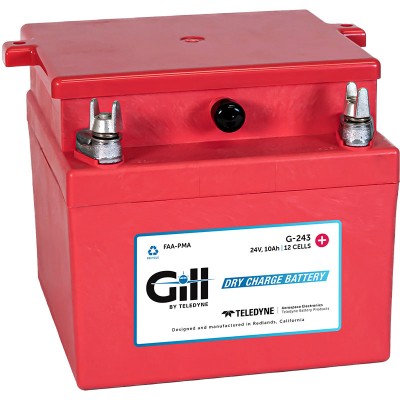

Gill G-243 Battery

Select Model:
with Acidwithout Acid
Price Includes GST
Quantity
Add to Wishlist

Overview

The Gill Electric Company was founded by Mr. Lawrence Gill in 1920, in Redlands, California, where the factory remains today. At that time, Gill Electric manufactured lead-acid batteries for the automotive industry. During the war years, Gill manufactured batteries for military ground vehicles and aircraft; some of these batteries are still in production today. Gill Electric improved the drycharged process which provides a fresh charged product when the electrolyte is added. Gill has become the OEM "original equipment battery" for Raytheon, Cessna, LearJet, Mooney, Piper, Ayres, Airtractor, Maule, Scheizer and others in the aviation industry and Gill continues to be the industry's choice for quality battery products.

Application Guide

Manufacturer Model PMA SUP. #
Cessna 152, A152, F152, FA152, 172N, 172P, 172Q, 172R, 172RG, 172S, F172N, F172P, FR172K, R172K, 182Q, 182R, 182S, 182T, F182Q, R182, T182, T182T, TR182, A188B, T303 70
Cirrus SR20, SR22, SR22T, SR 20, SR 22, SR 22T 70
Commander 114B, 114TC 70
Diamond DA 40, DA 42 70
Maule M-4-180V, M-6-180, M-6-235, M-7-235, M-7-235A, M-7-235B, M-7-235C, M-7-260, M-7-260C, M-7-420A, M-7-420AC, MT-7-235, MT-7-260, MT-7-420, MX-7-160, MX-7-160C, MX-7-180, MX-7-180A, MX-7-180AC, MX-7-180B, MX-7-180C, MX-7-235, MXT-7-160, MXT-7-180, MXT-7-180A, M-8-235 70
Mooney M20J, M20K, M20L, M20M, M20R, M20S, M20TN 70
Piper PA-28-161, PA-28-181, PA-32-301FT, PA-32-301XTC, PA-32R-301 (HP), PA-32R-301(SP), PA-32R-301T, PA-46-310P, PA-46-350P 70
Sikorsky 269C, 269C-1 70
Cessna 152, A152, 172N, 172P, 172Q, 172R, 172RG, 172S, F172N, F172P, FR172K, R172K, 182S, 182T, R182, T182, T182T, TR182, A188B, P210N, T303 58
Cirrus SR20, SR22, SR22T 58
CPAC, Inc. 114B, 114TC 58
Diamond DA 40, DA 42 58
Maule M-4-180V, M5-180C, M-5-235C, M-6-180, M-6-235, M-7-235, M-7-235A, M-7-235B, M-7-235C, M-7-260, M-7-260C, M-8-235, MT-7-235, MT-7-260, MX-7-160, MX-7-160C, MX-7-180, MX-7-180A, MX-7-180AC, MX-7-180B, MX-7-180C, MX-7-235, MXT-7-160, MXT-7-180, MXT-7-180A 58
Mooney M20J, M20K, M20L, M20M, M20R, M20S, M20TN 58
Piper PA-28-161, PA-28-181, PA-32-301FT, PA-32R-301(SP), PA-32R-301 (HP), PA-32R-30 1T, PA-32-310XTC, PA-46-350P 58
True Flight Holdings AA-5, AA-5A, AA-5B, AG-5B 58

Specifications

  • Rate (Amps): 1 hr (C1) 10, 30 min (2C) 17, 60 sec/0 deg F (CCA) 150
    Model Weight Part No.

    G-243
    24 Volt

    With Acid

    28 Lbs. (full)
    Electrolyte (3 Qts.)
    11-01658

    G-243
    24 Volt

    W/O Acid

    28 Lbs. (full)
    Electrolyte (3 Qts.)
    11-01678

Reviews

A QUALITY BATTERY. EASY TO ADD ACID AND CHARGE.

William J Verified Purchase

Gill Battery G-243 With Acid

June 16, 2024

Petr H Verified Purchase

Gill Battery G-243 Without Acid

September 21, 2022

Jeff B Verified Purchase

Gill Battery G-243 Without Acid

September 12, 2022

Outstanding service and quick delivery! Thank you! Pax Christi, carpe diem!

Miles J Verified Purchase

Gill Battery G-243 With Acid

September 1, 2022

Battery was fine

Daniel M Verified Purchase

Gill Battery G-243 With Acid

August 16, 2022

Delivered promptly without complications as promised.

Brad M Verified Purchase

Gill Battery G-243 With Acid

July 9, 2022

Battery arrived very fast and all was as advertised

John
December 14, 2020

As represented and on time. Thanks for being on the east cast.

Tom M
November 30, 2020

Order was packed well and delivered timely.

John M
August 19, 2020

Great job for sure.

Bijan N
August 15, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: When ordering the Gill G-243, we have an option for with acid or without acid. I do not have any acid, so do i need to order the battery with acid?

Yes, if you do not already have the electrolyte, we recommend buying the "With Acid" version since it will be shipped with the required amount of acid to use the battery.

Q: I need to replace my old g243s battery. I only see a g243 in your ad. What is the difference?

The difference between the G-243S and the G-243 is that the 243S was a sealed battery and the 243 is a wet battery that you will need to pour the electrolyte into. The G-243S was replaced with the Gill 7243-14 LT battery. See our Part # 11-13534 to order this battery.

Q: If I buy the Gill G-243 battery without acid, will it be shipped overseas as dangerous goods?

No, the battery without the acid is not considered dangerous goods for shipping.

Q: What are the dimensions of the Gill battery G 243S please?

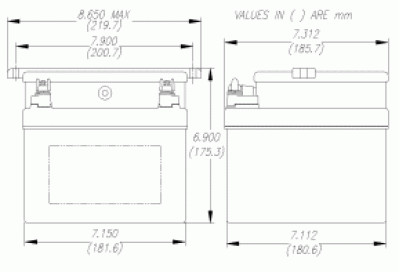

We have added a Spec Sheet to the documents section of this web page. It contains the Drawing for the G-243.

Q: Is the battery with acid shipped with the battery already filled or is the acid included in a separate container?

The acid would be shipped in a separate container with the G-243 battery.

Q: Hello. What is the shelf life time of a G-243 battery w/out acid? Same question about the electrolyte kept in the original sealed container? Basically, if I buy this combo, how long can it sit unused? Thank you.

The acid does not have a shelf life limitation so that could potentially sit unused forever.
