Spt's Glow Strips 14V / 28V (El Glare Shield Lighting In Green / White)
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
|
Superior Panel Technology has developed a brighter, more uniform and longer lasting Glare Shield lighting system.

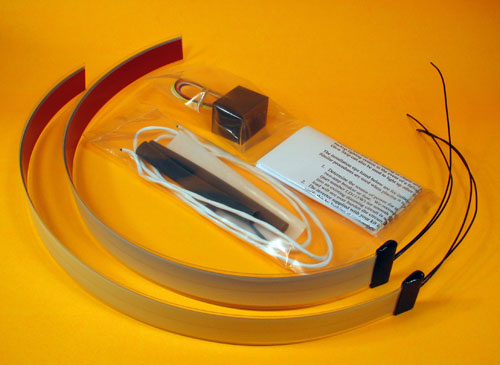

The 18” x 1” Glow Strip electroluminescent lamps provide a beautiful fluorescent-like aviation green or a white light output. The ultra-thin lamps (.065 including the adhesive backing) are very flexible and conform to the curves of the underside of the glare shield. The Glow Strips meet the FAA 23.853 burn test. Inverters ARE included with the kit. “The recommended dimmer for the Glow Strips is the PWM Dimmer by SPT. Optional 14V or 28V battery back-up systems are available and recommended. See Accessories. SPT OFFERS AN INDUSTRY LEADING LIFETIME WARRANTY ON THE GLOW STRIP LAMPS AND A 5 YEAR WARRANTY ON THE PWM DIMMERS! |
Documents
Reviews

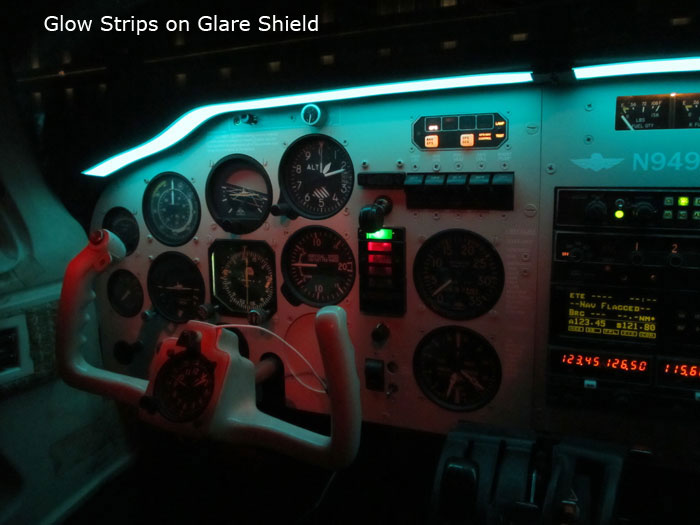

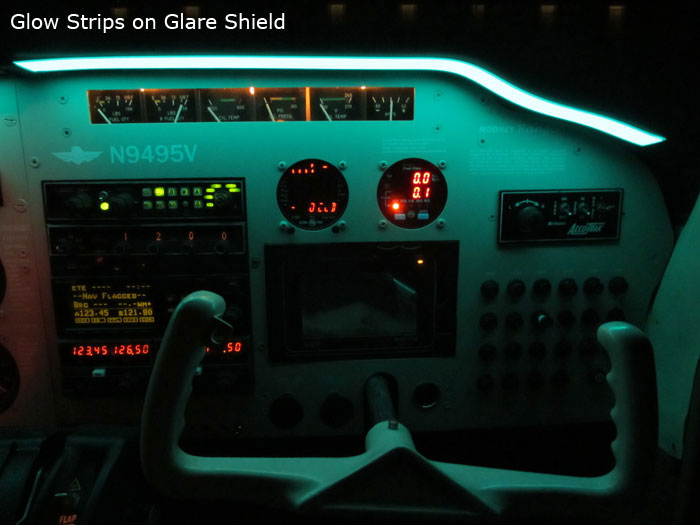

Simply the best panel flood lighting solution out there. Redid my 182s eyebrow and wanted something to replace the tired stock floods. Kit was easy to install and is very high quality. Very satisfied with the results.
SPTs Glow Strip (green) with dimmer is by far the best glare shield panel lighting Ive seen. Much better light than the LEDs and with no loss of outside visibility at night on my 47 year old eyes. Highly recommend this product.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The SPT GLOW strips are not covered by teh Ashby PA24 STC. The lights that are included with the Ashby PA 24 are PN: 05-03994.
Yes these are rated up to 28v because a 24v system can spike up that high.
These do not have FAA approvals, you would need to speak with your IA or A&P to determine if they can be installed.
18" long by 1" wide.
Per the manufacturer: Yes they can be trimmed up 4 inches on each side but the recommended that max output to 30 mins. most often the lamp is typically flow at 60%.
