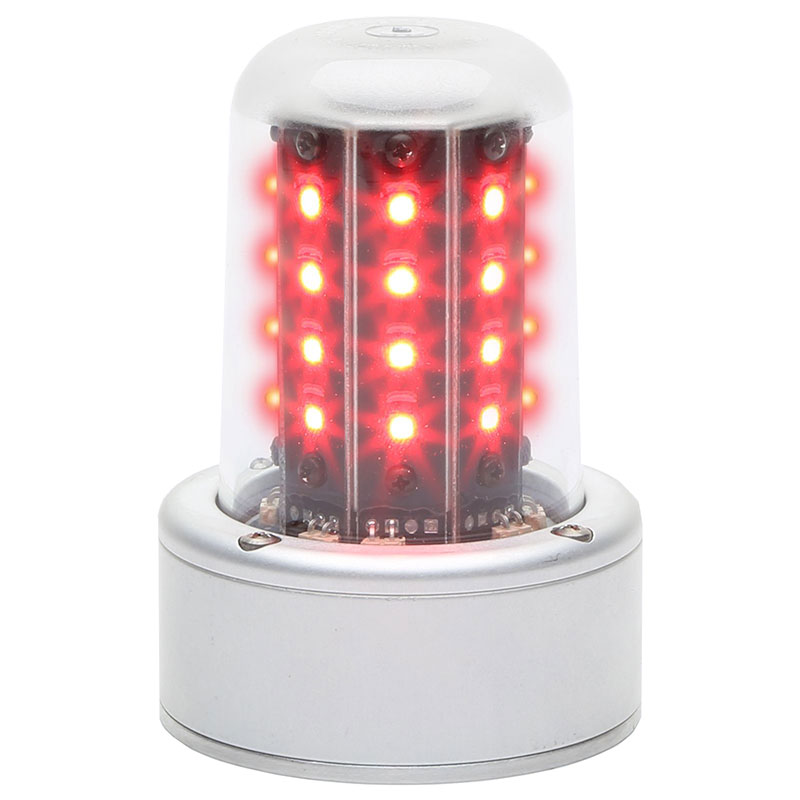

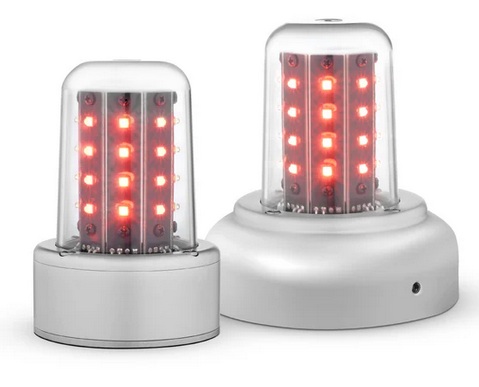

Whelen Red LED Beacon 71080 Series

From $649.00 to $797.00
Prices below incude GST
Mfg Model # Description Part Number Price Buy
7108000LED Beacon Red 28V (2.6” dia base, Robinson Helicopter Only)
11-06173
$713.90
Quantity
7108001LED Beacon Red 28V (2.6” dia base)
11-06174
$806.30
Quantity
7108004LED Beacon Red, 28V (5 hole mounting adapter, flying leads)
11-07687
$876.70
Quantity
7108005LED Beacon Red, 28V (3.75" dia base)
11-07689
$876.70
Quantity
7108007LED Beacon Red, 28V (3.75" dia base, MS connector, Lower Mount)
11-07691
$876.70
Quantity
7108008LED Beacon Red, 28V (5 hole mounting adapter, MS connector)
11-07693
$876.70
Quantity
7108014LED Beacon Red, 28V (5 hole mounting adapter, flying leads, Lower Mount)
11-07688
$876.70
Quantity
7108015LED Beacon Red, 28V (3.75" dia base, Lower Mount)
11-07690
$874.50
Quantity
7108017LED Beacon Red, 28V (3.75" dia base, MS connector, Lower Mount)
11-07692
$876.70
Quantity
7108018LED Beacon Red, 28V (5 hole mounting adapter, MS connector, Lower Mount)
11-07694
$876.70
Quantity
7108030LED Beacon Aviation Red. 28V (Airbus Helicopter)
11-19445
$825.00
Quantity
7108051LED Beacon Red, 14V (2.6” dia base)
11-07686
$808.50
Quantity
7108055LED Beacon Red, 14V (3.75" dia base)
11-09909
$876.70
Quantity
Subtotal $0.00
Add to Wishlist

Overview

71080 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class I - 150 effective candlepower). They are designed to replace a range of products. Refer to models and descriptions below.

ELECTRICAL:
Models: -01, -04, -05, -14, -15, -20, -51, -55: Ship with 12” Flying Leads Models: -07, -17, -08, -18: MS3102R10SL-3P Connector

MECHANICAL:
Models: -04, -14, -08, -18 are designed to replace existing beacons utilizing a 5-Hole mounting pattern on a 4.656 diameter bolt circle (Whelen 70285 series/7090501 series or 70900 with A440 adapter). Models: -05, -15, -07, -17 are 3 ¾” opening designed to fit inside an A440 mounting adapter, mounting holes to fit in place of rotating beacons, Whelen Model HRCFA, or 7090004, -05 series LED beacons.

Specifications

  • Current: 0.87 amps average, 3.0 amps peak
  • Weight: 0.65 lbs. (295gm) (-01 & -51)
  • Lens: Clear polycarbonate
  • Dimensions: 2.6” (66mm) diameter, exposed height, 3.74” (95mm) (-01 & 51)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Fit and worked perfectly

Chris W Verified Purchase

Whelen 7108055 14V Anti-Collision Light

November 2, 2024

Bright as the sun and a perfect fit for my old Whelen strobe on my V35B. The base is flush with the fuselage so maybe Ill gain 1/2 knot.

John R Verified Purchase

Whelen 7108055 14V Anti-Collision Light

August 29, 2024

Dennis S Verified Purchase

Whelen 7108055 14V Anti-Collision Light

January 6, 2024

Didn’t light up out of the box. Then couldn’t return it to spruce, had to deal with Whelen directly!

Andrew P Verified Purchase

Whelen 7108051 LED Red 14VDC

January 3, 2024

Mario N Verified Purchase

Whelen 7108051 LED Red 14VDC

December 19, 2023

Antonio M Verified Purchase

Whelen 7108001 28V LED Red Rot

November 28, 2023

excellent product, I upgraded from the old rotary style beacon to the LED flasher and was amazed at the brightness.

Russell M Verified Purchase

Whelen 7108055 14V Anti-Collision Light

October 31, 2023

This new light is bright as all hell. Recommend black tape inside the clear cap on the leading edge to help with prop reflection. No more interference in the headsets!

Casey M Verified Purchase

Whelen 7108001 28V LED Red Rot

August 22, 2023

The previous OEM bulb would put over 8a of draw on the electrical system and barely illuminate the red glass globe, this one is 10000% brighter, illuminates the inside of the hangar in broad daylight and draws such less power the instruments dont even register a drop. See and BE SEEN!

Barry M Verified Purchase

Whelen 7108051 LED Red 14VDC

August 16, 2023

Love the beacon. Really bright. Eliminated the old power supply.

Charles D Verified Purchase

Whelen 7108051 LED Red 14VDC

June 11, 2023

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you verify that 7108051 is the correct choice for a 1974 Cessna 182?

Per the manufacturer: the 7108051 is the correct part for your 182 if no modifications have been made to your aircraft.

Q: Does the LED beacon require the original flasher installed in the aircraft or does it have a flasher built-in?

Powered with aircraft power, no separate power supply required.

Q: What is the difference between Part #7108014 (LED red, 28VDC & 5 hole lower mount (150 ecp)) and Part #7108018 (LED red, 28 VDC, 5 hole lower mount (150 ecp))?

The 7108014 has 12" wire attached to it for installation, and 7108018 has an MS3102R10SL-3P connector wired to the unit for installation. Order 7108018 only if you already have this MS connector on your aircraft.

Q: When I put Beacon for Piper Cherokee this is what came up, would this fit a 1966 Piper Cherokee 180?

Per Whelen, yes part # 11-09909 would work in a Piper Cherokee.

Q: On the 7108055 unit does the adapter come with the unit?

Part number 11-09909 does have a 3-3/4" adapter with the unit.

Q: According to the manufacturer I should purchase part number 01-0771080-05 for my application. Which part number should I select from your table?

Whelen part # 01-0771080-05 is our part # 11-07689.

Q: Will the 7108055 fit a 1969 Cessna 182?

Per Whelen: That model year Cessna (if it is original) has the smaller fin cap which would accommodate the part# 11-07686 product.

Q: Are all parts (including pigtail assembly) included?

It will come with a length wire and connector as shown in the Installation PDF.

Q: 1965 Cessna 150F ser. 15062556. I have the rotating beacon with mirrors and motor. Which drop in beacon will work? Thanks

Yes, these are the same.

Q: What is the light output for the 7180 series 28 Volt red beacon - in lumens or candle power

The 01-0771080-00 has a certification of TSO-C96a Class I. The Class I means that this is certified to 150 Effective Candle Power output.
