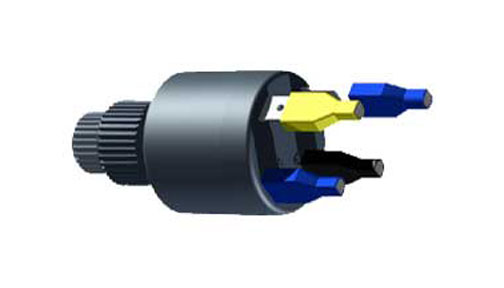

Maxdim Duo Dual Dimmer Controller Model - C
MFR Model# 9100-001-C
Overview
|
12 to 35 VDC, 0-15 A per channel, Control 1050 Watts In a 1-1/4 Inch Diameter Package. Complete compact, light weight, powerful, solid state dimmer.
Model C accepts spade terminals |
Features
- Dual Channel control of aircraft Lighting
- Aircraft instrument panel lighting, 2 channels
- Comply to Cessna AD 93-24-15 about cockpit fires. We have the AMOC allowing this installation for the MaxDim.
- Excellent control of Nulite instrument lighting
- Excellent LED control
- Smaller DC motors
- STC, PMA, RTCA/DO-160E SEC 21: RFE Qualified
- Instrument Panels
- Nulite dimmers
- UMA dimmer
- Avion Glare shield dimmer
- Boat Cruiser Cabins
- LED lit panels
- Hundreds of DC Lighting Control applications
- Assembled in the USA
Specifications
- Voltage Range: 12VDC to 35VDC
- Max Current: 15 A per channel two channels
- Controlled Output: 12-35 VDC, 0 to 15 A
- Two channels
- Capacity:180 Watts @12 VDC each channel, 360 Watts @24 VDC each channel, 420 Watts @28 VDC each channel, 525 Watts @35 VDC each channel
- Install with Spade terminals
- Potentiometer Rotation: 270° Rotational Life: 500K Turns
- Operating Temperature Range: -30° C to +65° C
- Internal temperature Protect: +85° C
- Storage Temperature: -40° C to +100° C
- Maximum Internal Temperature: @15A +15° C
- Enclosure Material: Bayer FR 110 Resin Meets UL 94
- Flame Rating: V-2 (0.03in) V-0 (0.059in) 5VB (0.098in) 5VA (0.13in)
- Conforms to RTCA/DO-160E SEC 21: RFE (EMI)
- One Year limited warranty
- Weight: 0.58 oz (16.6g)
- What's in the box?MaxDim Duo unit, installation instructions, color coded terminals,reference panel label, STC printout for your logs, installation template, and knobs.
Documents
Reviews
Used for the AMOC for AD 93-24-15. It was a fraction of the price of the OEM Cessna replacement rheostat
