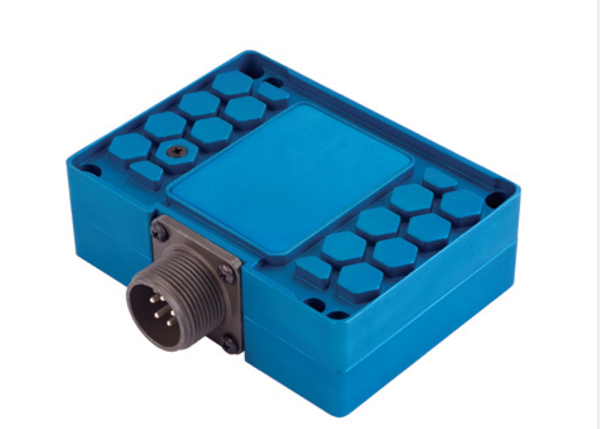

True Blue Power Converter 24-36 VDC TC120

From $656.00 to $659.00
Prices below incude GST
Description PN Price Buy
24–32 VDC in, 5–18 VDC out, 120 watts, With remote on/off feature
11-14449
$721.60
Quantity
24–32 VDC in, 5–18 VDC out, 120 watts
11-14270
$724.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The highly efficient TC120 DC-to-DC Converter produces 120 watts of power from an aircraft’s 28 VDC input. Engineered to run cooler and featuring a fanless design, the TC120 saves energy and reduces weight. It produces enough energy to power electronic equipment throughout the aircraft, including in-seat, cabin and cockpit power applications.

Features

  • Supplies 120 watts of 5 to 18-volt power to electronic equipment, including USB charging ports, lighting and cabin accessories
  • Compact design — lighter and smaller than competing units
  • Lightweight — 0.6 lbs
  • Remote On/Off
  • 120 watts output power
  • >90% efficiency
  • Input Voltage: 24 – 32 VDC
  • Input Current: 5.0 A Nominal
  • Output Voltage: 5 – 18 VDC
  • Input transient, overload, and short-circuit protection
  • Rated from –65°F to +160°F (-55°C to +70°C)
  • FAA TSO-C71 certified and RTCA DO-160G qualified
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Input Voltage: 24 – 32 VDC
  • Input Current: 5.0 A Nominal
  • Output Voltage: 5 – 18 VDC
  • Output Power: 120 watts
  • Efficiency: >90%
  • Weight: 0.6 lbs
  • Altitude: 55,000 ft
  • Temperature: -65°F to +160°F (-55°C to +70°C)
  • Protection: Input transient, overload, short-circuit protection
  • Mating Connector: MS3106A-14S-5S
  • Case: Anodized aluminum, blue
  • Certification: FAA TSO-C71 certified / RTCA DO-160G qualified
