LED Super Dome Light By Spt

Select Color:
Black Anodized Clear Anodized
Select Dimmer:
No DimmerDimmer with Built-In Internal Circuit Breaking Switch
Price Includes GST
Quantity
Add to Wishlist

Overview

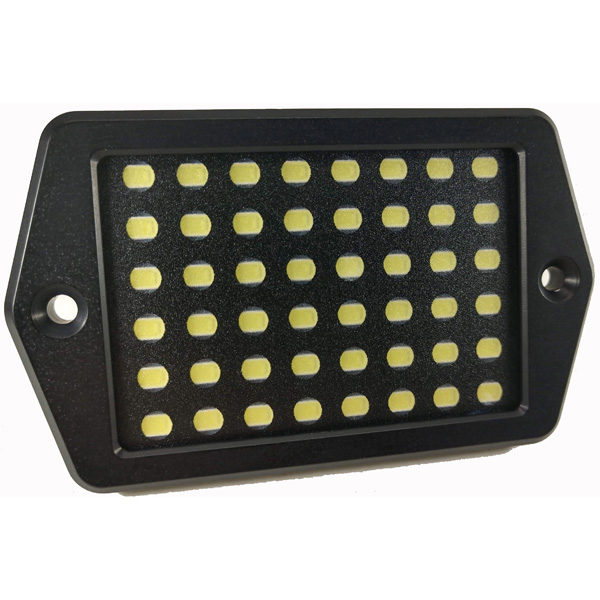

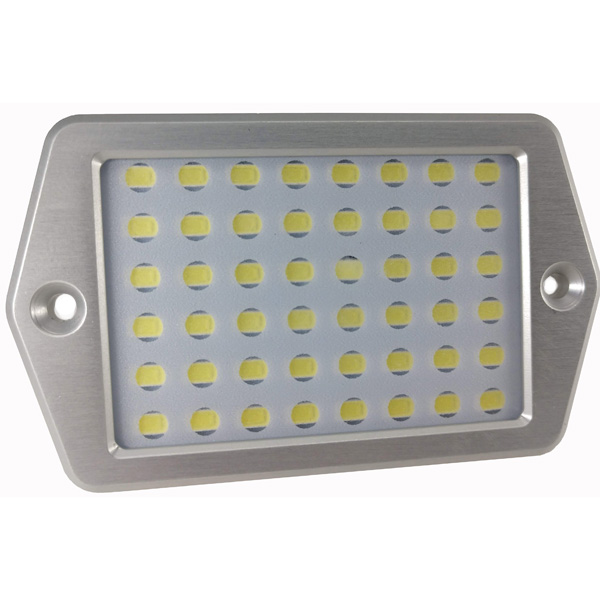

The Superior Panel Technology Super Dome Light (SPTSDL) is an ultra-bright dome light that can be used in a variety of aircraft locations: Cabin, Baggage, Door entry, etc. The SPTSDL super dome provides a bright, wide angle, cool-white flood light, A dimmer is highly suggested for use with this light. The recommended dimmer is the Superior Panel Technology dimmer model SPTPWMLEDS. This pulse-width-modulating dimmer that will provide even, full range dimming from barely visible to full bright. This dimmer has a built in circuit breaking off switch which allows you to connect directly to a battery with an inline fuse so that you can turn on the light without turning on the master switch (if desired). The precision machine aluminum bezel on the light is available either in black (SPTSDLB) or clear (SPTSDLC) anodizing.

Specifications

  • Input Voltage: 14-VDC
  • Input Power: 4 watts max; .25 amps @ 14 VDC
  • Weight: 1.41 oz
  • Dimensions: (not including connector) 2 inches wide X 3.33 inches long X .25 inches thick

In The Box

  • 1 - Super Dome Cobb LED Light (SPTSDL)
  • 2 - 6/32 100 degree stainless c/s screws
  • 2 - Two 6/32 nylon locknuts
  • 1 - Pulse width modulation dimmer (SPTPWMLEDS)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the clear lens in front of the LED diodes glass or acrylic/polycarbonate?

The SPTSDLB lens is made from a flame retardant polycarbonate material.

Q: Are these FAA approved for use in certified aircraft?

No, these lights are not FAA Approved.
