Whelen Cockpit Utility Light Assembly A315-Hi Series

$148.23/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-03678
MFR Model# 01-0770113-01

Overview

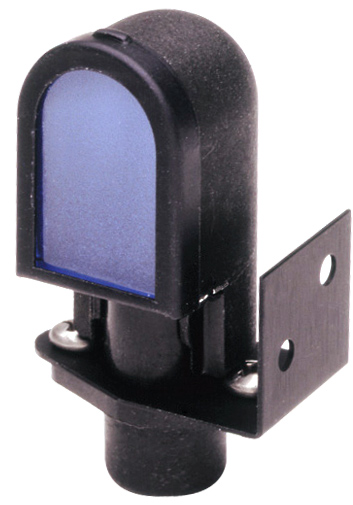

The A315-HI series cockpit utility light assembly rotates for convenience in reading maps and illuminating instrument panels. Furnished with a right angle bracket for ease of mounting. Available in instrument red (28v), instrument white (14v), and instrument white (28v). Uses a 14 VDC #1414 or a 28 VDC #1495 lamp.

Specifications

  • Drawing Number: 70113
  • Weight: 0.07 lbs. (32gm)
  • Height: 2.2” (56mm)
  • Depth: 0.93” (24mm)
  • Width: 0.87” (22mm)
  • Power Consumption: 0.46 amps @ 14 VDC, 0.3 amps @ 28 VDC

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the frame on this Whelen cockpit utility light assembly A315-HI series plastic or metal?

This unit has a plastic frame and metal attaching bracket.

Q: Is this Whelen cockpit utility light assembly A315-HI an incandescent lamp or led lamp?

It is an incandescent lamp.
