Whelen LED Wingtip Recognition Light - Mooney

Select Aircraft Voltage
14V28V
Price Includes GST
Quantity
Add to Wishlist

Overview

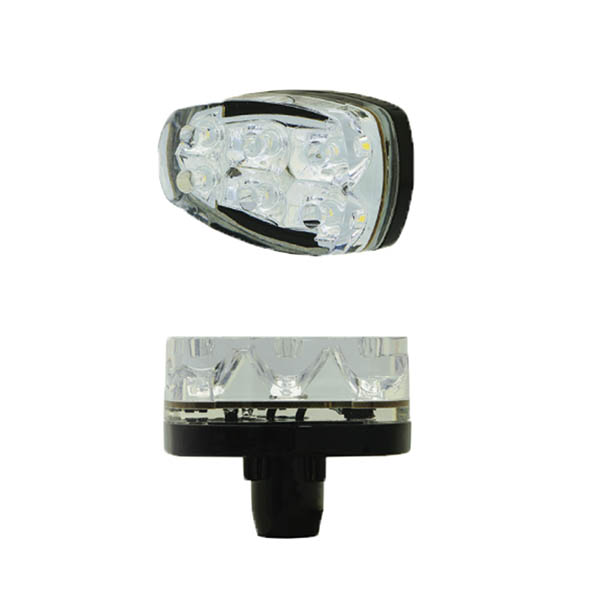

This LED Wingtip light was designed to be a direct replacement for 70303 legacy halogen lamp in the money wingtips.

Note: Select voltage of LED specific to your aircraft voltage, not voltage of lamp being replaced. 28V aircraft must use the 28V LED.

Features

  • No more melted lenses
  • 10,000 hour life
  • Increased safety of flight (operate at all times without fear of premature failure)
  • Install as a minor alteration (Direct replacement for the legacy filament lamp)

01-0770303-10

  • LED Recognition Light: 14 VDC
  • Minimum: 0.14 Amps @ 14VDC
  • Typical: 0.17 Amps @ 14VDC
  • Maximum: 0.2 Amps @ 14VDC

01-0770303-20

  • LED Recognition Light: 28 VDC
  • Minimum: 0.06 Amps @ 28VDC
  • Typical: 0.085 Amps @ 28VDC
  • Maximum: 0.11 Amps @ 28VDC
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Northwest A Verified Purchase

Whelen Mooney LED Recognition Light 28V

April 3, 2024

Installed seems to work as indicated and temp is at 82 degrees

Robert G Verified Purchase

Whelen Mooney LED Recognition Light 28V

May 25, 2023

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this LED replacement for the halogen recognition light brighter, the same, or not as bright?

It is brighter.

Q: My Mooney is 28v. Will this replace the 70303 on my airplane?

This is a 14v light so it would not work on your aircraft.

Q: Will this Whelen Mooney Led Wingtip Recognition Light 14V 01-0770303-10 work in a 28VDC system?

No, these are designed for 14VDC systems.

Q: Does the pair of lights come, left and right?

These are sold individually.

Q: Are these the red and green nav lights?

This is a white recognition light for the Mooney wingtip. This is not a red or green nav light.
