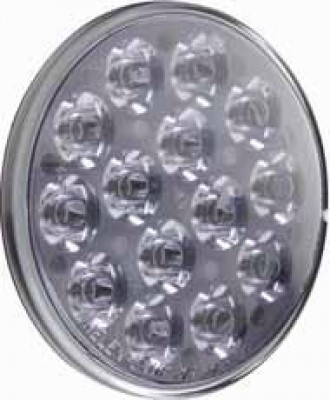

Whelen Parmetheus™ Plus LED Replacement 28V Landing Light - PAR 36 - P36P2L
MFR Model# 01-0771833-20
Overview
|
FAA-PMA Approved Parmetheus PAR36 LED lights are a drop-in replacement for outdated Halogen lamps. PMA Approved, lightweight, low-current and moisture resistant, they provide stable light output for thousands of operating hours. These LED lights are 40% brighter output than the original Parmetheus Series assemblies. LED lighting is the ideal technology for aviation applications. Whelen LED lights are time and field-tested for reliability and long-life performance under the tough conditions required by Fire, Emergency, DOT and Law Enforcement professionals around the world. STC-PMA |
Features
- Direct replacement for outdated PAR36 Halogen and HID lamps.
- First commercially available PAR36 LED for Aviation applications.
- 10,000 hour operating life.
- Available in Landing and Taxi versions.
- Convenient “Drop In” design for ease of installation: Power wiring attaches to brass screw terminals; Weight is virtually identical to previous PAR36 lamps; Assembly design includes clocking notch.
- Polycarbonate, replaceable, hard-coated outer lens.
- Metal, heat dissipating coated housing.
- Whelen TIR™ (Total Internal Reflector) technology rivals strobe in intensity and effectiveness.
- Proudly designed and manufactured in the USA.
- Five year warranty.
Specifications
- Model: P36P2L
- Type: Landing (Spot Light, 10 degree)
- Amps: .6
- Volts: 28 VDC
- Size: 4.28" Round x 1.75" Face to Screw terminal
Documents
- STC (PDF)
- PMA Supplement (PDF)
- Install Manual (PDF)
- Cross Reference Replacement Guide (PDF)
- Product Brochure and Replacement List (PDF)
- Drawing (PDF)
Reviews
As described and bright
Verified Purchase
Whelen LED Parmetheus Plus PaR36 28V Land P36P2L
Verified Purchase
Whelen LED Parmetheus Plus PaR36 28V Land P36P2L
Verified Purchase
Whelen LED Parmetheus Plus PaR36 28V Land P36P2L
Installed on our piper archer III right wingtip landing light. I did a side-by-side comparison of the old left wing tip, landing light and the new right wing tip landing light, the Whelen Prometheus plus PAR 36 28v is significantly brighter and casts a much greater light halo. I am extremely pleased with the purchase. We also purchased a replacement for the left wing tip landing light and had a problem with that particular bulb. I called Welen support and dealt with a guy named Jeff and he immediately agreed to ship out a new bulb. Might be the best customer service experience I have ever had. I am so grateful for Whelen, their product support and their products!
Installed myself, I think I messed something up because it became very “dim” after 2 weeks (?) I called, did some troubleshooting but nothing seemed to make the light bright again. Wheeler sent me a brand new light, then I messed the gasket up and they sent me another one of those. Light is great now, and all the hassle, Whelen is VERY easy to deal with. They paid all postage…I’m Delighted.
Verified Purchase
Whelen LED Parmetheus Plus PaR36 28V Land P36P2L
good parts
Verified Purchase
Whelen LED Parmetheus Plus PaR36 28V Land P36P2L
Verified Purchase
Whelen LED Parmetheus Plus PaR36 28V Land P36P2L
A dramatic improvement over incandescent bulbs, and a simple, one screw installation. There are two points to watch for: 1) The terminals are not marked + or -, so when you connect your light, there is a 50-50 chance you got it backwards. Check to make sure it works before you reinstall it. If it doesnt, just switch the connections. 2) Note that the identical lens comes in both 14V and 24V. If you get the wrong one, it wont work...dont ask me how I know! The exchange policy works well, and is easy to accomplish.
Great light easy Install
I ordered this for a customer/friend w a Cirrus. When he got in to change out his “dead” incandescent bulb he discovered a loose wire was the culprit. He asked about returning the bulb. I suggested he install it and if he didn’t like it I’d buy it back. He’s SOLD! Won’t even CONSIDER going back. Awsome, one time installation that makes a HUGE difference in your night flying AND... you can leave it on (low amp, 15,000+ life and visible in the day) for safety.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per Whelen: This will have 60,000 clandela which is equivalent to a 250 watt bulb.
Yes, this Par 36 lamp is the correct size.
As long as the installed light on the 601P is a PAR36 lamp, this will be a plug and play replacement.
These are priced and sold individually.
The Beechcraft Baron uses a PAR 36 style light, and since this is a PAR 36 light, this should fit. Please confirm your aircraft voltage to be sure you order the correct version, 14v or 28v.
Most of the time these are drop in replacements, meaning no circuit breaker change required, however, if in doubt, please discuss with your A&P to ensure your install is correct for your aircraft.
The Cessna 182 uses a PAR 36 size bulb. This bulb is 28v, so please verify your aircraft voltage to ensure you order the correct one.
These assemblies are rated in candlepower and this would be 56,000 Candlepower.
Yes, 28v and 24v are interchangeable. 28v can be used on 24v aircraft.
The output on the 12VDC assembly and 28VDC assembly will be the same. The total output will be 56,000 Candlepower. In regards to the AMP draw on the 28VDC system the current draw is 0.6 AMPS and on the 12 VDC assembly it will be 1.2 AMPS.
