Rotax 503 Ul Crankshaft | Main Bearings | Pistons Parts

From $0.54 to $39.85
Prices below incude GST

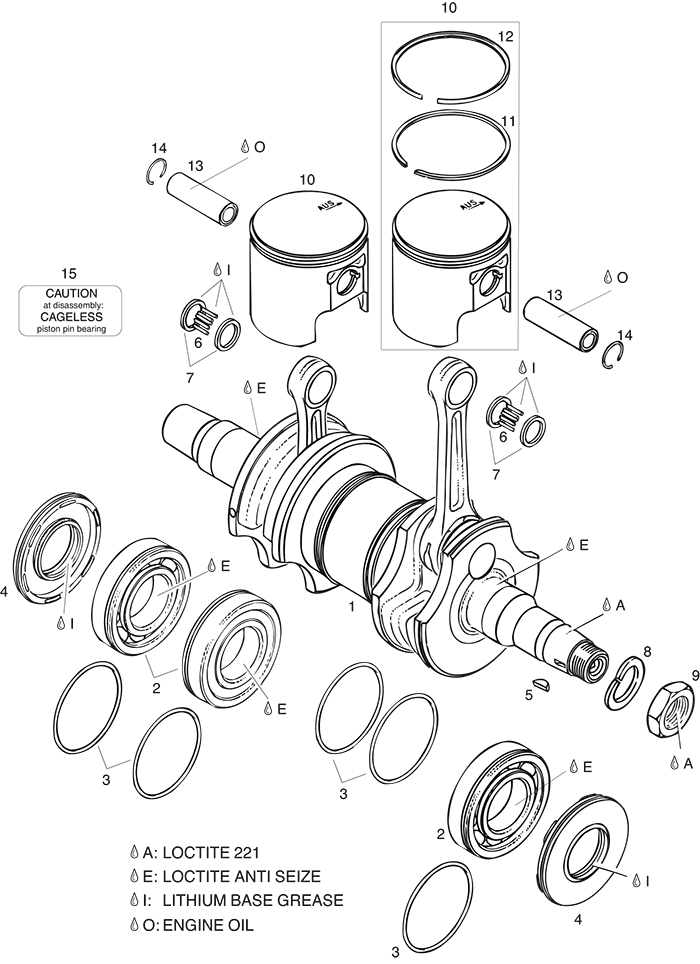

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty PN Price Buy
5246-055WOODRUFF KEY 3X3,7 DIN 68881
15-00242
$2.53
Quantity
8945-759LOCK WASHER 221
15-03367
$1.21
Quantity
9842-239HEX. NUT M22X1,51
15-01245
$9.24
Quantity
11915-852RECTANGULAR RING 72,50 MM2f
15-02817
$43.84
Quantity
14945-735CIRCLIP 184g
15-03357
$0.59
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   with 2 rings, standard
  • b   with 2 rings, 1st oversize
  • c   with 2 rings, 2nd oversize
  • d   Standard Size
  • e   1st oversize
  • f    2nd oversize
  • g   NOTICE use only once!


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the price of 15-04370 cover all the parts shown? ROTAX 503 UL CRANKSHAFT | MAIN BEARINGS | PISTONS PARTS

Part# 15-04370 is the entire assembly. If you keyword search 15-04370, you will see a photo of what will ship.
