Home / Engine Parts / Carburetors & Parts / Bing Rotax Parts /Rotax Carburetor - Single Parts 914 Series
Main Image

Rotax Carburetor - Single Parts 914 Series

7 Reviews 0 Answered Questions
From $0.27 to $219.95
Prices below incude GST

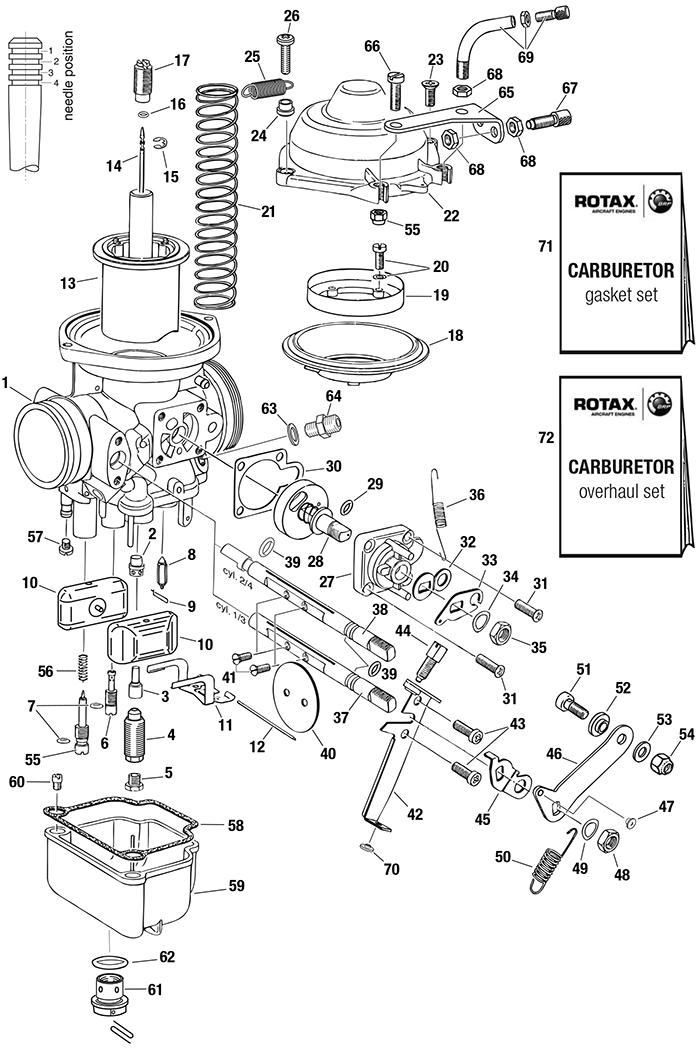

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty 914 UL Part Number Price Buy
2961-200DIFFUSER1
15-03700
$20.41
Quantity
3261-607NEEDLE JET 2.721
15-00328
$20.35
Quantity
4963-135MIXING TUBE1
15-03740
$115.45
Quantity
5268-997MAIN JET 1561g
15-00421
$15.95
Quantity
5268-996MAIN JET 1581b,g
05-02011
$15.95
Quantity
5268-985MAIN JET 1601h
05-02003
$15.95
Quantity
5268-993MAIN JET 1641b,h
15-00417
$15.95
Quantity
6963-143IDLE JET 351
05-02019
$42.35
Quantity
7831-713O-RING 3.2X0.82f
15-00929
$5.33
Quantity
8261-708FLOAT NEEDLE VALVE W. VITON TIP1f
15-00344
$54.56
Quantity
9261-710FLOAT NEEDLE CLIP1
15-09491
$25.85
Quantity
11861-192FLOAT BRACKET1
15-01763
$21.45
Quantity
12929-702PIN1
15-03016
$3.08
Quantity
13961-230CARBURETOR PISTON1
15-03707
$241.94
Quantity
17961-293FIXATION SCREW1e
15-03721
$26.24
Quantity
19961-240RETAINING RING1
15-03708
$64.62
Quantity
20841-210 COMBINED SCREW M4X124
15-01164
$4.12
Quantity
21938-365THROTTLE VALVE SPRING1
15-03131
$24.04
Quantity
22961-250CHAMBER TOP1
15-03709
$170.23
Quantity
23841-341COUNTERSUNK SCREW M5x121
15-09633
$3.69
Quantity
24847-910 DISTANCE SLEEVE1
15-01387
$20.35
Quantity
25838-242SPRING1
15-01093
$17.05
Quantity
27961-280CHOKE HOUSING1
15-03718
$48.95
Quantity
28961-273CHOKE VALVE ASSEMBLY 1/31a,f
15-03175
$1.40
Quantity
29950-420O-RING 5X1.51
15-03401
$6.44
Quantity
30950-030GASKET1
15-03382
$6.22
Quantity
32848-241CHOKE LEVER INSIDE1
15-09178
$4.83
Quantity
33848-245CHOKE LEVER OUTSIDE1
15-01404
$5.88
Quantity
34845-035SPRING WASHER 8.3/13.6/0.42
15-01288
$18.15
Quantity
35942-290HEX.NUT M8X1 / TORQUE: 6-7 NM / 55-62 IN.LB.2
15-03299
$4.24
Quantity
37963-992THROTTLE SHAFT1a
15-03801
$42.35
Quantity
38963-994THROTTLE SHAFT (long)1b
15-03802
$116.59
Quantity
39950-020O-RING 6X1.92j
15-03381
$7.65
Quantity
40963-666THROTTLE VALVE1
15-03773
$20.35
Quantity
41941-200SLOTTED HEAD SCREW M3X62
15-03249
$2.53
Quantity
42961-262CABLE SUPPORT 1/31a,f
15-03711
$29.48
Quantity
42961-267CABLE SUPPORT 2/41b,f
15-03713
$29.15
Quantity
43240-357OVAL HEAD SCREW M4x10 2
15-08720
$1.41
Quantity
44963-162THROTTLE VALVE STOP SCREW1
15-03751
$10.56
Quantity
45848-232STOP LEVER 2/41b
15-01399
$11.61
Quantity
45848-230STOP LEVER 1/31a
15-01398
$11.61
Quantity
46-47963-026THROTTLE VALVE LEVER 1/31a,f
15-03736
$48.95
Quantity
46-47963-021THROTTLE VALVE LEVER 2/41b,f
15-03734
$29.15
Quantity
51241-847ALLEN SCREW M5x121
15-00194
$19.25
Quantity
52847-740GRADUATED SLEEV1
15-01358
$29.15
Quantity
53827-800WASHER A5.51
15-00860
$0.30
Quantity
54842-030LOCK NUT M52
15-01239
$2.63
Quantity
55961-222IDLE MIXTURE SCREW1
15-03706
$40.15
Quantity
56239-463COMPRESSION SPRING1f
15-00101
$2.48
Quantity
57941-074SLOTTED HEAD SCREW M3.5x51
15-03276
$2.07
Quantity
60268-758JET 851
15-00393
$24.75
Quantity
60268-762JET 105(1)d
15-00395
$33.55
Quantity
64941-853FUEL LINE CONNECTOR1
15-03286
$60.23
Quantity
67241-440ADJUSTMENT SCREW M6x0.751
07-00406
$6.49
Quantity
69861-640BENT TUBE ASSEMBLY1
15-05010
$52.25
Quantity
70963-010SLEEVE1
15-03731
$5.33
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   For cylinder 1/3
  • b   For cylinder 2/4
  • c   Carburetor housing not available as spare part. use carburetor ASSEMBLY;
  • d   Refer to service instruction SI-03-1998 current issue
  • e   With clearance for O-Ring (use only together with O-Ring Pos. 18 (part no. 950-430);
  • f    For airbox part no. 867-758 / part no. 867-756 See therefore SB-912-044
  • g   See therefore SI-912-012 / SI-914-014
  • h   Package including two floats
  • i    Special jetting according to instructions of the manufacturer
  • j    Contain parts requirement for 2 carburetors
  • k   Maintenance set for 1 carburetor
  • l    with rubber gasket


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
914 UL
Price
1
-
CARBURETOR HOUSING
1c
NLA
28
961-277
 CHOKE VALVE ASSEMBLY 2/4
1bf
*
65
851-071 SUPPORT 1/3
1a
*
65
851-073 SUPPORT 2/4
1b
*
