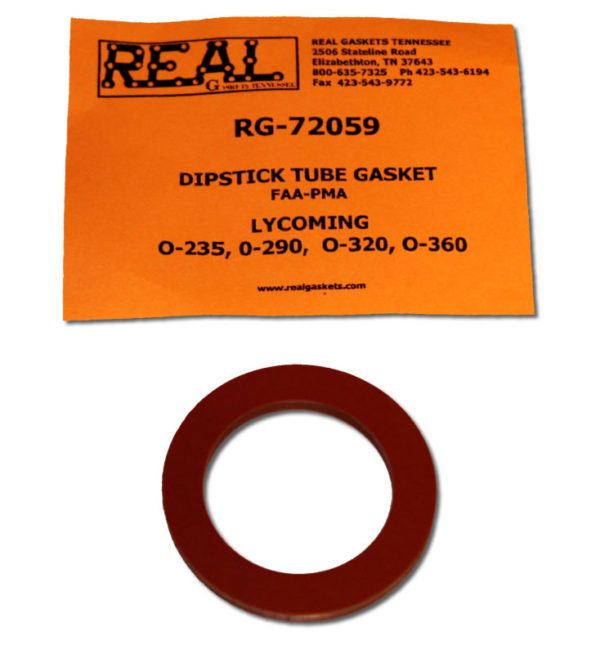

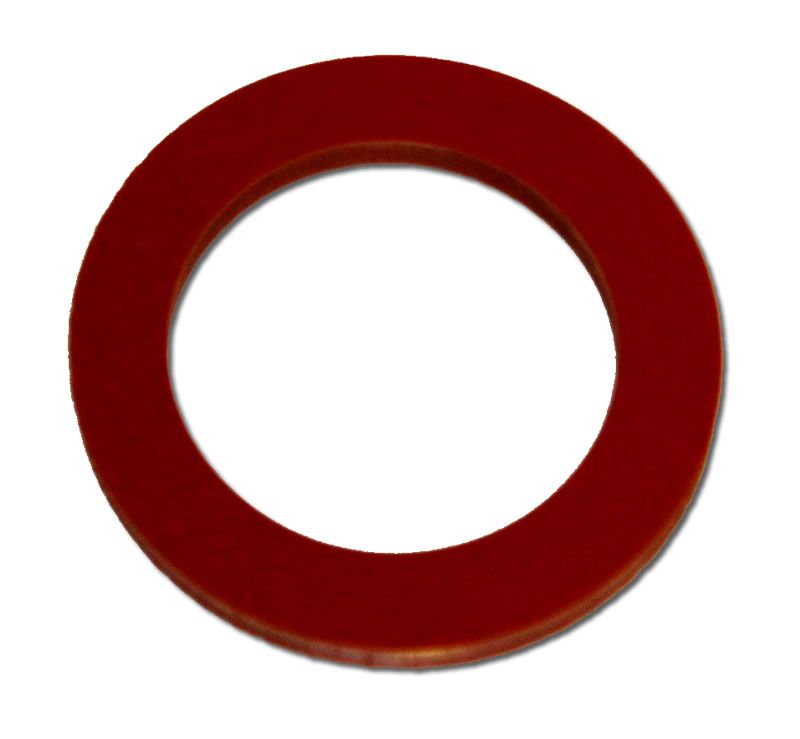

Dipstick Tube Base Gasket

22 Reviews 1 Answered Question

$7.32/Each

Price Includes GST

Add to Wishlist

Part# 08-13621
MFR Model# RG-72059

Overview

Dipstick tube base gasket, 1/8" thick, take a light torque. The silicone rubber is made from aerospace mechanical grade AMS silicone and designed to withstand temperatures up to 400 degrees Fahrenheit. The gasket seals uneven and warped surfaces, eliminates corrosion, and is 100% reusable. Corresponding part #: 72059. Made in the USA.

FAA – PMA Approved for:
Lycoming O-235, O-290, O-320, O-360

Also fits:
Lycoming IO-320; IO-360; AEIO-360-B1B, -B1F, -B1H; HIO-360; O-480; O-540; IO-540-B,-E, -M; TIO/LTIO-540-A

Frequently Purchased With
Customers Also Viewed

Reviews

Submit a Review

Great replacement for old paper/cork gaskets.

Jeremy C

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

November 19, 2024

Great product!

Standridge C

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

April 18, 2024

Far superior to the OEM gasket which is crazy thin and doesnt seal worth a crap. But remember that due to its thickness, your oil reading will be slightly lower than actual.

Rick S

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

March 12, 2024

Perfect fit.

Darwyn D

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

March 6, 2024

This looks like it really will solve the paper gasket hardening/leaking issue was hard to determine the proper torque. But no leak after 15 hours flight time

Kenneth L

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

August 3, 2023

Happy with the product. One thing to consider after installation, the oil level on the dipstick May show slightly lower (1/16th of an inch or so) than actual. Not a big deal and you definitely won’t have any oil leakage after using this

Joe L

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

May 30, 2023

Works great

Michael J

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

February 21, 2023

Seems to be a much tighter fit and appears to be far more stout than a regular gasket.

Paul R

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

February 16, 2023

Mechanic recommended over the paper gaskets.

Martin B

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

February 3, 2023

A bit soft, need install torque specification

Monroe M

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

October 22, 2022

Worked great!

John S

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

January 29, 2022

Was what I wanted

Gary S

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

November 16, 2021

fast shipping

Fredrick G

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

September 25, 2021

As expected.

Nicholas

Verified Purchase

Real Gasket RG-72059 Dipstick Tube Base Gasket

July 6, 2021

I followed the instructions from the A&P - IA who provided info in the Q & A section of this product. Clean both surfaces, don’t over-tighten. Works great-no more leak.

D.

February 4, 2021

Best service behind their product. When I saw it was offered through Spruce, I didnt mind paying a little extra to get it. I had a previous problem with Fuel Tank gasket thickness, to which they helped resolve beyond my expectations. thanks for carrying this line. Dont mind the little extra for this product choice.

Gary B

October 12, 2020

Much better than the paper gasket, just dont over tighten and use .041 safety wire

Mike

September 8, 2020

A great fix for what has always been a weakness and potential oil seep on most Lycoming 4 cylinder engines. Nice and thick, allows you to gently tighten the oil dip stick tube yet if it moves even a little bit has enough sponginess to maintain the seal.

Kevin R

July 16, 2018

Excellent alternative to the paper gasket. No leaks.

Gene M

March 1, 2018

Far better than paper gasket. For flight training aircraft (6 planes 2500 hours annually) this definitely helps reduce engine oil mess. If tightened to much, as previously mentioned, it can squeeze out some. But, still reduces the amount of leakage greatly. As a tip we use .041 safety wire to hold the dip stick housings in place. This eliminates the stretching of the .032 safety wire when trying to remove an over-tightening dip stick.

Nsa M

October 6, 2017

Unfortunately this gasket doesnt work. It is too thick and soft. When you tighten the tube, it squishes out of shape. It needs to be thinner.

David B

April 5, 2018

Rather thick and soft. Very slight torque (finger tight) forces the gasket out from under the tube base.

Dave

February 23, 2017

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding the complaints that the gasket is too soft ... when installing the silicone gasket (RG-72059) all surfaces must be TOTALLY clean and oil free, otherwise yes, the gasket will squish out ... same as their rocker cover gaskets. A&P-IA

Thank you for your feedback. We will be posting this note for other customers review.
