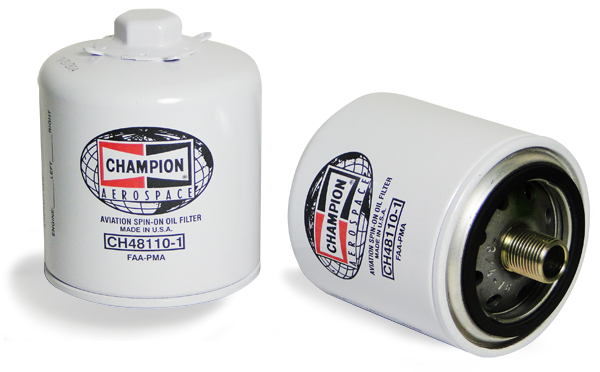

Champion Spin-On Oil Filter CH48110-1

135 Reviews 7 Answered Questions
Select Package Quantity:
Single Filter6 Pack12 Pack
Price Includes GST
Quantity
Add to Wishlist

Overview

Spin-On Oil Filter CH48110-1 by Champion. Replaces oil filter element. Easy to install. Saves time and clean-up. FAA Approved.

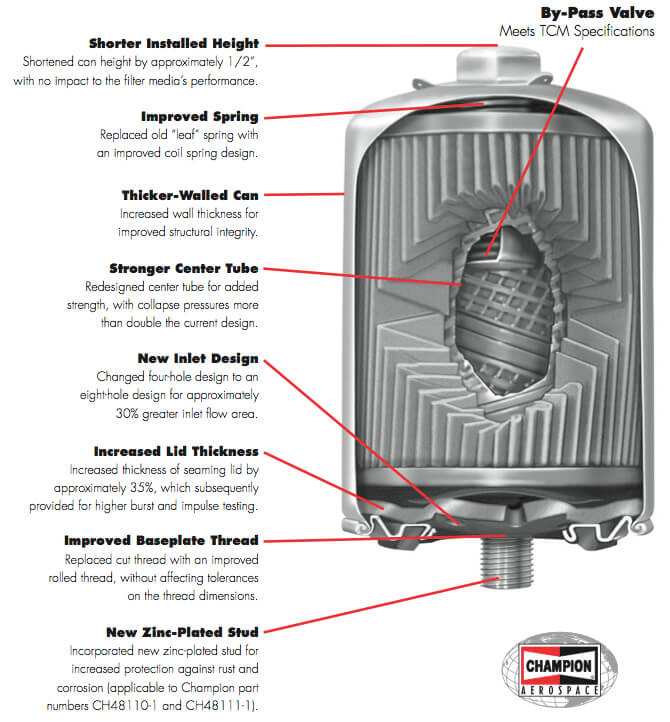

Customers told Champion Aerospace the height of a standard oil filter can make it difficult for them to install the filter in certain engine applications. So, operating on the premise that size really does matter, they made their Champion oil filter can 1/2" shorter and, in the process, added design improvements that now make their filters stronger and more effective than ever before.

Champion Aerospace’s full-pleat, resin-impregnated micronic filter media traps all harmful particles, including metallic chips which result from abnormal engine wear. Because the oil flows through many layers of locked-in fibers, there is no migration of fiber material to clog engine oil passages or affect bearing surfaces. According to industry-approved tests, the Champion oil filter traps and holds more dirt and harmful particles during its normal operating time than any other similar filter.

Features

  • Replacement elements service engine-mounted or line-installed filter systems incorporating a permanent housing assembly.
  • All sizes of replacement elements are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons
  • Modern spin-on oil filters contain the element, incorporating the anti-drain back valve mechanism (and internal bypass valve 48108-1/48109-1), and are sealed in a disposable housing.
  • All sizes of spin-on filters are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons.
  • Silicone impregnated filter gasket aids in future removal.
  • Shorter stud length on CH 48110-1 for tight clearance applications.
  • Heavy, corrugated steel center tube supports each convoluted pleat of the filter element and produces a substantially higher collapse-pressure rating, twice that of other similar filters.
  • Maximum full-flow design, without interference from center-bolt oil filter assemblies, provides increased oil filtration each engine-operating hour.

Specifications

Aircraft Type
Cessna, Piper, Mooney,
Beech Musketeer,
and Travel Air		 51/2"H

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Andrew D Verified Purchase

CH48110-1 Champion Oil Filter
October 11, 2024

Ive always used Champion filters since I bought my airplane 25 years ago. It is nice to stay with things you are familiar with.

Lowell S Verified Purchase

CH48110-1 Champion Oil Filter
October 9, 2024

Insane price increase. Time for a new hobby.

Charles S Verified Purchase

CH48110-1 Champion Oil Filter
September 20, 2024

Great product.

Jeffrey G Verified Purchase

CH48110-1 Champion Oil Filter
September 3, 2024

Fast delivery!

Andrew D Verified Purchase

CH48110-1 Champion Oil Filter
August 27, 2024

Very happy with my order.

Jose G Verified Purchase

CH48110-1 Champion Oil Filter
June 19, 2024

Havent used any other filter in 40 years...very good.

Ronald G Verified Purchase

CH48110-1 Champion Oil Filter
June 13, 2024

What can you say. Good oil filter and has always worked well for me.

Carl J Verified Purchase

CH48110-1 Champion Oil Filter
May 26, 2024

Robert B Verified Purchase

CH48110-1 Champion Oil Filter
May 18, 2024

Fits good. He nut on the back is actually very well stamped. No slippage

Xiaowei S Verified Purchase

CH48110-1 Champion Oil Filter
April 23, 2024

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the outer diameter of a Champion CH48110-1 oil filter?

The OD of this oil filter is approximately 3.7".

Q: Are the CH48110 and CH48110-1 the same?

Yes, these are the same.

Q: What is the difference between the ch48108 and the 48110?

The CH48110 filter has a male thread on the bottom of the filter, the CH48108 has a female thread.

Q: Im currently running a Champion 48110-2 filter - is the 48110-1 a replacement? Lycoming o-320 in a Vans RV-9

Yes, the 48110-1 has the same application as the 48110-2.

Q: What filter made by Tempest would be an equivalent to CH48110-1?

That would be AA48110-2, Part# 08-01270.

Q: What is tempest replacement for the CH48108-1?

That would be a AA48108-2 Part# 08-01268.

Q: Whats the sealing gasket material on the Champion Spin-On Oil Filters?

Silicone.
