Bendix Ground Terminal Kit

$164.84/Each
Price Includes GST
Part# 10-52305
MFR Model# 10-52305

Overview

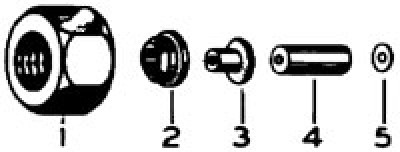

Ref. #
Description
No. Req.
1
NUT - Coupling (Ground Terminal)
1
2
FERRULE - Outer (Ground Wire)
1
3
FERRULE - Inner (Ground Wire)
1
4
SLEEVE - Insulating (Ground Wire)
1
5
WASHER - Ground Wire Contact
1

Application

  • For S-20 & S-200 Series Mags (Wire coming from Point Cover)

Reviews

Jose C Verified Purchase

TCM Ground Terminal Kit 10-52305

October 12, 2023

All the parts necessary to create the P-Lead connection to my Bendix Mags. The Bendix parts catalog lists (3) three different possible combinations depending on when the mag was manufactured. I had to guess and guessed correctly. This works on my 60s vintage S-20 mags. One (1) of these kits is necessary for each mag.

Gary A
March 2, 2017

This product is extremely expensive compared to what you get.

Buddy
May 7, 2017

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the kit include terminals for 8 cables or by each?

This is a single P-Lead terminal kit.
