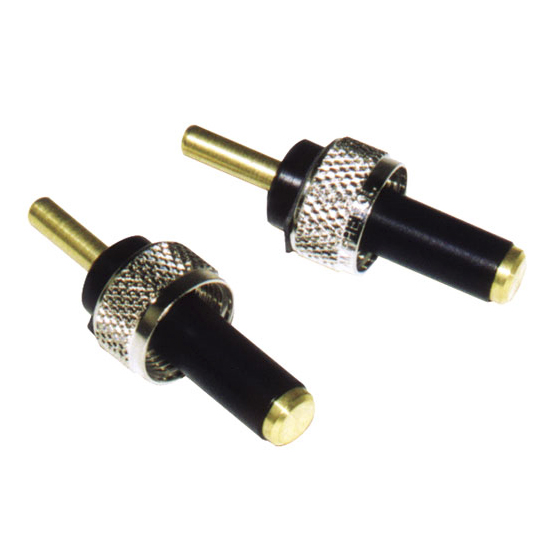

Magneto P-Lead Adapter (Early S2 S4 S20)

$41.75/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 12-03522
MFR Model# 8765

Overview

For Bendix Early S-20, S-4, and S-6 Magnetos having a .375" diameter by 1.1" long lead.

This unique design of the P-lead adapter ensures proper spring pressure against the internal contact. It provides secure and stable alignment, and includes a post that prevents the timer leads from falling off. This adapter allows you to connect to the timer leads of all Bendix magnetos with an immediate and positive connection. One pair per package. 1 lbs (0.5Kg) shipping weight.

Specifications

  • Fits Bendix Magneto Model: Early S-2, S-4, and S-20
  • Diameter: .375"
  • Length: 1.1"
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

I interpreted the ad. to be $37.50 each which why I bought 4. What I am looking for is teh lead to connect my magneto switch wires to as my previous engine had Slick Magnetos. Disappointing!

Benton J Verified Purchase

Magneto P-Lead Adapter (Early S2,S4,S20) # 8765 (Set Of 2)

October 26, 2023

High quality manufacturing.

Lewis M Verified Purchase

Magneto P-Lead Adapter (Early S2,S4,S20) # 8765 (Set Of 2)

April 12, 2022

A+

Randy W Verified Purchase

Magneto P-Lead Adapter (Early S2,S4,S20) # 8765 (Set Of 2)

November 23, 2021

These P-lead adapters work as advertised for early Bendix Mags. How do you know if these work for your Bendix mags? Pull the P-lead Connector out and measure the phenolic barrel. If it measures 3/8, these are the ones. This item provides an easy timing lite attachment for mag timing.

Chris B
October 24, 2020

Worked as advertised.

Dan H
August 7, 2020

Works perfectly

Scott
April 23, 2020

Its so nice having the right tool for the job. Rather than improvising something like a nail driven lengthwise down a wooden dowel and then wrapping it with tape to get the right snug fit (its been done and it works, but.......). With this nice adapter you just unscrew the P-lead and screw this into the mag in its place. Poof! You have a place to clip your timing box to the mag in order the check the timing. Be sure to measure your particular Bendix mags P-lead since there are multiple sizes. Once you know the diameter and length of the probe on your P-lead connector you can order the correct adapter. Works great!!

Robert J
November 30, 2019

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is part # 12-03522 a set of two or only a single plug? Also, is this the right plug for my Bendix magneto labelled SALN-20 and SALN-21 respectively?

This is a set of two. This would be for the early Bendix S-20, S-4 and S-6 magneto's having a .375" diameter by 1.1" long lead.

Q: Can this be used to attach my p leads from ignition switch?

No, these are designed to be used when timing the mags.
