The RANS aircraft heater is the answer to the winter flying "chills". It is very lightweight, inexpensive and installs easily in just two hours. This heater utilizes ram air and the heat off the engine muffler.Operation is simple. Slipstream air is forced through the heater inlet, passing over the muffler, picking up the heat and delivering it to the cabin or pod via an Aeroduct hose. Contains no moving parts. Fits Rotax mufflers and adaptable to other engines. Only fits Rotax 503 and 582. Will not fit 618. |
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The material is aluminum wrap. Dimensions: 13 inch wide and total length 20-1/2 inch.
Per the supplier: "No, this one will not work on an S-7 with a Rotax 912." However, they do offer one that will work for this application. It is non-stocking and special order. Please call sales at 877-477-7823 with your serial number of the aircraft and our sales staff will get the pricing and lead time.
The Heater Kit has 2 inlets which rivet to the outside of the wrap. One hole is pre-located in the wrap. The second hole must be cut into the wrap. Each inlet is designed for the 1-1/2" CEET Hose to attach with Hose Clamps. Air is forced into the wrap by a hose facing into the wind. Heated air from the wrap is then blown into the cabin through another hose. Anytime a muffler wrap style heater is used a Carbon Monoxide alert is recommended. A plastic cap is included which can be used to close off the heated air hose for summer time use.

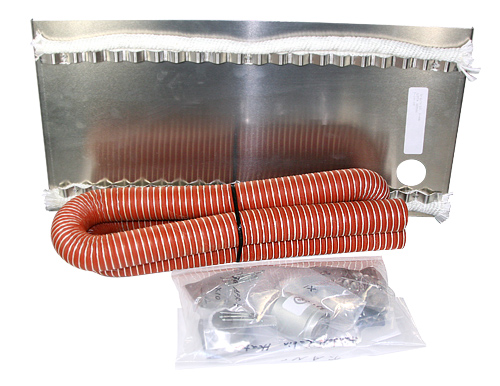

Kit includes Heater Wrap, 2 inlets, 1-1/2" CEET Hose, 1-1/2" Cap and rivets for installation.
