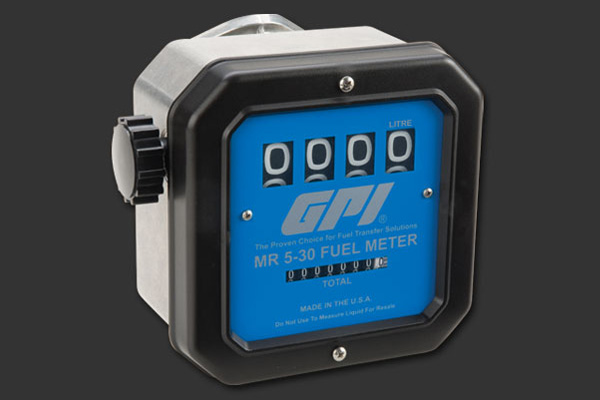

Gpi Refueling Meter Mr 5-30-L8N

$384.99/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 08-07468
MFR Model# 165100-02

Overview

GPI REFUELING METER:
  • 19-114 LPM
  • Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).

  • These meters are only intended to be ground based or vehicle mounted. Do not use or mount in or on aircraft, may be used with aviation fuel.

    Specifications

    • Model: MR 5-30-L8N
    • Flowrate: 19-114 lpm
    • Design Type: Nutating Disc
    • Accuracy: +/- 2% of reading
    • Pressure Rating: 50 PSI / 3.4 bar
    • Field Calibration: Yes
    • Inlet/Outlet Size: 1 in.
    • Max Batch Digits: 4
    • Max Cumulative Digits: 8
    • Unique Feature: Large, easy to read display with turn knob reset.
    • Use with: Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation gasoline (AVGAS 100LL) and kerosene grade (JET A).
    • Mfg Warranty: 2 Year
