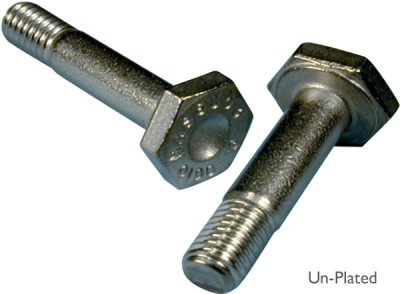

Tension Bolts NAS6703 & NAS6704
From $1.44 to $8.50
Prices below incude GST
| Material | Grip | Length | Part Number | Price | Buy |
|---|---|---|---|---|---|
| Plated | 0.0625 | 0.4075 | NAS6703-1 | $2.42 | |
| Plated | 0.1250 | 0.4700 | NAS6703-2 | $3.30 | |
| Plated | 0.1875 | 0.5325 | NAS6703-3 | $2.07 | |
| Plated | 0.2500 | 0.5950 | NAS6703-4 | $1.65 | |
| Plated | 0.3125 | 0.6575 | NAS6703-5 | $1.67 | |
| Plated | 0.3750 | 0.7200 | NAS6703-6 | $1.67 | |
| Plated | 0.4375 | 0.7825 | NAS6703-7 | $3.30 | |
| Plated | 0.5000 | 0.8450 | NAS6703-8 | $1.76 | |
| Plated | 0.5625 | 0.9075 | NAS6703-9 | $1.80 | |
| Plated | 0.6250 | 0.9700 | NAS6703-10 | $1.72 | |
| Plated | 0.6875 | 1.0325 | NAS6703-11 | $1.87 | |
| Plated | 0.7500 | 1.0950 | NAS6703-12 | $1.91 | |
| Un-Plated | 0.0625 | 0.4075 | NAS6703U1 | $1.76 | |
| Un-Plated | 0.1250 | 0.4700 | NAS6703U2 | $1.58 | |
| Un-Plated | 0.1875 | 0.5325 | NAS6703U3 | $1.63 | |
| Un-Plated | 0.2500 | 0.5950 | NAS6703U4 | $1.65 | |
| Un-Plated | 0.3125 | 0.6575 | NAS6703U5 | $2.64 | |
| Un-Plated | 0.3750 | 0.7200 | NAS6703U6 | $1.67 | |
| Un-Plated | 0.4375 | 0.7825 | NAS6703U7 | $2.20 | |
| Un-Plated | 0.5000 | 0.8450 | NAS6703U8 | $2.53 | |
| Un-Plated | 0.5625 | 0.9075 | NAS6703U9 | $7.48 | |
| Un-Plated | 0.6250 | 0.9700 | NAS6703U10 | $2.86 | |
| Un-Plated | 0.6875 | 1.0325 | NAS6703U11 | $3.08 | |
| Un-Plated | 0.7500 | 1.0950 | NAS6703U12 | $1.91 | |
| Plated | 0.0625 | 0.4875 | NAS6704-1 | $2.04 | |
| Plated | 0.1250 | 0.5500 | NAS6704-2 | $5.88 | |
| Plated | 0.1875 | 0.6125 | NAS6704-3 | $2.02 | |
| Plated | 0.3125 | 0.7375 | NAS6704-5 | $1.96 | |
| Plated | 0.3750 | 0.8000 | NAS6704-6 | $4.84 | |
| Plated | 0.5000 | 0.9250 | NAS6704-8 | $2.20 | |
| Plated | 0.5625 | 0.9875 | NAS6704-9 | $9.35 | |
| Plated | 0.6250 | 1.0500 | NAS6704-10 | $8.36 | |
| Plated | 0.6875 | 1.1125 | NAS6704-11 | $2.73 | |
| Plated | 0.7500 | 1.1750 | NAS6704-12 | $5.06 | |
| Un-Plated | 0.1250 | 0.5500 | NAS6704U2 | $2.42 | |
| Un-Plated | 0.1875 | 0.6125 | NAS6704U3 | $4.07 | |
| Un-Plated | 0.2500 | 0.6750 | NAS6704U4 | $2.05 | |
| Un-Plated | 0.3125 | 0.7375 | NAS6704U5 | $3.74 | |
| Un-Plated | 0.3750 | 0.8000 | NAS6704U6 | $2.13 | |
| Un-Plated | 0.4375 | 0.8625 | NAS6704U7 | $2.75 | |
| Un-Plated | 0.5000 | 0.9250 | NAS6704U8 | $2.20 | |
| Un-Plated | 0.5625 | 0.9875 | NAS6704U9 | $3.85 | |
| Un-Plated | 0.6250 | 1.0500 | NAS6704U10 | $5.06 | |
| Un-Plated | 0.6875 | 1.1125 | NAS6704U11 | $4.79 | |
| Un-Plated | 0.7500 | 1.1750 | NAS6704U12 | $8.63 |
- JUMP TO
- Overview
- Specifications
- Reviews
- Q&A
Overview
|
Hex Head, Long Thread NAS6703 & NAS6704 Material - CRES (A286) Per AMS5731, AMS5732, AMS5737 or AMS5853 Finish - Cadmium Per AMS-QQ-P-416 II, Class 2 or Passivate Per AMS2700 (U Code) Heat Treat - 160-190 KSI Per AMS2759 |
Specifications
NAS6703- A = .376
- D = .1895
- H = .110
- Thread: 10-32 UNJF-3a
- Tensile: 3620 Lbs. Min
- Shear: 5380 Lbs. Min
- A = .439
- D = .2495
- H = .125
- Thread: 1/4-28 UNJF-3a
- Tensile: 6470 Lbs. Min
- Shear: 9300 Lbs. Min
