Aerospace Logic Single Tank Fuel Level Indicator

0 Reviews 0 Answered Questions
From $636.00 to $862.00
Prices below incude GST
Main Image
Main Image
Main Image
Description SPECIFICATION Part Number PRICE BUY
ASL SINGLE TANK FUEL LEVELRESISTIVE SENDER
10-05174
$740.30
Quantity
ASL SINGLE TANK FUEL LEVELCESSNA PENNYCAP
10-05514
$712.80
Quantity
ASL SINGLE TANK0-5V FUEL LEVEL
10-05515
$699.60
Quantity
ASL FL201D SINGLE TANK FUEL FOR CIES
10-06848
$948.20
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

Single Tank Fuel Level Instrument

Instruments are advanced, next generation airborne fuel level reporting instruments that support two fuel tanks.

Fuel level functionality is TSO'd and meets the repeatable accuracy requirements of SAE AS405C, +/- 1US Gallon.

Functional displays include:

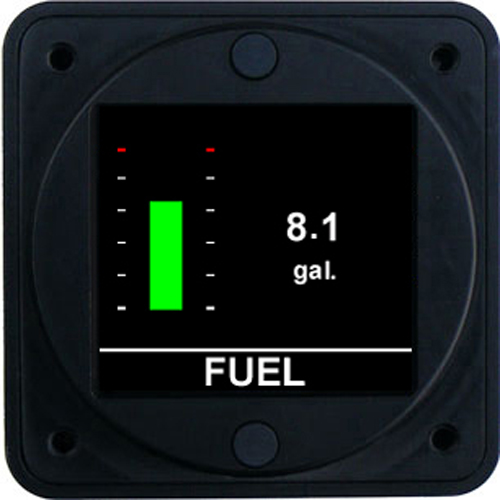

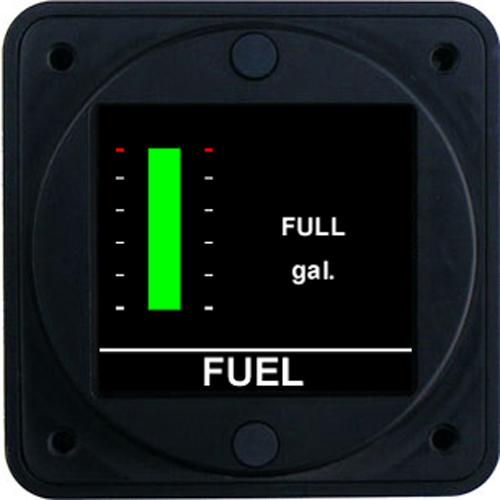

Graphical indication of fuel level in the tank
Digital fuel quantity for the tank
Fully programmable color indication to meet all aircraft marking requirements
Graphical fuel level indication, starting at power on

These instruments are TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR). It is a requirement of the STC that this be the only fuel level indicator, when installed.

These instruments utilize the existing fuel senders.

*FL201D Instrument for CIES Sender Version Only*

Features

    Certification / Compliance:
    TSO C44bCanadian STCFAA STCCertified as primary replacement
    SoftwareDO-178B
    DC Power Source
    Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV
    Operating Temperature
    Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC
    Signal Input
    Resistive: 0.25 Ohm to 300 Ohm
    Sender Orientation
    User selectable, proportional or inversely proportional to fuel quantity
    Accuracy
    AS405C +/- 1 USG
    Display Units
    US Gallons per hour or Litres per hour, user selectable
    Range0 to 120 USG (defined by fuel sender/tank size)
    Display
    Sunlight readable LCD176 X 192 display pixels65,535 colors
    Annunciator Output
    100mA sink with reverse EMF protection
    RS-232 Data
    Output 1 second per full sequence at 57.6K bps (8/N/2/N)
    Interface Connector
    DB-25
    Software Functionality
    Primary Display: Fuel level in the tank

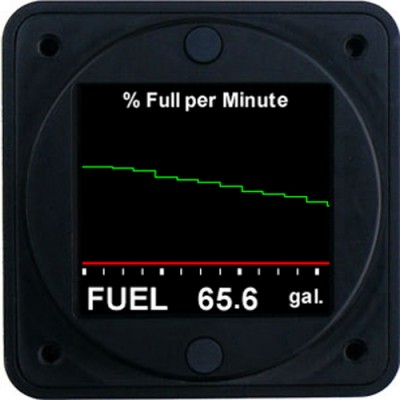

    Trend Graph: Graphic display of level vs time

Specifications

  • Dimensions: 2.45” X 2.45” X 0.96”
  • Weight (excluding harness): 4.05 oz
  • Finish: Black anodized 6061 aluminum
