Aerospace Logic Single Manifold Pressure Kit

0 Reviews 1 Answered Question
$895.40/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 10-05177
MFR Model# MP200K

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

MP200K Single Manifold Pressure Kit

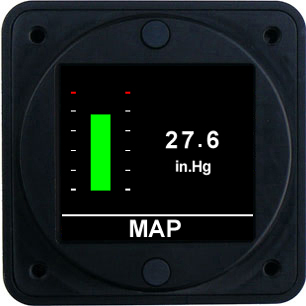

The MP200 is an advanced, next generation single manifold pressure instrument.

Manifold pressure functionality is TSO'd and meets the pressure accuracy requirements of SAE AS8042.

Functional displays include:
Real-Time analog data depiction and digital value display of manifold pressure
Graphical trend display of manifold pressure data
The MP200K is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

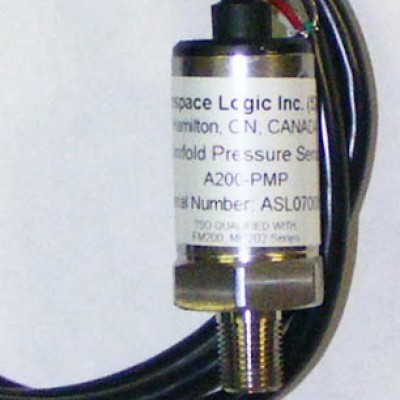

This kit includes a A200-PMP manifold pressure sensor and all installation hardware

Features

    Certification / Compliance:
    TSO C44bCanadian STCFAA STCCertified as primary replacement
    SoftwareDO-178B
    DC Power Source
    Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV
    Operating Temperature
    Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC
    Signal Input
    Pressure 0.5V to 3.0V
    Fuel Flow: 5V pulse width modulated
    Display Units
    Manifold Pressure: 0.0 inHg to 50.0 inHg
    Fuel Flow: 0.6 to 30gph
    Fuel Used: 0.6 to 999.9 gallons
    Accuracy
    Manifold Pressure: AS8042 +/- 0.1inHg
    Fuel Flow: +/- 0.1gph
    Display
    Sunlight readable LCD176 X 192 display pixels65,535 colors
    Annunciator Output
    100mA sink with reverse EMF protection
    RS-232 Data
    Output 1 second per full sequence at 57.6K bps (8/N/2/N)
    Interface Connector
    DB-25
    Software Functionality
    Primary Display: Fuel level in the tank
    Trend Graph: Graphic display of level vs time

Specifications

  • Dimensions: 2.45” X 2.45” X 0.96”
  • Weight (excluding harness): 4.05 oz
  • Finish: Black anodized 6061 aluminum

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this AEROSPACE LOGIC SINGLE MANIFOLD PRESSURE KIT instrument get its information from a sending unit, or through conventional plumbing?

The MP200K comes with a digital pressure sending unit. The sending unit has a 1/8 NTP port for attachment.
