Whelen Strobe System Parts #1

58 Reviews 3 Answered Questions
From $2.20 to $1336.00
Prices below incude GST
Main Image
Main Image
Main Image
Main Image
Description Part No. Price Buy
A402R Red Optic Lens
11-03254
$89.93
Quantity
A402W White Optic Lens
11-03271
$89.93
Quantity
A406 Flash Tube Assembly
11-03687
$251.84
Quantity
A409 Clamp Ring Assembly
11-03688
$31.35
Quantity
CF HDH,DF Power Supply
11-03632
$1469.60
Quantity
A417-1 Interconnecting Cable
11-03658
$2.42
Quantity
A421-1 Warning Decal
11-03691
$20.85
Quantity
A425 Tail Strobe Lens Retainer
11-03692
$36.85
Quantity
A426 Wingtip Strobe Lens Retainer
11-03233
$159.23
Quantity
A427 Flash Tube Assembly
11-03219
$176.83
Quantity
A427-M Flash Tube Assembly with Molex Connector
11-03272
$153.73
Quantity
A427-4 Rubber Pad Spacer
11-03693
$23.65
Quantity
428 Wingtip Strobe Lens
11-03236
$168.03
Quantity
A428-C Wingtip Strobe Radio Shielded Lens
11-03694
$158.12
Quantity
A428-D Wingtip Strobe Radio Shielded Lens plus A426 Retainer assy.
11-03290
$287.05
Quantity
A430 Tail Strobe Head Assembly
11-03696
$295.90
Quantity
A435 Flash Tube Assembly
11-03697
$269.44
Quantity
A440 WRM-65 Mounting Adapter, for HR,DF & SA,DF
11-03699
$70.24
Quantity
A441 AMP Connector and 3 Pins
11-03211
$20.35
Quantity
A442 AMP Connector and 3 Sockets
11-03212
$19.75
Quantity
M441 Molex Connector and 3 Pins for Piper Installation
11-04215
$19.58
Quantity
M442 Molex Connector and 3 Sockets for Piper Installation
11-04216
$21.56
Quantity
A444 AMP Connector and 2 Pins
11-03700
$19.75
Quantity
M444> Molex Connector and 2 Pins for Piper Installation
11-04217
$19.25
Quantity
A445 Switch Label
11-03701
$9.90
Quantity
A446 AMP Connector and 2 Sockets
11-03702
$29.15
Quantity

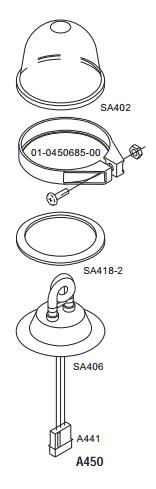

A450 Strobe Head Assembly
11-03280
$515.90
Quantity
A455 Gasket
11-03703
$22.71
Quantity

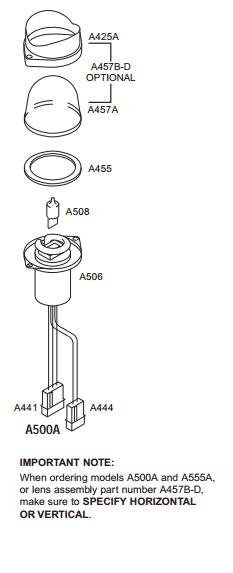

A457A Tail Light Lens for A500 and A555
11-03227
$89.93
Quantity
A457A-D Radio Shielded Tail Light Lens Assembly for A500
11-03704
$171.33
Quantity
466A-1 Radio Shielded Lens
11-03708
$276.05
Quantity

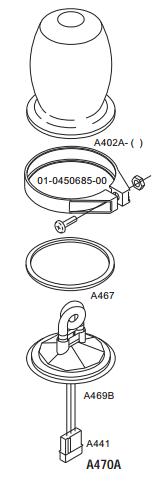

A467 Gasket for A470
11-03709
$31.35
Quantity
A469B Flash Tube Assembly
11-03225
$236.44
Quantity
A469D-K Radio Shielded Kit for A469A
11-03711
$268.35
Quantity
A610 Flash Tube Assembly
11-03213
$159.34
Quantity
A610M Flash Tube Assembly with Molex Connector
11-03734
$157.30
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Whelen Strobe Parts #2
Whelen Strobe Parts #3
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Worked great for my Cessna 150. Although inconsequential for my application, it has shorter leads than the original (as stated by the manufacturer), so keep that in mind.

Mike L Verified Purchase

Whelen A427 Strobe Tube Assembly
October 25, 2024

Pricey little unit to bring light to the wing end tips! Don’t touch the bulb! They go out quicker! One item to keep in backup kit.

Peg B Verified Purchase

Whelen A427 Strobe Tube Assembly
October 10, 2024

Miss on the molex connector type, but was easy to de-pin and set new pins on the old connector. Great storbe lights!

James G Verified Purchase

Whelen A610M Strobe Tube Assembly - Molex Connector
August 28, 2024

Good fit. Made of plastic, but seems very strong

Foster C Verified Purchase

Whelen 5068500 Nylon Clamp Rg
August 21, 2024

This is the perfect replacement for a Grimes Model E Strobe. Sometimes it’s hard to track down proper PNs, but this is the one for it.

Dylan C Verified Purchase

Whelen A427 Strobe Tube Assembly
August 17, 2024

Atlantsflug Verified Purchase

Whelen A427 Strobe Tube Assembly
July 26, 2024

Showed up quickly! Previous strobe light worked for 25 years. Hope to get the same out of this one.

Dave K Verified Purchase

Whelen A427 Strobe Tube Assembly
June 14, 2024

Ordered the light with the molex connecter. Removed three screws securing the old light and installed the new light. Turned on the battery and beacon switch to check it out and no problem. It worked well and very bright.

David L Verified Purchase

Whelen A610M Strobe Tube Assembly - Molex Connector
May 27, 2024

Item received prior to promised delivery date. Wiring harness was longer than original part so it made replacement easier than anticipated

Craig K Verified Purchase

Whelen A427 Strobe Tube Assembly
May 22, 2024

Gregory G Verified Purchase

Whelen A4211 Warning Decal
March 26, 2024

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: is this the mating connector for whelen a441?

The light assemblies have the A441 connector. The mating connector is an A442 socket.

Q: Would it be possible to make the picture enlargements big enough to read? The pop up isn't any bigger than the main screen picture. Thanks

We have switched out the drawings for more clear and larger versions. We will be re-doing all of our Whelen Strobe Pages over the next few days to make it easier for the customer. Please look for these changes soon.

Q: I have the combination wing tip pos lite and strobe. My strobe tube is milky..and needs tobe replaced. Your diagram picture shows it to be part A610. But no such item is listed. What is the part # for the A610?

The A610 assembly is our Part # 11-03213. If you keyword search 11-03213, you will locate the web page to order the assembly.
