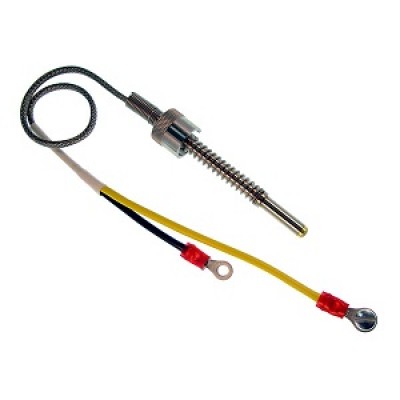

Alcor By Tempest Bayonet Style Probe Grounded .24 Ohm Type J

$134.03/Each
Price Includes GST
Part# 86251
MFR Model# 86251

Overview

ALCOR BAYONET STYLE PROBE GROUNDED, .24 OHM, TYPE J

* 28202 Adapter (4 ea.), ring terminals and hardware
** 28202 Adapter (6 ea.), ring terminals and hardware

Features

  • Backed by an industry leading 5 year warranty
  • Small element diameter provides for near instantaneous instrument response
  • Provides sufficient electrical power for Alcor unamplified instruments
  • Intended for use with Type J CHT instruments and leads
  • Most engine cylinders require use of Bayonet adaptor, part number 28202, for a secure fit
  • PMA and FAA approved for all reciprocating powered aircraft
  • Alcor probes are designed, manufactured, and supported in the U.S.A.

Specifications

  • Type: J – Black and Yellow
  • Grounded
  • Style: Bayonet
  • Resistance:   .24 ± .05 Ohm
  • Weight: 0.12 lbs
  • Alcor P/N: 86251

Reviews

Kevin W Verified Purchase

86251 Alcor CHT Probe Type J

July 30, 2024

FIRST ONE VERY WELL, THE SECOND ONE, I DON´T KNOW...

Hans G Verified Purchase

86251 Alcor CHT Probe Type J

February 8, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the Alcor 86251 probe work with a Mitchell D1-211-5102 CHT Gauge?

Yes, Alcor probe 86251 will work with the Mitchell D1-211-5102 CHT Gauge.

Q: How long are the cables in this Alcor bayonet p/n 86251?

Per the install manual the length of the cable is 15 inches.

Q: whats the difference between ALCOR type J and K for CHT?

K type is used for High temp application and J type is better for lower temp application: K= -326 to 2300 | J= 32 to 1382
