Alpha Systems AOA Merlin Dual Kit

0 Reviews 0 Answered Questions
Select Model:
Non PressurizedPressurized
Price Includes GST
Quantity
Add to Wishlist

Overview

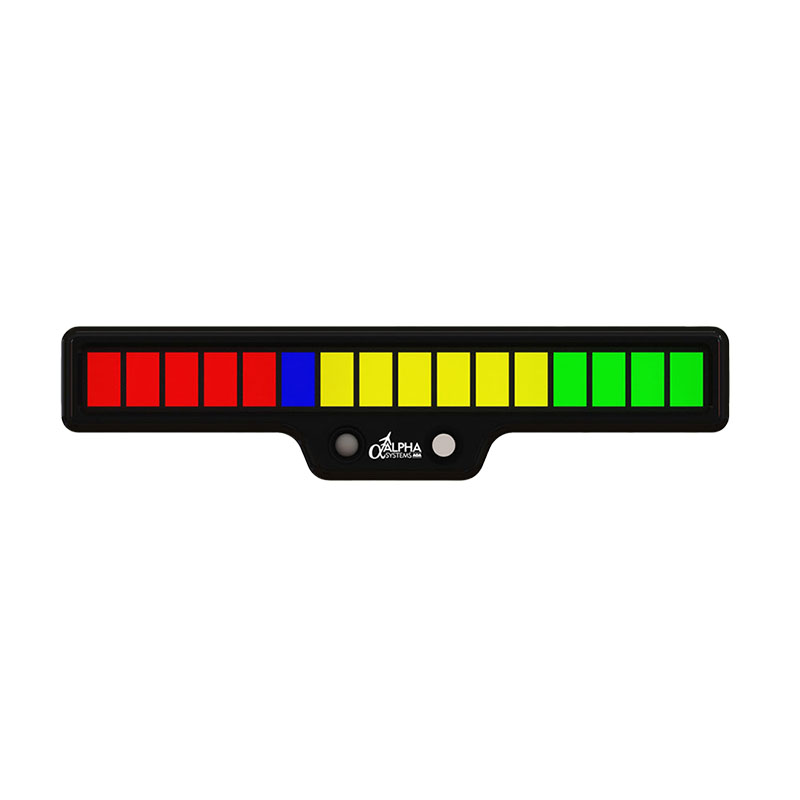

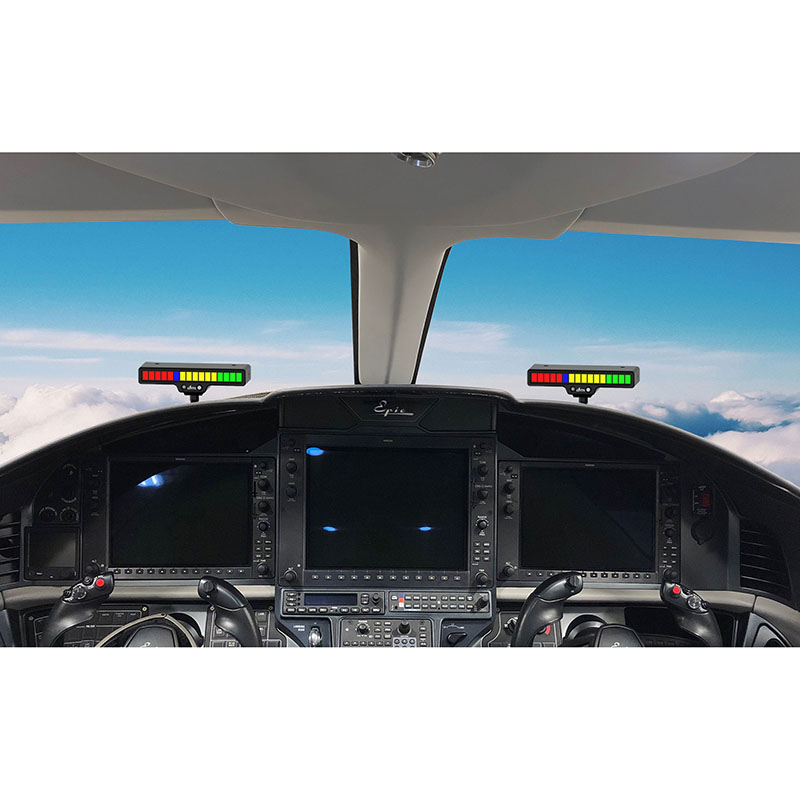

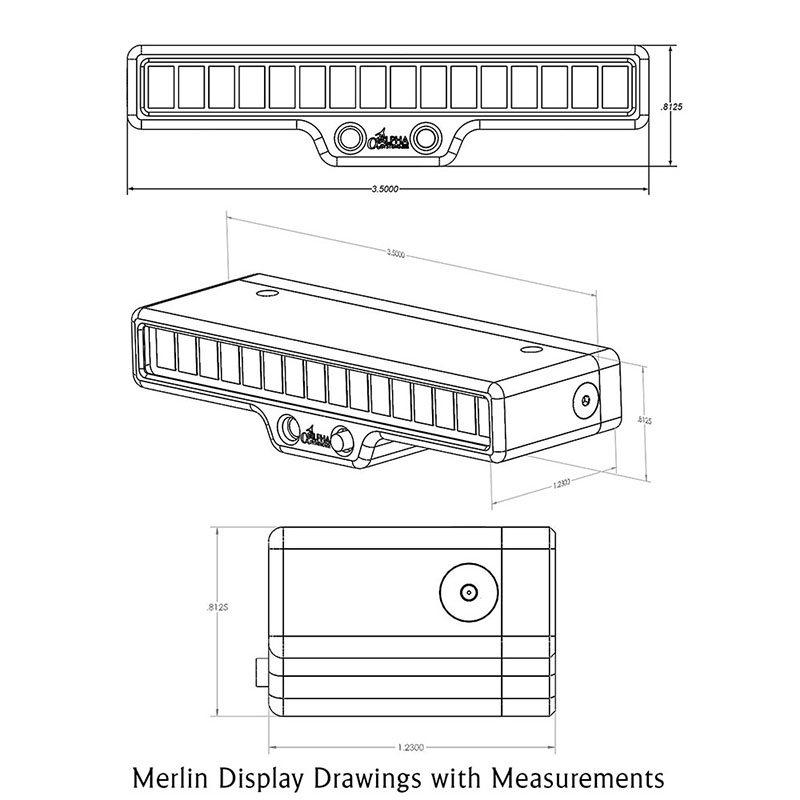

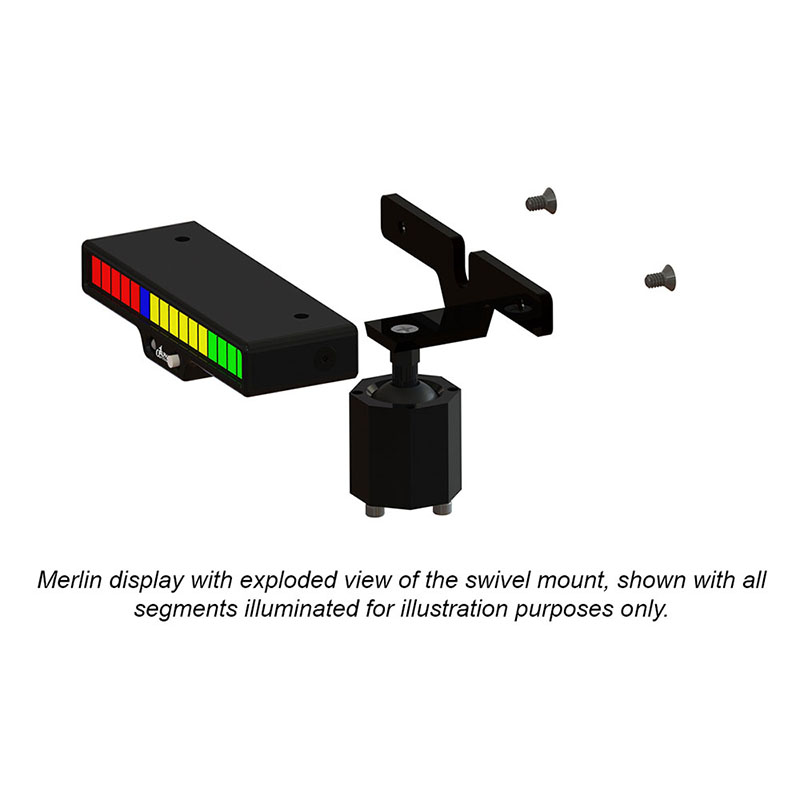

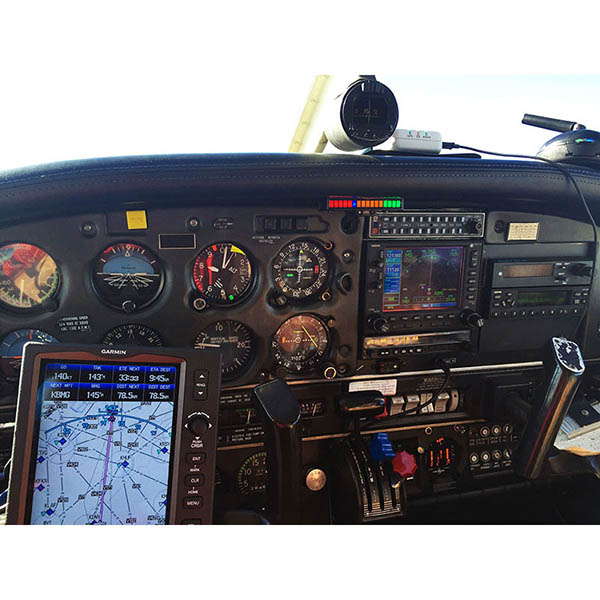

The Dual Merlin kit has two horizontal light bar style displays. With the Merlin display, when you come in for a landing you want to fly to the blue LED (on speed for landing). Should you come in with too low an angle of attack, the display will lit into the yellow, telling you to put your nose up. Should you come in with too high an angle of attack, the display will be lit into the red, telling you to put your nose down.

Features

  • Instantaneous Angle of Attack indication.
  • Three point calibration process, programmed on remote switch panel, to aircraft specific lift curve.
  • 16 different LED brightness levels from ultra dim to very bright.
  • Display has an imbedded photocell for daytime/nighttime brightness settings, choice of which is programmed at the display.
  • Audio output, tied to existing audio input on audio panel by others.
  • 4 different audio options to choose from which is programmed by the end user at the remote switch panel.
  • Audio mute switch with amber LED indicator located on remote switch panel.
  • 12-28 VDC input draws less than 0.250 Amps at full brightness.

Specifications

Complete Kit Weight Less than 3.00 lbs. Click here for full list.
AOA Interface Module size In Inches: 5.75 x 2.60 x 1.65
System Voltage Requirements 12 - 28 Volts DC
System Max Power Draw 0.250 Amps
System Power Cable 6 ft, three wires: power, ground and shield
Heated Probe Voltage Requirements 12 or 24 VDC (must specify when ordering)
Heated Probe Power Draw 86 Watts at 12VDC / 172 Watts at 24VDC
Heated Probe Current Draw 8 Amps at 12VDC and 8 Amps at 24VDC
Heated Probe Power Wire Supplied by others
Audio Output 1 Volt P-P max at 300 ohm input impedance
Aux (Audio) Cable 6 ft, three wires: AP audio, AP ground and shield
Audio Options Four
Mute Switch Yes, on switch panel.
LED Brightness Levels 16, from ultra dim to very bright
Photocell Diode On display, allows for custom daytime/nighttime brightness settings
Pressurized Version Yes

Documents

In The Box

  • Standard:
  • Two Merlin Displays
  • Switch Panel Module
  • I/F Module
  • Dual Display I/F Module
  • Non Heated Standard Probe
  • 9x9 Probe Mounting Plate

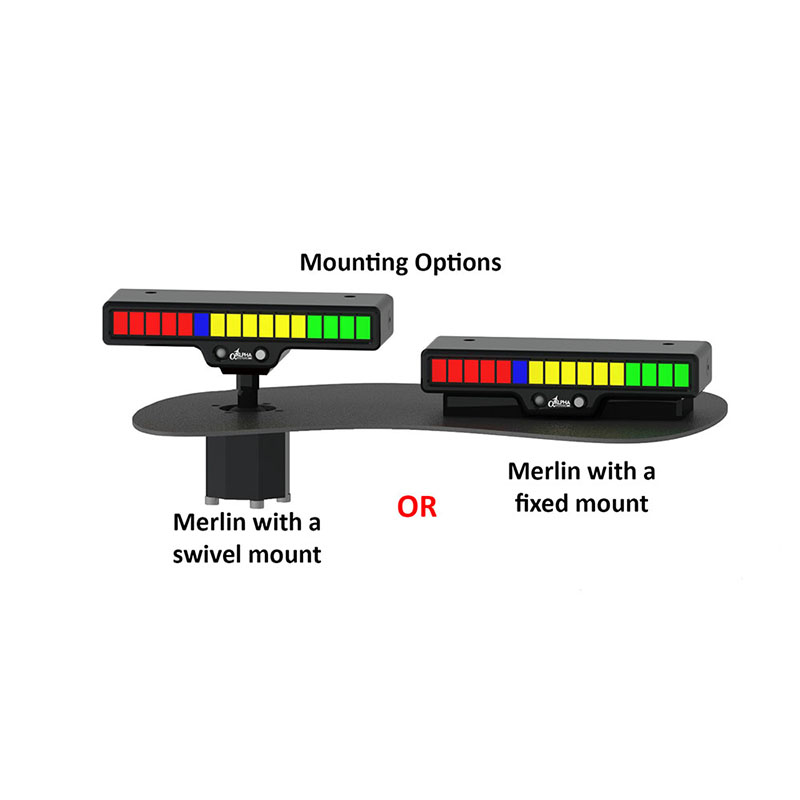

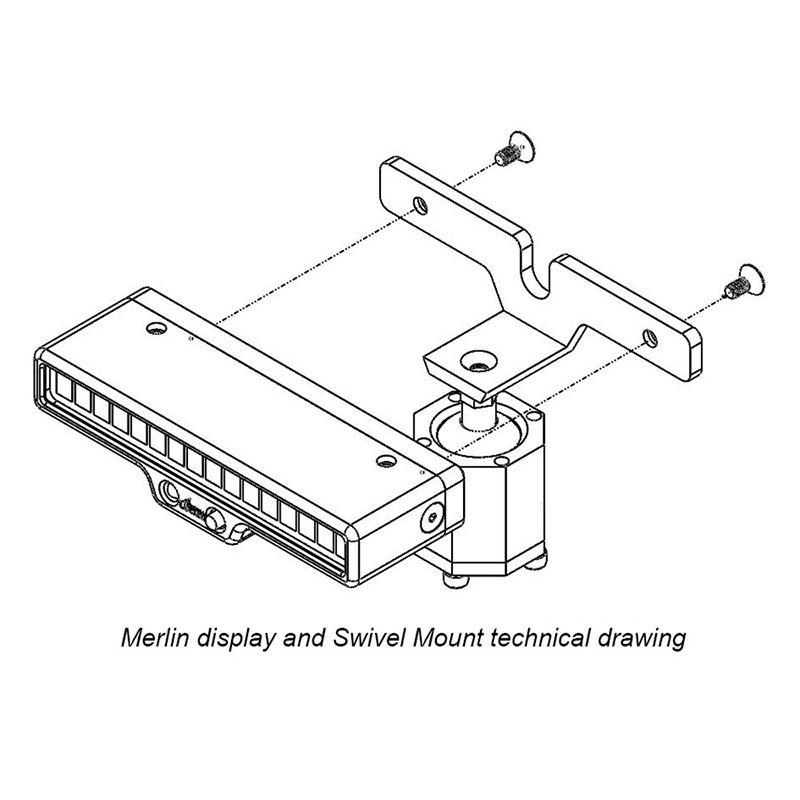

  • Two Fixed Mounts
  • 6ft Power Cable
  • Two 6ft Display Extension Cables
  • 6ft AUX Cable
  • 6ft Switch Panel Extension Cable
  • Dual Display I/F Module Extension Cable
  • 25ft Blue Pneumatic Hose
  • 25ft White Pneumatic Hose
  • Merlin Installation Manual
  • Merlin Operations Manual
  • Protractor
  • Probe Cover
  • Screwdriver

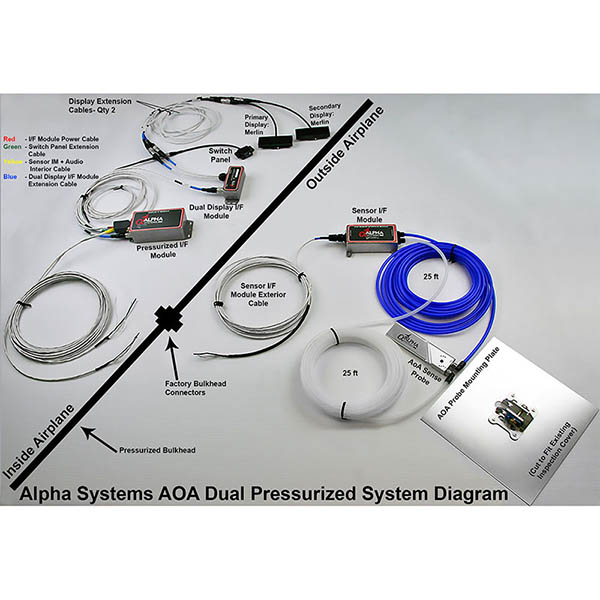

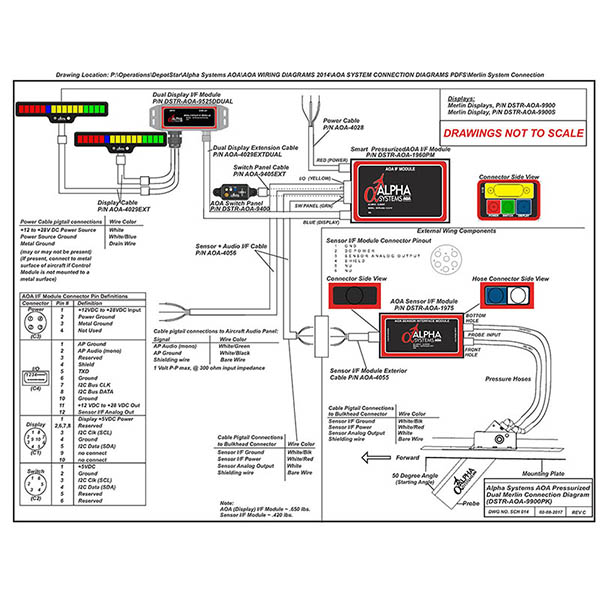

  • Pressurized:
  • Two Merlin Displays
  • Switch Panel Module
  • Pressurized I/F Module
  • Sensor I/F Module
  • Dual Display I/F Module
  • Non Heated Standard Probe
  • 9x9 Probe Mounting Plate
  • Two Fixed Mounts
  • 6ft Power Cable
  • Two 6ft Display Extension Cables
  • 15ft Sensor I/F + Audio Interior Cable
  • 15ft Sensor I/F Module Exterior Cable
  • 6ft Dual Display I/F Module Cable
  • 6ft Switch Panel Extension Cable
  • 25ft Blue Pneumatic Hose
  • 25ft White Pneumatic Hose
  • Merlin Installation Manual
  • Merlin Operations Manual
  • Protractor
  • Probe Cover
  • Screwdriver
