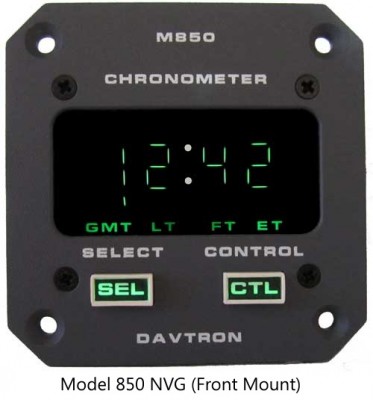

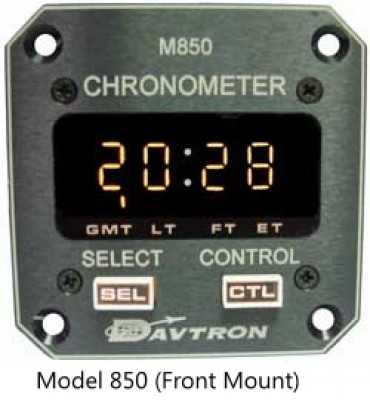

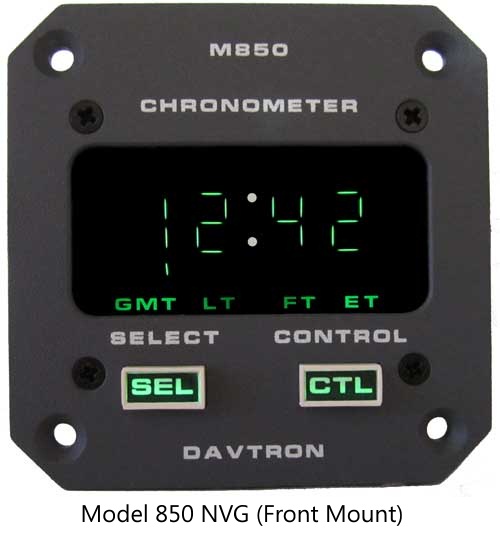

Davtron Deluxe Digital Chronometer M850
From $524.00 to $825.00
Prices below incude GST
| Description | Part No. | Price | Buy |
|---|---|---|---|
| MODEL 850-5V GMT, LT, FT, & ET CLOCK 5V ILLUMINATING BUTTONS (FRONT MOUNT) | 10-03310 | $576.40 | |
| MODEL 850-5V WITH GREY FACEPLATE | 10-03311 | $584.10 | |
| MODEL 850-5V WITH NIGHT VISION COMPATIBILITY (GREEN A) | 10-03306 | $847.00 | |
| MODEL 850-5V INTERNAL MOUNT WITH NIGHT VISION COMPATIBILITY (GREEN A) | 10-04725 | $847.00 | |
| MODEL 850-14V GMT, LT, FT, & ET CLOCK 14V ILLUMINATING BUTTONS (FRONT MOUNT) | 10-03312 | $578.60 | |
| MODEL 850-14V WITH GRAY FACEPLATE | 10-03348 | $586.30 | |
| MODEL 850-14V WITH NIGHT VISION COMPATIBILITY (GREEN A) | 10-03349 | $833.80 | |
| MODEL 850A-14V-NVG WITH GRAY FACEPLATE | 10-03350 | $844.80 | |
| MODEL 850-28V GMT, LT, FT, & ET CLOCK 28V ILLUMINATING BUTTONS (FRONT MOUNT) | 10-03313 | $580.80 | |
| MODEL 850-28V WITH GRAY FACEPLATE | 10-03314 | $588.50 | |
| MODEL 850-28V WITH NIGHT VISION COMPATIBILITY (GREEN A) | 10-03351 | $907.50 | |
| MODEL 850-28V INTERNAL MOUNT WITH NIGHT VISION COMPATIBILITY (GREEN A) | 10-04727 | $903.10 | |
| MODEL 850A-28V-NVG WITH GRAY FACEPLATE | 10-03352 | $778.80 |
Overview
Davtron M850 Features:
Davtron FAA PMA # PQ1062NM |
FAA Approval
- Davtron Inc has determined that installation of all Davtron products are considered minor according to (FAR) 21.93(a). All of our units are similar in design, with their electrical, mounting size, and weight being similar. Even though we consider installation of Davtron products to be minor, it is up to the installing mechanic to determine if the installation is minor or major. For a minor, a maintenance log book entry is all that is required. The FAA has determined that the installation of replacement clocks in non-transport category airplanes is considered to be minor, therefore only a maintenance log book entry is required referencing letter 100S-GA-10-53 from the FAA.
- Download Letter
- For a major installation on a non PMA approved airframe, a FAA 337 form should be filed with your local FSDO and a possible field approval done.
- FAA/PMA Approvals:
- Israel Aircraft Industries Model 1125 Astra and Galaxy
- Download FAA 337 Form
Specifications
- Greenwich Mean Time: 24 hour format
- Local Time: 12 hour or 24 hour option
- Flight Time: Records in hours and minutes, up to 99:59, 99.99 hour option
- Flight Time Alarm: Full set range flight time
- Elapsed Time Count Up: Starts in minutes and seconds, then hours and minutes, up to 99:59 hours
- Elapsed Time Countdown: Settable from one second to 59 minutes and 59 seconds
- Elapsed Time Alarm: Activates at zero when counting down
- Incandescent Displays: Readable in sunlight
- Automatic Dimming
- Battery Type: N size alkaline Model 850
- Battery Type: AA size alkaline Model 877
- Keep Alive Current: .00004 amps
- Input Current: 0.2 Amps
- Input Voltage: 14 to 28 Volts (backlight available 5V, 14V, or 28V lighting - must specify when ordering)
- NVIS Option: NVIS Green A lighting
- Black Face Plate: Engraved Nomenclature
- Grey Face Plate: Silkscreened Nomenclature
- Weight: 5 ounces
- Warranty: 1 year
