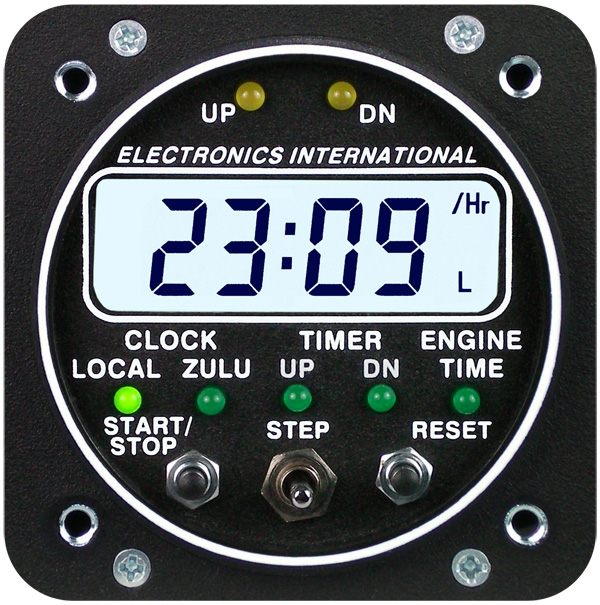

Electronics International SC-5 Super Clock
MFR Model# SC-5
Overview
|
May be set to display in a 12 or 24-hour format. Displays Zulu Time. A 10-year lithium battery keeps the clock running even if the aircraft battery is removed. Displays an Up Timer. This Timer will start running when the engine is started. In this manner the Timer acts as an automatic Flight Timer. The Up Timer may be started, stopped or reset. A Recurring Alarm may be set to alert you at appropriate time intervals. Example: If the alarm is set for 30 minutes, you will get an alarm at 30 minutes, 60 minutes, 90 minutes, etc. This alarm can be used to remind you to check your fuel level or switch tanks at set time intervals. Displays a Down Timer. This Timer counts down from a programmed start time. The Down Timer may be started, stopped or reset. Warning lights above the LCD display will blink if the Up or the Down Timer times out. Displays an Engine Timer. This Timer acts as a Hobbs Meter. When the engine starts, the Engine Timer will run. The Engine Timer displays total engine time in hours, tenths and hundredths of an hour. E.I. products include all documentation and certifications |
FAA Approval
- The SC-5 can be installed as a minor alteration, with a logbook entry. No certifications or field approvals are required.
Specifications
- Dimensions: 2 1/4" Mount. 3.65" Depth. 10 Oz. Unit.
- Viewable in direct sunlight.
- Backlit for night operation.
- Operates from 7.5 to 35 volts at .3 amps.
Reviews
Verified Purchase
Electronics International Sc 5 Super Clock 2-1/4
Verified Purchase
Electronics International Sc 5 Super Clock 2-1/4
Do not but if you want it to fit in an R66! 2011
Verified Purchase
Electronics International Sc 5 Super Clock 2-1/4
great functionality in a no-frills interface... there are enough interrupts on the unit to suggest a simpler way to adjust the initial time that doesnt involve turning on ships power... only nitpick
Verified Purchase
Electronics International Sc 5 Super Clock 2-1/4
Always as advertised, on time.
This clock does everything. Is a very good value.
Super clock is everything EI claims. I can’t wait to install it and fly with it. Be sure to purchase the LED controller (enables dimming the bright LED’s).
After the installation was complete, it works as advertised. The only issue we had during the installation was that the glare shield interfered with mounting due to the depth of the clock. If you are planning on using this as a replacement, make sure your old clock has the same depth measurements or that the glare shield wont interfere with the mounting process.
An excellent product and excellent service of Aircraftspruce delivered timely to meet the expectations.
This is a great clock and a lot of features for the money, very well made!
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The SC-5 has a built in battery and does not draw any power while the aircraft master is off. Once the avionics bus is turned on it will draw 0.3 amps to run.
It will keep time when the master switch is off but will not show time when the master switch is off so not to drain the aircraft battery.
No. The engine time will only display when power is supplied to the instrument.
This clock has to be sent back to EI for the battery swap. Please call EI to get an RMA number prior to sending it in.
The battery can only replaced by EI. Please contact them directly for instructions on battery replacement.
Yes. The harness is included with the instrument.
Yes, the manufacturer can program current engine time but it must be specified at time of order. Please contact our sales department to special order the EI super clock with preset hours.
The super clock can be dimmed either thru your panel dimmer or, with the electronics international led intensity controller, aircraft spruce part number 10-02035.
Yes, engine time can be set on this part if required. Please contact our sales department to place your order for the SC-5 with the hours set. Hours must be set and special ordered at time of purchase, they cannot be field set.
It will not do this simultaneously. It will only display on timer at a time, and it has separate LED indicators for each timer.
